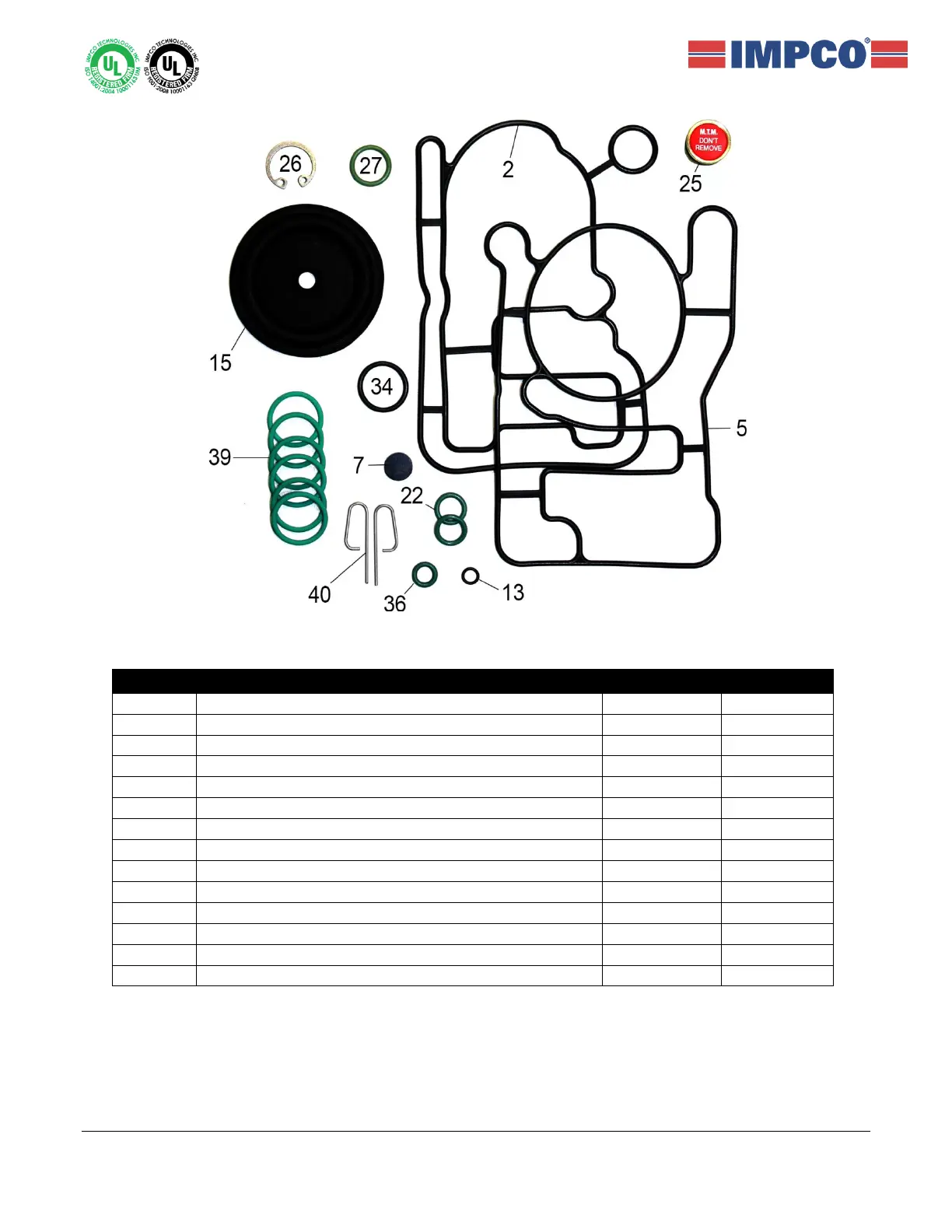

Genius Max Repair Kit Components.
Item#
Description
RK-GMAX-001
RK-GMAX-002
2
Gasket, Bottom, Genius Max
1
1
5
Gasket, Top, Genius Max
1
1
7
Seat, Viton (80 Shore)
1
1
13
O-Ring, Viton, Metric 1mm Cs X 4mm ID
1
1
15
Diaphragm, Genius Max
1
1
22
O-Ring, Fluorocarbon 0.070 Cs X 0.301 I.D.
2
1
25
Valve Subasm, Genius Max
-
1
26
Ring, Retaining, Internal
1
1
27
O-Ring, Fluorocarbon 0.070 Cs X 0.426 I.D.
1
-
34
O-Ring, Fluorocarbon (Fluorel/Viton) 0.07 Cs X .551 I.D.
1
1
36
O-Ring, Fluorocarbon (Fluorel/Viton) 0.070 Cs X .208 I.D.
1
1
39
O-Ring, Fluorocarbon (Fluorel/Viton) 0.070 Cs X .614 I.D.
6
6
40
Pin, Retainer (Part Number P1-30559)
2
2
Not Shown
Repair Kit Instructions, PPI-131
1
1
Note that Valve Subassembly (25) is only included in RK-GMAX-002 which includes O-rings 22 and 27.
