Impco T60 User Manual

Sept, 2019 IMPCO Technologies PPI-68 REV. E
3030 South Susan St. Page 2 of 15
Santa Ana, CA 92704
www.impcotechnologies.com
3030 S Susan Street, Santa Ana, CA 92704
Ph: +1 714 656 1200 Fax: +1 714 656 1400

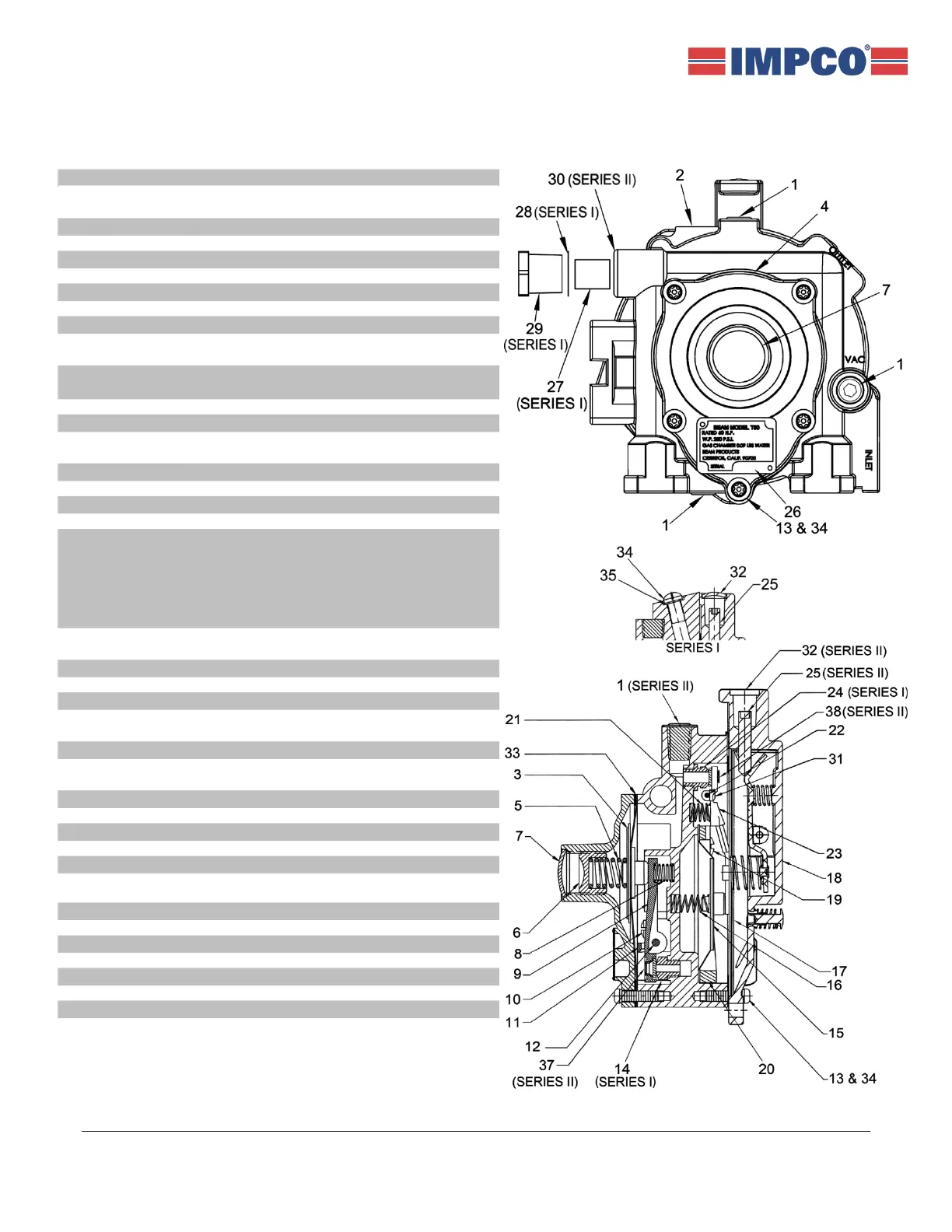

MODEL T60 REGULATORS
Item # P/N DESCRIPTION
P3-13 PLUG, 1/8-27 NPT* (1) (SERIES I)
P3-16699-001
PLUG, 1/8 SOCKET HEAD STEEL (SERIES II)
2 NSS CASTING, REGULATOR BODY
3 NSS DIAPHRAGM ASSEMBLY* (1), (2)
4 NSS COVER, PRIMARY REGULATOR
5 NSS SPRING, PRIMARY* (1)
6 NSS SCREW, RETAINER, ADJUSTABLE SPRING
7 P3-17956-8 PLUG, EXPANSION* (1), (2)
8 60-4 SPRING, PRIMARY LEVER* (1)
LEVER ASSY, PRIMARY* (1), (2) (SERIES I)
LEVER ASSY, PRIMARY (SERIES II)
SCREW, FIL HD, 10-32 UNF-2A x .31 L (SERIES I)
SCREW, M5 x 0.8 7.9 FIL HD, TORX (SERIES II)
11 NSS BRIDGE, PRIMARY
12 NSS PIN, PRIMARY PIVOT* (1)
SCREW, 10-32 x.62 TORX* (1) (SERIES I)
SCREW, TORX TAMP RES M5 X16MM* (1), (2) (SERIES II)
14 NSS ORIFICE, PRIMARY REGULATOR (SERIES I)
15 NSS DIAPHRAGM ASSEMBLY, VACUUM LOCK* (1), (2)
16 NSS SPRING, VACUUM LOCK* (1)
17 NSS DIAPHRAGM, SECONDARY* (1), (2)
COVER ASSY (SERIES I)
COVER ASSY W/PRIMER (SERIES I)
COVER ASSY (SERIES II)
COVER ASSY W/PRIMER (SERIES II)
COVER ASSY, W/PRIMER & MTG TABS (SERIES II)
COVER ASSY, W/MOUNTINGS TABS (SERIES II)
SCREW, PAN HD 10-32 x .38* (1) (SERIES I)
SCREW, TORX TAMP RES M5 X16MM (SERIES II)
20 60-16 RING, VACUUM LOCK
21 NSS SPRING, SECONDARY LEVER* (1)
22 NSS PIN, SECONDARY PIVOT* (1)
LEVER ASSY, SECONDARY* (1), (2) (SERIES I)
LEVER ASSY, SECONDARY (SERIES II)
24 NSS ORIFICE, SECONDARY REGULATOR (SERIES I)
S1-17367 SCREW, ADJUSTMENT (SERIES I)
NSS SCREW, ADJUSTMENT* (1) (SERIES II)
26 NSS LABEL
27 400-25 VALVE, NEOPRENE* (1), (2) (SERIES I)
28 NSS WASHER, COPPER* (1), (2) (SERIES I)
29 NSS PLUG, WATER CORE (SERIES I)
30 NSS PLUG, FREEZE .50 DIS. X .38* (1)(SERIES II)
SCREW, PAN HD, 10-32 UNF-2A X .25 L* (1) (SERIES I)
SCREW, TORX TAMP RES M5 X16MM* (1) (SERIES II)
32 P3-17956-1 PLUG, EXPANSION* (1), (2)
33 NSS GASKET, DIAPHRAGM* (1), (2)
34 W1-5 WASHER, SPLIT LOCK* (1) (SERIES I)
35 NSS SCREW, FIL HD 1/4-28 UNF-2A* (1) (SERIES I)
36 NSS WASHER, COPPER-SPECIAL (SERIES I)
37 NSS SEAT, T60* PRIMARY (1), (2) (SERIES II)
38 NSS SEAT, T60* SECONDARY (1), (2) (SERIES II) WHITE DOT
NSS
31
NSS
NSS
NSS
19
25
23
18
1
NSS
10
NSS
13
NSS
9
NSS=Not Sold/Serviced Separately
*Repair Kit. (1)=T60-RBK; (2)=T60-RK
Note that some components will vary among the different
T-60 Models.
