STEP 11 (See Diagram 11)
A.) Attach a Butterfly Arm Pad (#24) to the Right Butterfly Arm (#14). Secure it with two M8 x
2” Allen Bolts (#74) and ∅ 5/8” Washers (#52). Repeat the same procedure to install the
other side.
B.) Attach the Backrest Board (#23) to the Front Upper Vertical Frame (#5). Secure it with two
M8 x 2 1/8” Allen Bolts (#49) and ∅ 5/8” Washers (#52).
C.) Attach the Seat Pad (#22) to the Main Seat Support (#7). Secure it with two M8 x 2 1/8” Allen
Bolts (#49) and ∅ 5/8” Washers (#52).
D.) Attach the Arm Curl Pad (#25) to the Arm Curl Stand (#67). Secure it with two M8 x 5/8”
Allen Bolts (#50) and ∅ 5/8” Washers (#52).

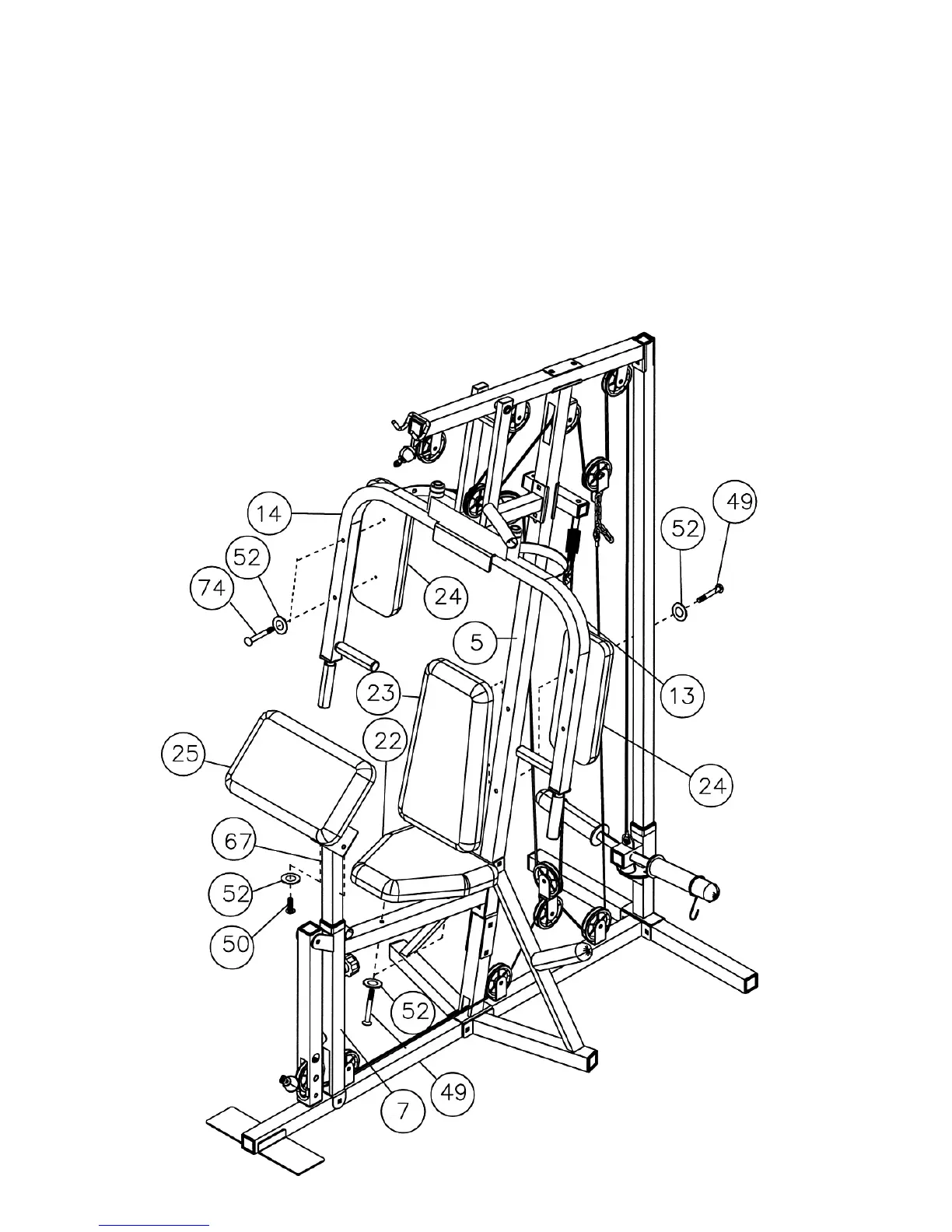

DIAGRAM 11
19
