ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches, two Allen Wrenches,
and one Flat Head Screwdriver.
NOTE: It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Main Base Frame (#6) and Rear Lower Vertical Beam (#81) to the Rear Stabilizer
(#3). Align the holes then secure them with two M10 x 2 ½” Carriage Bolts (#42), ∅ ¾”
Washers (#53), and M10 Aircraft Nuts (#55).
B.) Attach the Rear Upper Vertical Beam (#1) to the Rear Lower Vertical Beam (#81). Secure it
with four M10 x ¾” Carriage Bolts (#83), ∅ ¾” Washers (#53), and M10 Aircraft Nuts (#55).
C.) Attach the Rubber Bumper (#38) to the Rear Upper Vertical Beam (#1). Secure it with one M6
x 5/8” Philips Screw (#41).

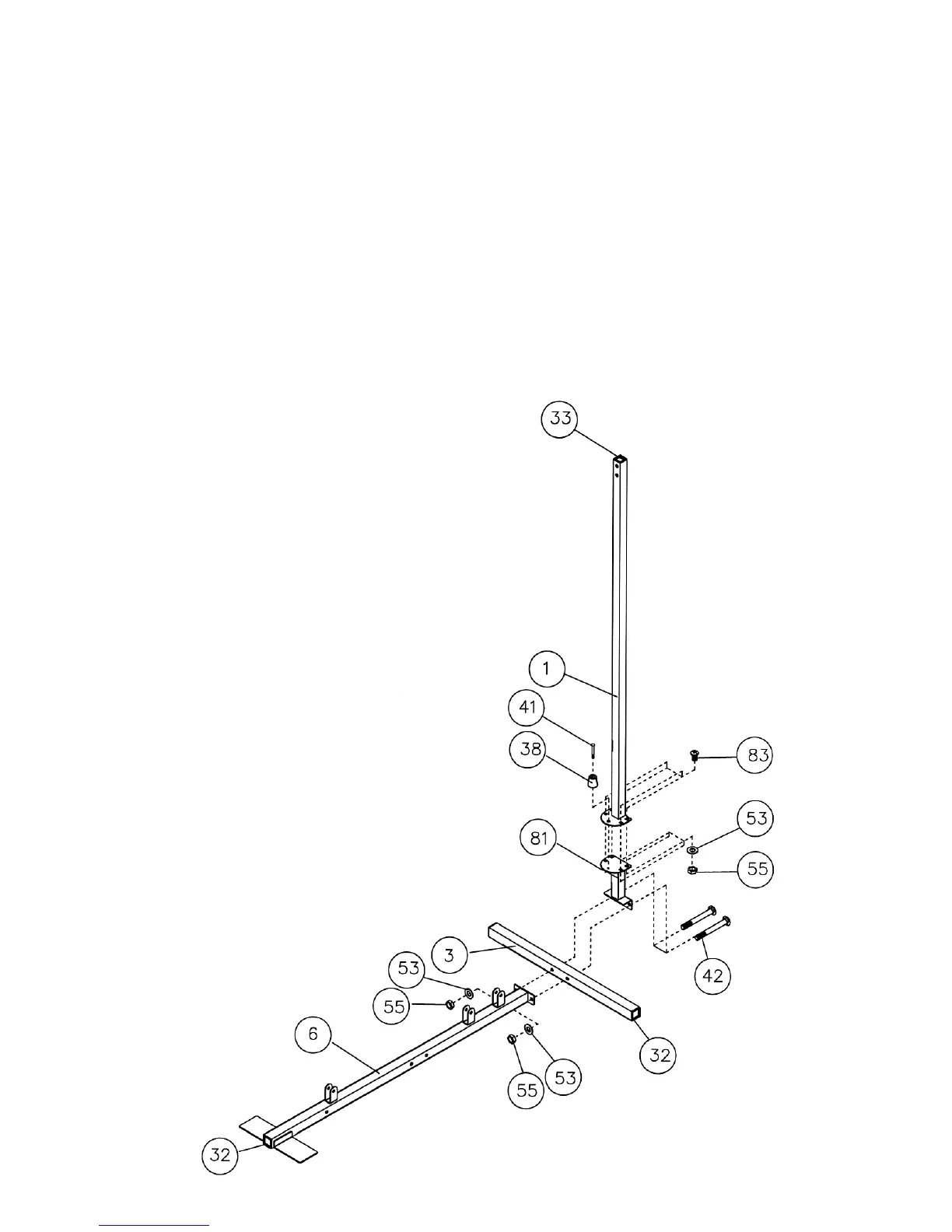

DIAGRAM 1
6
