(#73). Secure it with a M10 x 1 ¾” Allen Bolt (#105), two ∅ ¾” Washers (#127), and one M10
Aircraft Nut (#132).
B.) Pull the Cable downward and install a Pulley (#73) and Single Floating Pulley Bracket (#36).
Secure it with a M10 x 1 ¾” Allen Bolt (#105), two ∅ ¾” Washers (#127), and one M10 Aircraft
Nut (#132). Let the Bracket hang for now.
C.) Pull the Cable upward back to the Butterfly Pulley Support (#15). Install another Pulley (#73)
and secure it with a M10 x 1 ¾” Allen Bolt (#105), two ∅ ¾” Washers (#127), and one M10
Aircraft Nut (#132).
D.) Draw the Cable to the Butterfly Pulley Bracket (#16) on the other side. Secure the end of the
Cable to the Clip.

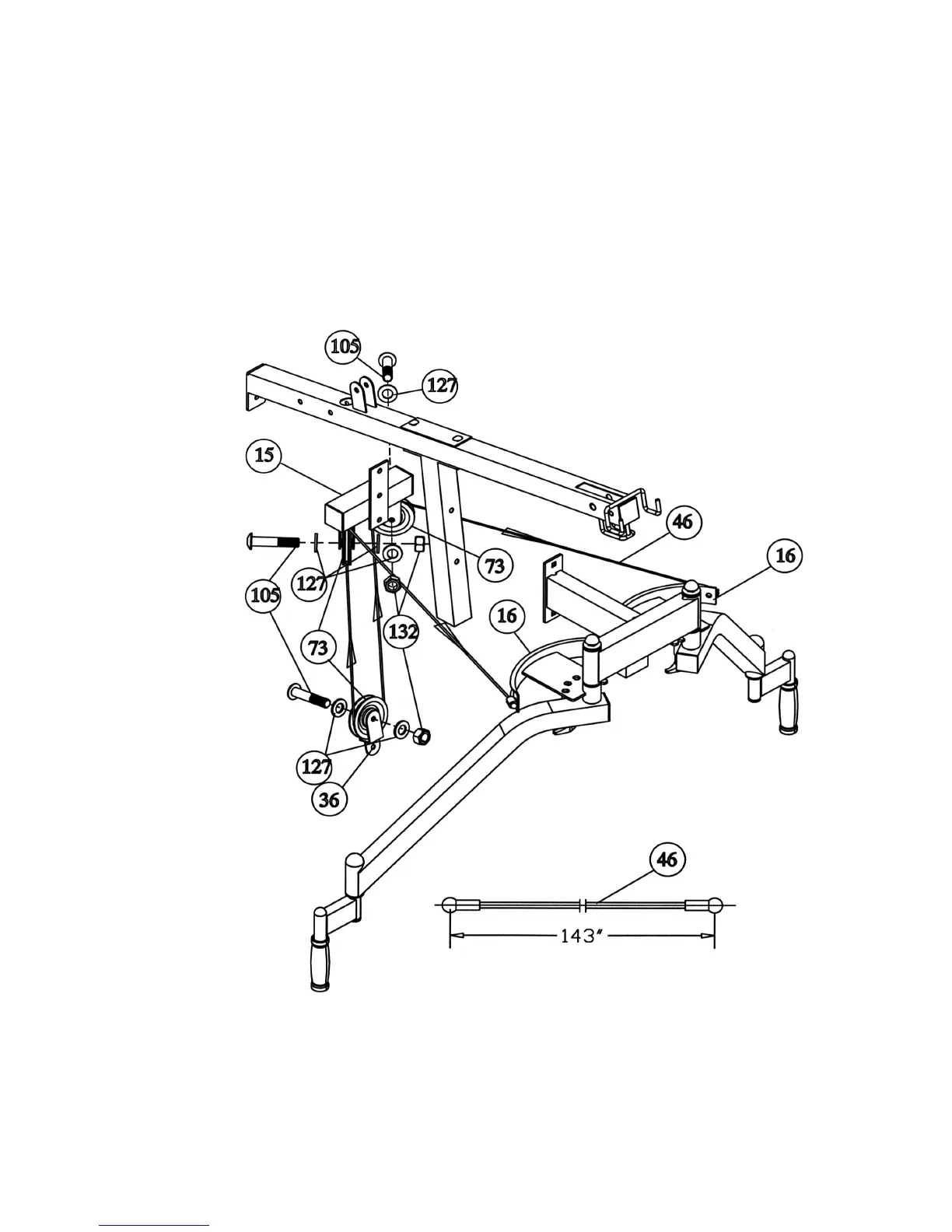

DIAGRAM 8
11
STEP 8 (See Diagram 7 & 9)
