Impex MACH IV - Page 9

A.) Attach the Bench Press Base (#13) to the opening on the Rear Vertical Beam (#5). Carefully
place two ∅1 ½” Washers (#94) in between the Base (#13) and the Vertical Beam (#5). Align
the holes and insert a ∅1” x 8” Axle (#33). Secure both sides with two ∅1 ½ Washers (#74)
and M12 Aircraft Nuts (#131). Close both ends with two Round Caps (#130).
B.) Attach four ∅1” Bushings (#70) to the openings on the Bench Press Frame (#12). Then attach
the Bench Press Frame (#12) to the Bench Press Base (#13). Align the holes and insert a ∅1”
x 12 ½” Axle (#34). Secure both sides with two ∅1 ½” Washers (#74) and M12 Aircraft Nuts
(#131). Close both ends with two Round Caps (#130).
C.) Lubricate the inside of the Foam Grips (#68) with water then slide them onto the Bench Press
Frame (#12).
D.) To adjust the Bench Press Arm, simply squeeze down the break handle on the right side of the
Press Arm.

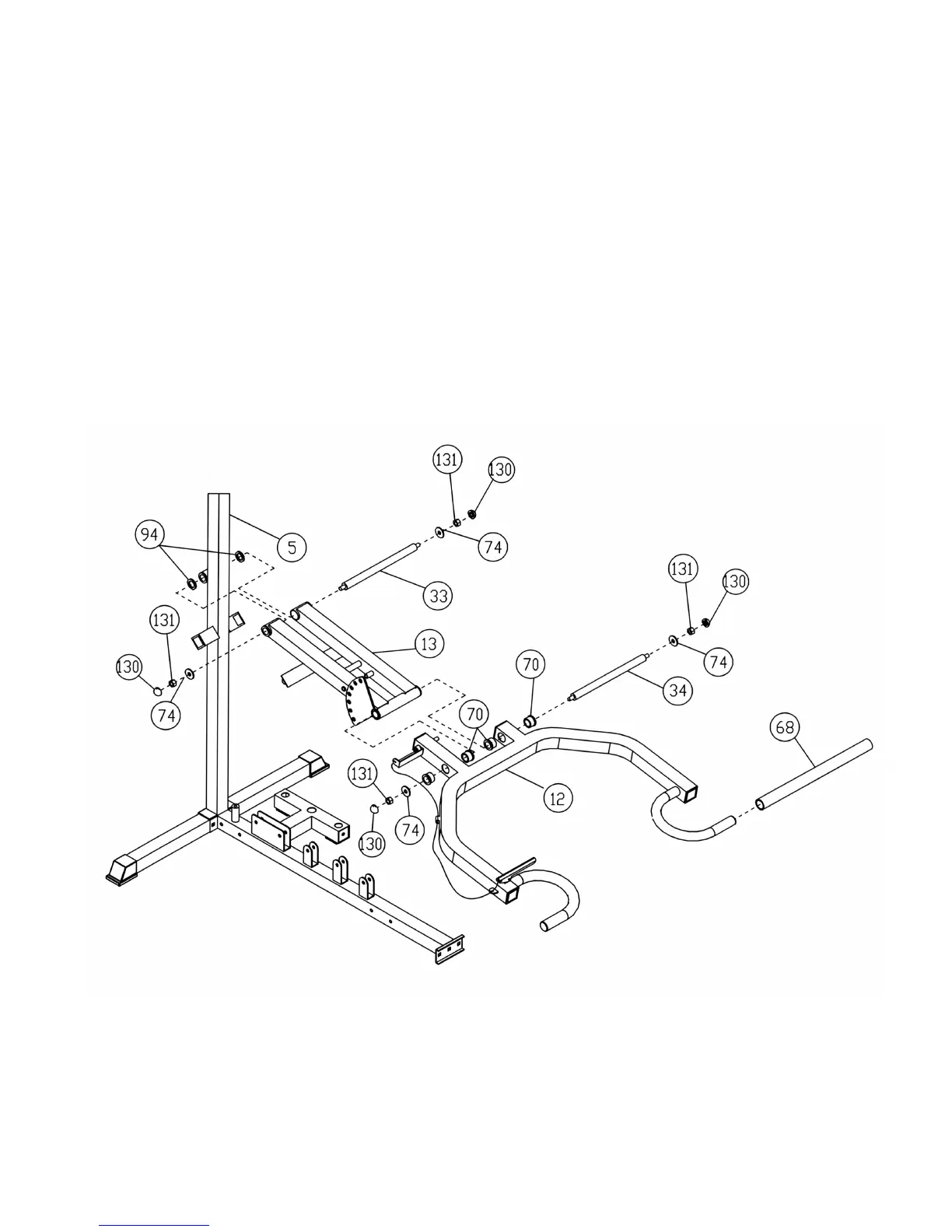

DIAGRAM 5
8
STEP 6 (See Diagram 6)
