ASSEMBLY INSTRUCTION
• Tools Required For Assembly: Two adjustable wrenches and one Allen Wrench.

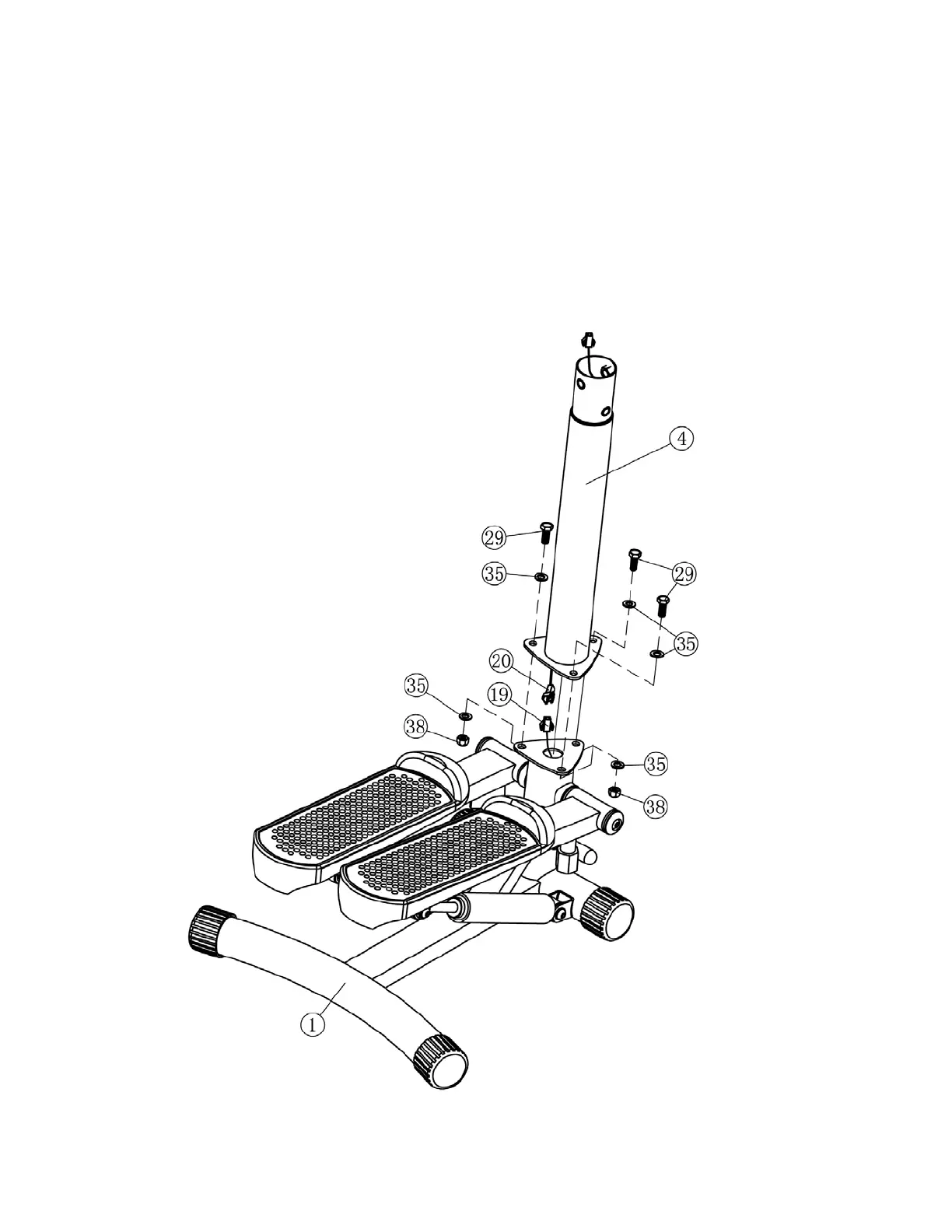

STEP 1 (See Diagram 1)
A.) Connect the Magnet Sensor Wire (#19) from the Base Frame to the Computer Sensor
Wire (#20) from the Lower Front Post (#4).
B.) Attach the Lower Front Post onto the Base Frame. Secure it with three M8 x ¾” Hex
Bolts (#29), six Ø ⅝” Washers (#35), and three M8 Aircraft Nuts (#38).
To Next Page
