MULTIPURPOSE BENCH ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended this machine be assembled by two or
more people to avoid possible injury.
STEP 1 (See Diagram 1)
C.) Attach the Main Frame (#1) to the Front & Rear Stabilizers (#2 & 3). Secure each end with
two M10 x ¾” Allen Bolts (#36) and ∅ ¾” Washers (#42). Attach a Lock Knob (#23) to the
hole underneath the Main Frame.
D.) Slide the Sliding Block (#8) onto the Incline Adjustment Bar (#9). Align the hole then secure
it with a Knob Lock (#23) to hold the Sliding Block in position.
E.) Attach the Incline Adjustment Bar to the brackets on the Main Frame. Secure each end with
one M10 x 2 ½” Carriage Bolt (#35), ∅ ¾” Washer (#42), and M10 Aircraft Nut (#44).

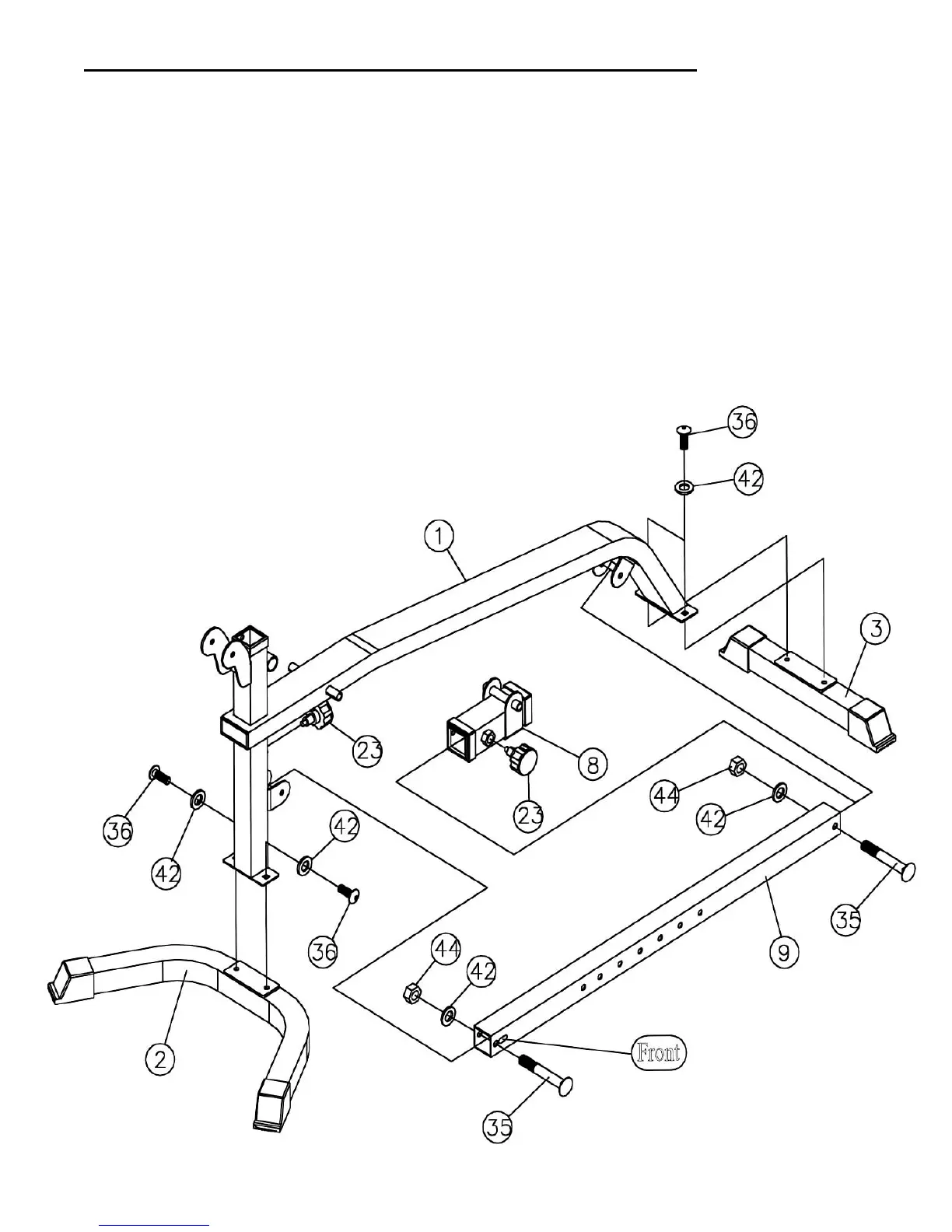

DIAGRAM 1
21
