SMITH MACHINE ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the two Base Frames (#1) by a Cross Brace (#2) in the mid-span. Secure
each end of The Cross Brace with two M10 x 3 ½” Carriage Bolts (#79), one 4 ¾” x
2” Bracket (#36), two Ø ¾” Washers (#66), and two M10 Aircraft Nuts (#86).
B.) NOTE: DO NOT tighten the Nuts and Bolts yet.

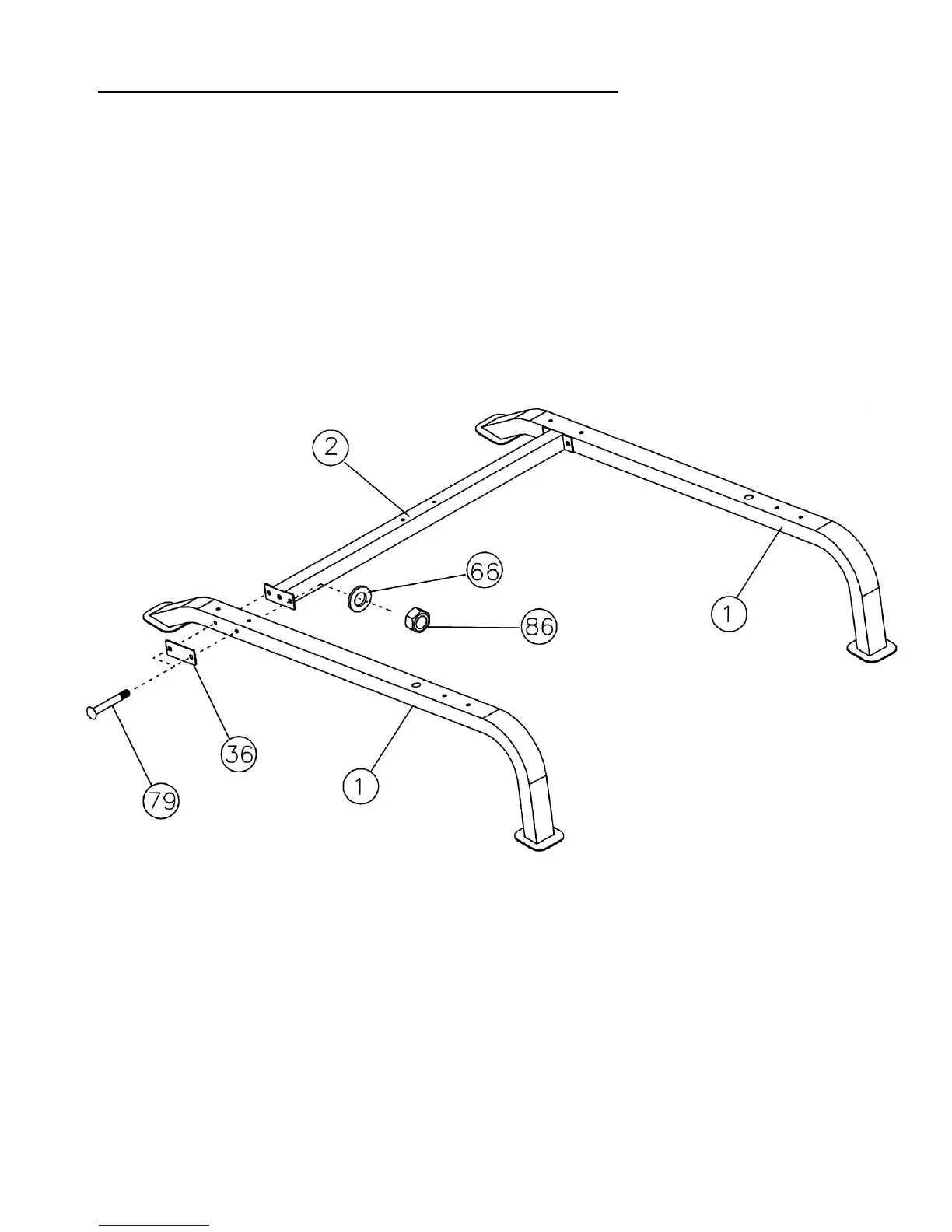

DIAGRAM 1
6
