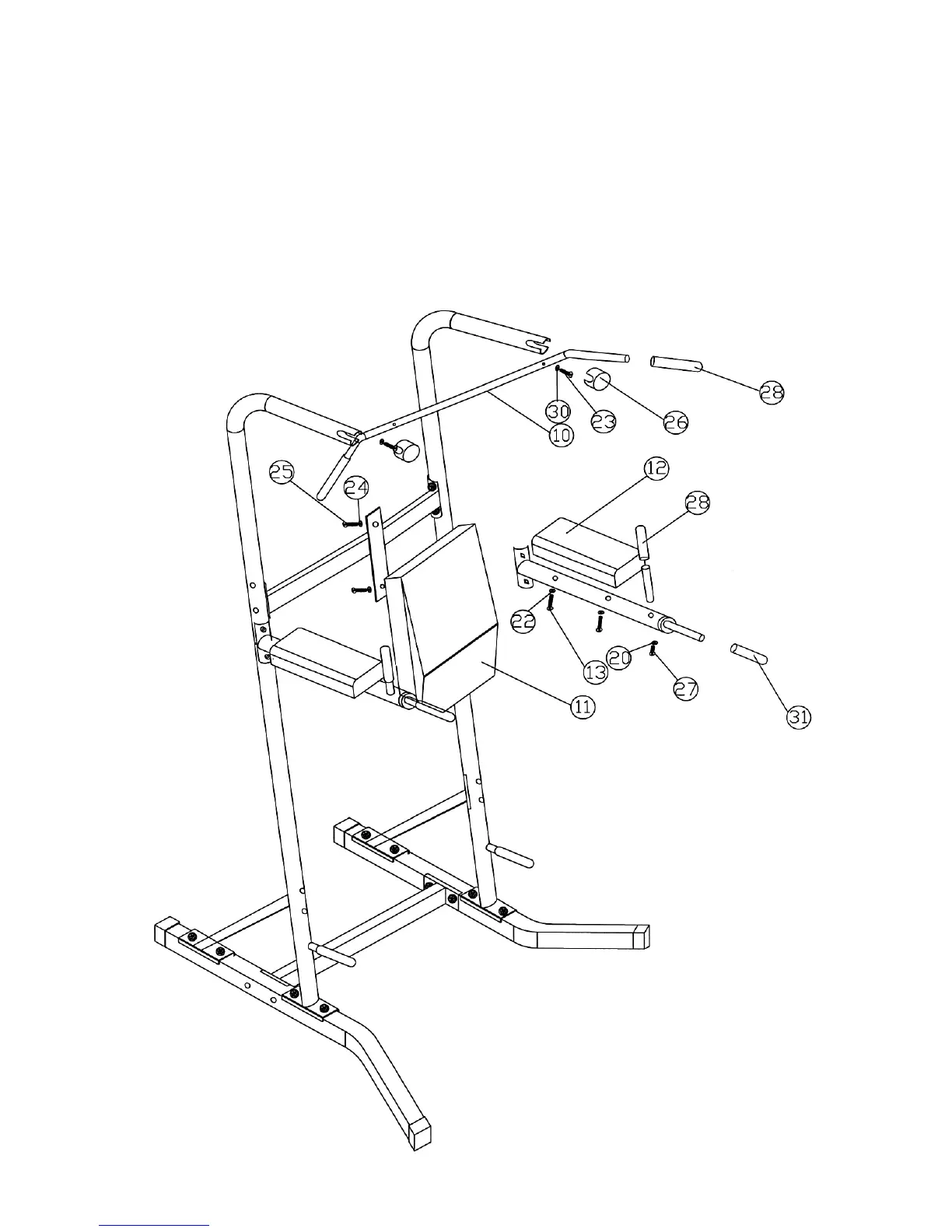

STEP 3 (See Diagram 3)
A.) Attach the Chin-up Bar (#10) to the top opening on the two Upper Upright Beams. Secure
the Chin-up Bar to each opening with one M8 x 1 5/8” Allen Bolt (#23) and Ø ½” Bent
Washer (#30). Cover each opening with an Upright Beam End Cap (#26).
B.) Attach the two Arm Pads (#12) onto the Dip Supports. Secure each Arm Pad with two M8 x
2 ¾” Allen Bolts (#13) and Ø 5/8” Bent Washers (#22).
C.) Attach the Backrest Board (#11) to the Cross Brace (#7). Secure it with two M8 x ¾” Allen
Bolts (#25) and Ø 5/8” Washers (#24).
D.) Securely tighten all Nuts and Bolts previously installed.
8
