ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Left and Right Base Frame (#1 & #2) with the Stabilizer (#3) in the mid-span.
Secure each end with two M10 x 2 ½” Carriage Bolts (#16), ∅ ¾” Washers (#14), and M10
Aircraft Nuts (#15). Do NOT tighten the Nuts and Bolts yet.
B.) Attach a Lower Upright Beam (#5) onto the Right Stabilizer (#2). Secure it with two M10 x 2 ½”
Carriage Bolts (#16), ∅ ¾” Washers (#14), and M10 Aircraft Nuts (#15). Repeat the same
procedure to install the other side.

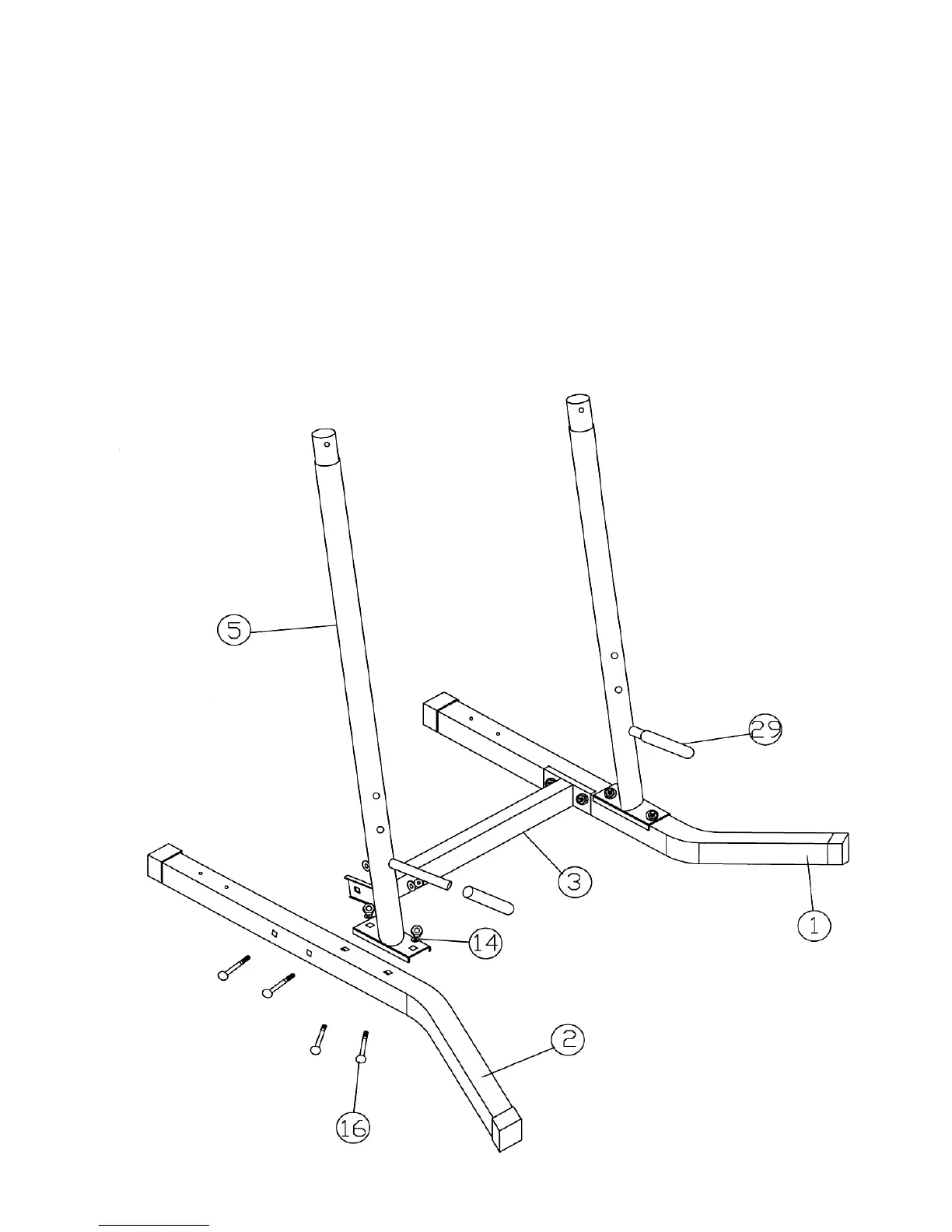

DIAGRAM 1
5
To Next Page
