STEP 6 (See Diagram 6)
A.) Connect the two Rear Upright Beams (#48) by a Rear Stabilizer (#53). Secure each end
with one M10 x 3 ¾” Carriage Bolt (#83) to the upper hole, one M10 x 3 3/8” Allen Bolt
(#82) to lower hole, one 4” x 2” Bracket (#64), two ∅ ¾” Washers (#42), and one M10
Aircraft Nut (#44). Do not tighten all the nuts and bolts yet.
B.) Attach the upper end of a Rear Upright Beam (#48) to an Upright Beam (#47). Secure it
with one M10 x 3 ¾” Carriage Bolt (#83), ∅ ¾” Washer (#42), and M10 Aircraft Nut (#44).
Repeat the same procedure to install the other side.

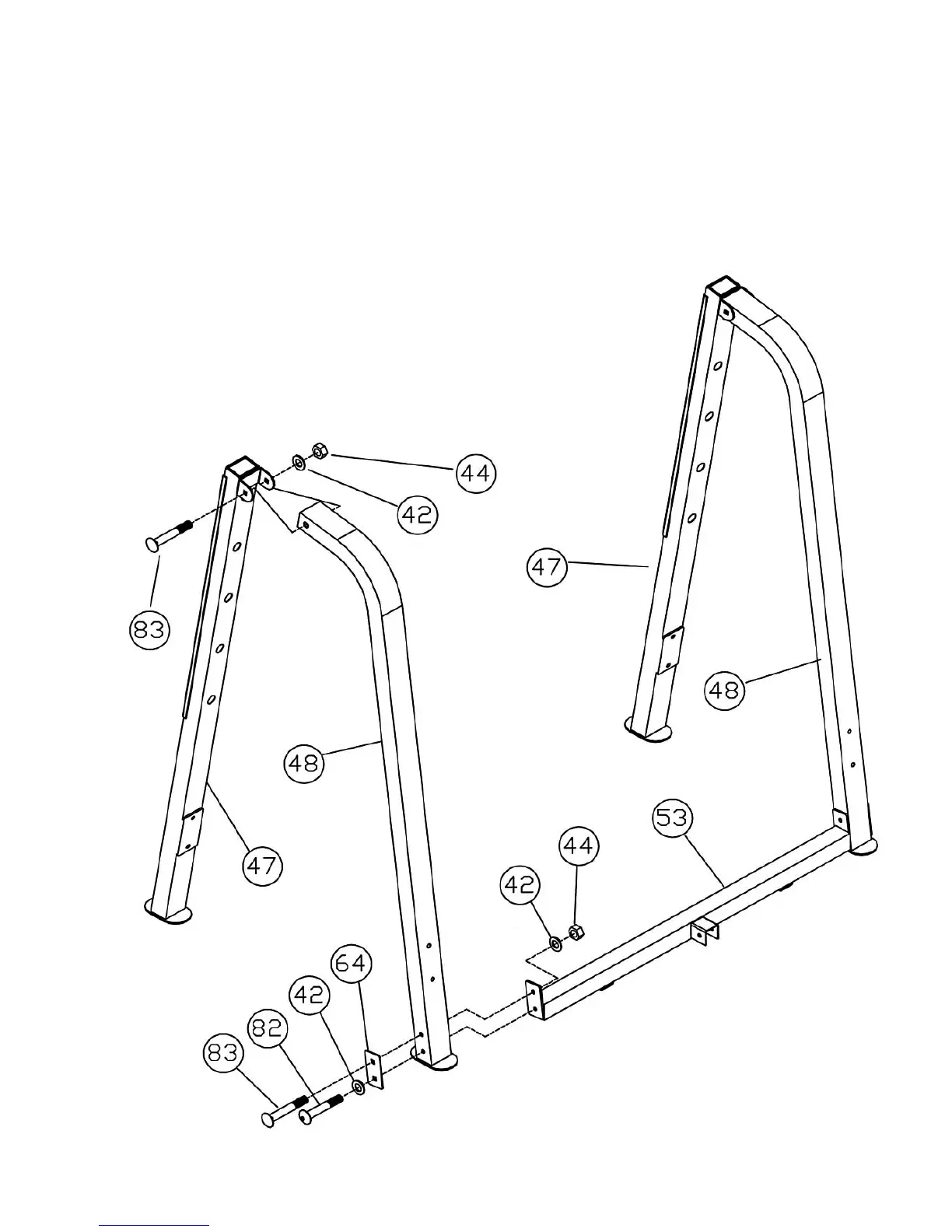

DIAGRAM 6
