Impex PHC-PWR9 - STEP 3

STEP 3 (See Diagram 3)
A.) Place the Backrest Board (#14) onto the Backrest Supports (#7). Secure it with four M8
x 2” Allen Bolts (#40) and ∅ 5/8” Washers (#43).
B.) Place the Seat Pad (#13) onto the Seat Support Frames (#6). Secure it with four M8 x
2” Allen Bolts (#40) and ∅ 5/8” Washers (#43).

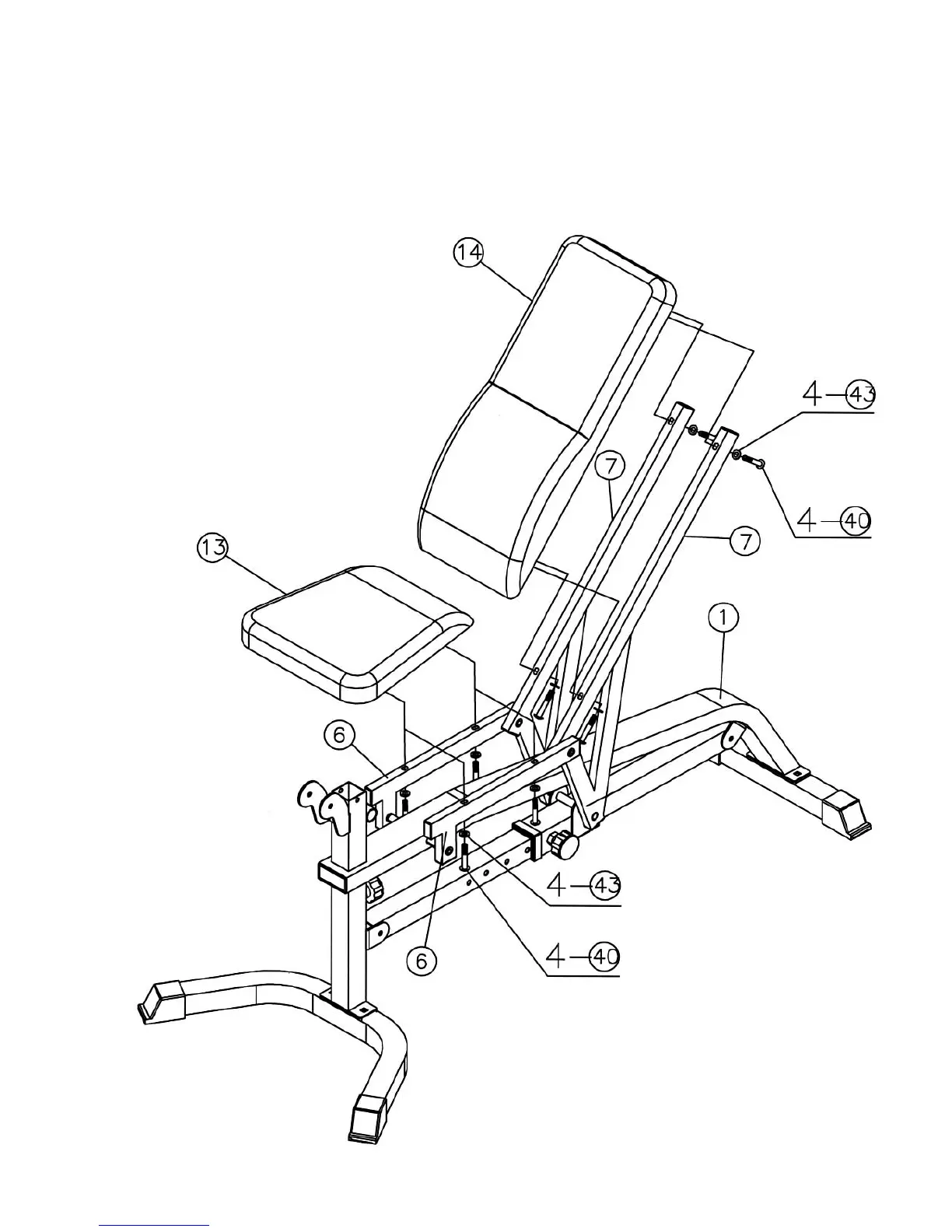

DIAGRAM 3
7
