Impex PWR 8 - Page 20

STEP 3 (See Diagram 3)
A.) Place the Backrest Board (#14) onto the Backrest Supports (#7). Secure it
with four M8 x 2” Allen Bolts (#39) and ∅ 5/8” Washers (#42).
B.) Place the Seat Pad (#13) onto the Seat Support Frames (#6). Secure it
with four M8 x 2” Allen Bolts (#39) and Ø 5/8” Washers (#42).

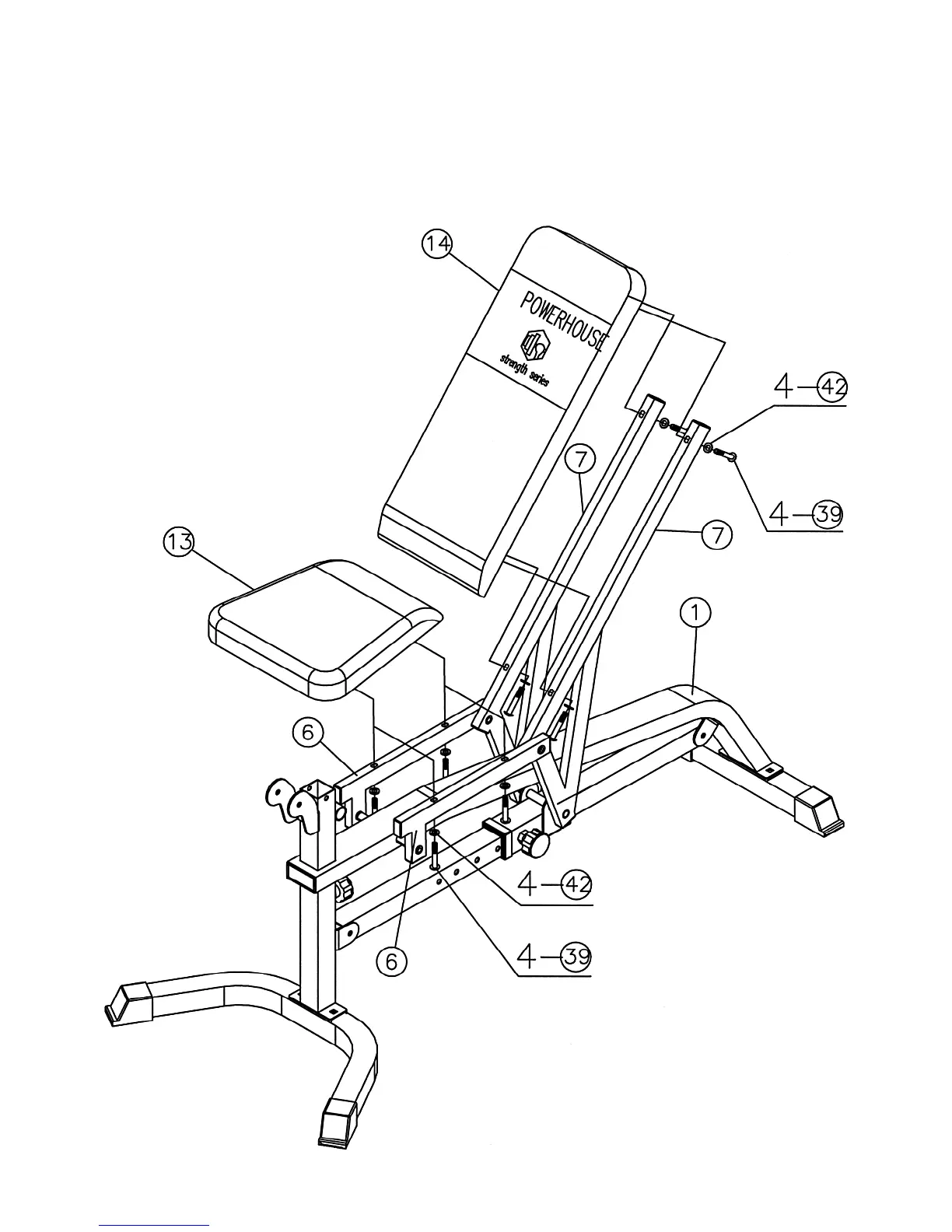

DIAGRAM 3
19
