5

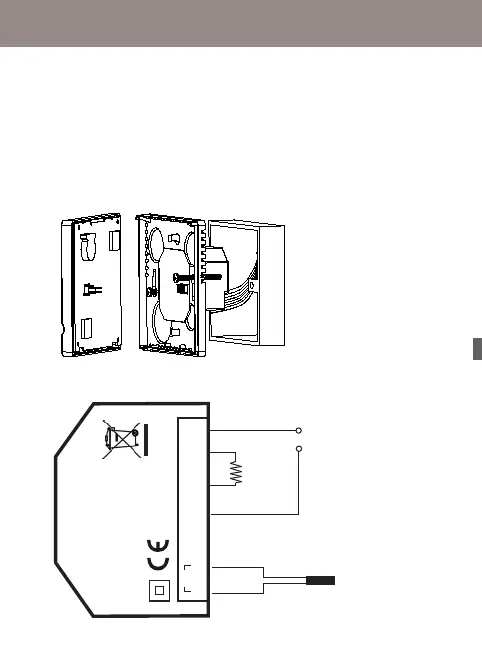

Installing and wiring the thermostat
To mount the thermostat to the wall box/wall socket, rst open the
thermostat by gently pushing the tabs in the bottom of the thermo-
stat. To x the thermostat, screw in properly sized screws into the
wall socket/wall box. When installing the thermostat, DO NOT apply
direct pressure to the thermostat display.
When properly fastened and cables connected (see diagram below),
mount the frontpanel to the backpart again.
Electrical wall
box/socket
Wiring diagram
Remote sensor
Mains voltage: 85-240V~
raIP ting: IP30
S1
L
Load
S2
L
N
Load
N
13A
Max. load:
Temperature: 0T30
85-240V~
Max
13A
