XTT301-0-0-GB-20
March 2019
Page 7
Connecting the Impro Antenna Readers
Figure 3 to Figure 7 show detailed connection diagrams for the Antenna Readers:

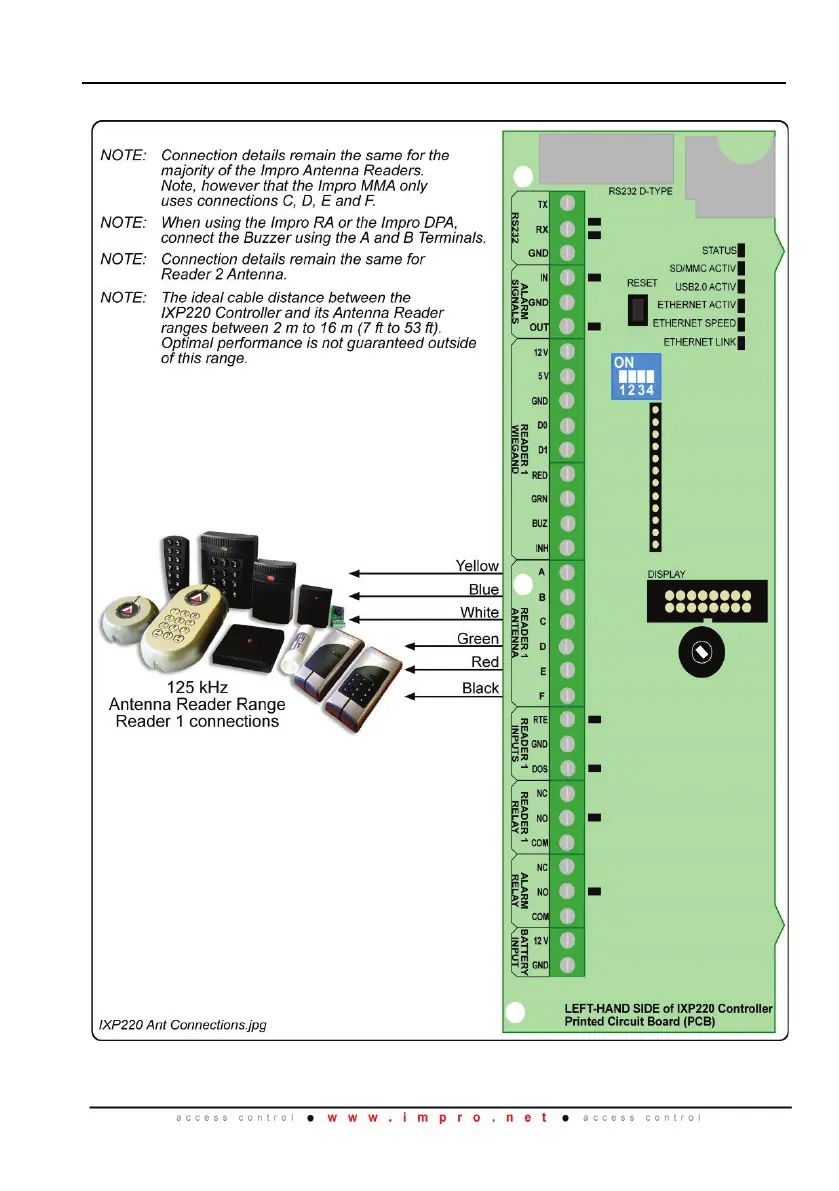

Figure 3: Impro Antenna Reader Connected to the IXP220 Controller
