q

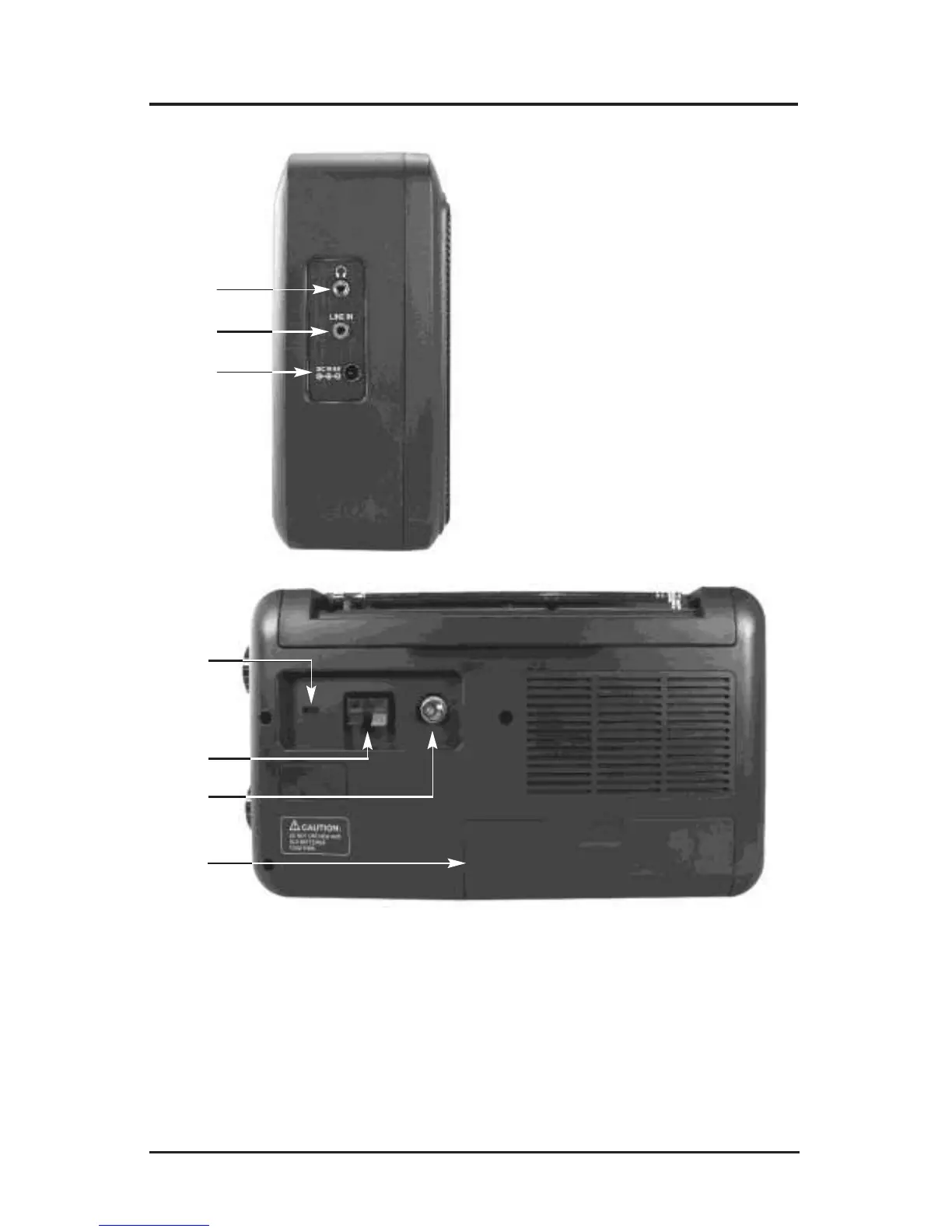

HEADPHONE
J
a
c
k
Use for private listening with
optional headphones or
earbuds. Can also be used
q
as an audio output for an
optional recording device or
w
to connect amplified speak-
ers.
w
LINE INPUT
J
a
c
k
For connecting a portable
music player or other device
which would use radio as
speaker.
e
POWER
J
a
c
k
Use to connect AC Adapter
for continuous power to radio.
r
t
y
u
r
ANTENNA SELECTION
S
wi
t
c
h
Normally keep it set to
“ Internal” except when an
external antenna is used.
t
EXTERNAL AM ANTENNA
CONNECTION AND GROUND
Connect and ground an
external
AM antenna.
y
EXTERNAL FM ANTENNA
CONNECTION
Connect an external FM
antenna.
u
BATTERY COMPARTMENT
For portable use of the radio,
insert four 4D” cell
batteries.
