Mainframe Assembly

─ 21 ─

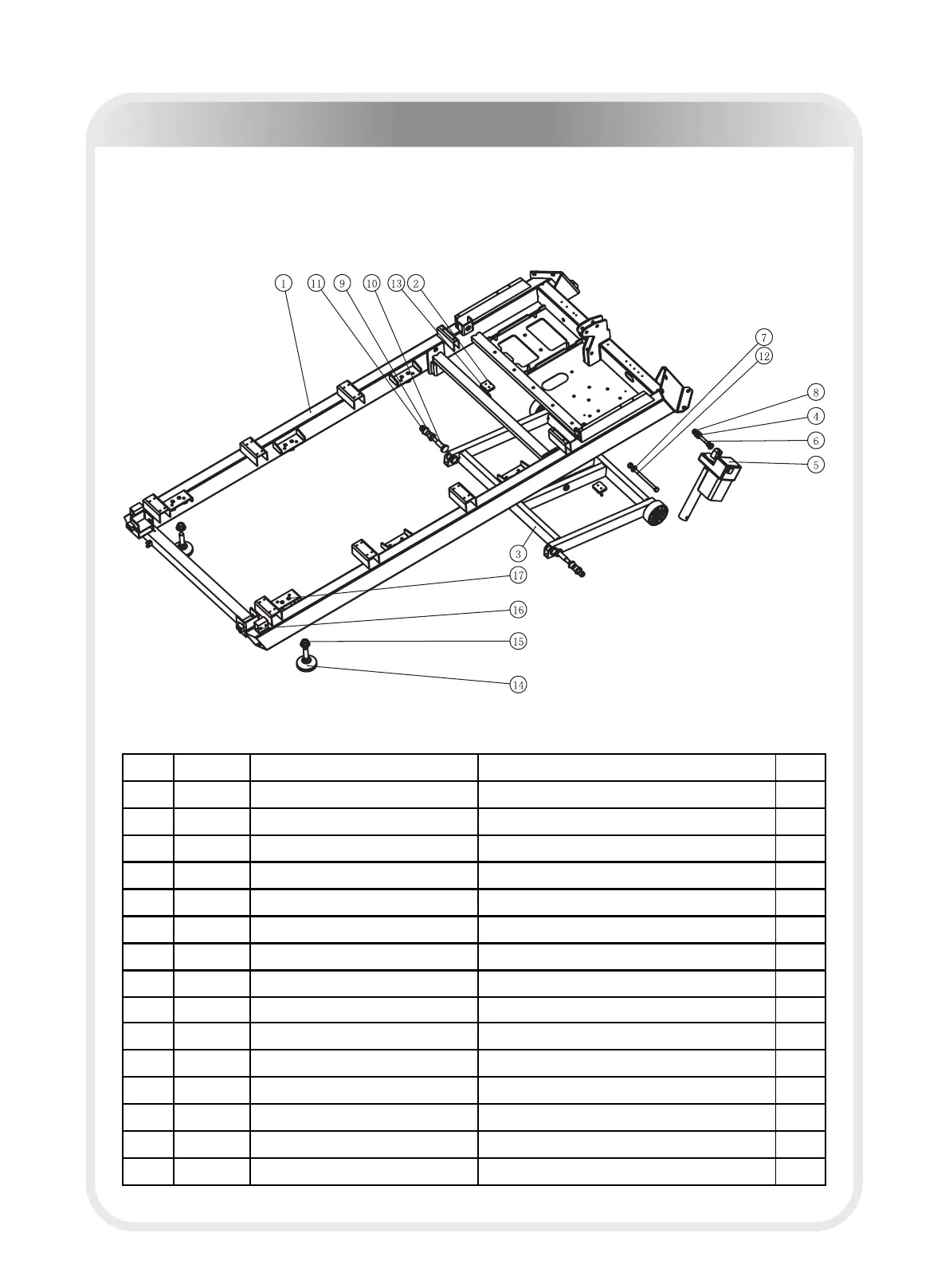

Parts List and Exploded View

ItemNo.

Grade No. Part No. Description QTY

1 5.1.1 AC29900600 Deck Frame 1

2 5.1.2 DC1600A9200 Ground bumper 2

3 5.1.3 AC299007ASSY Inverter Frame ASSY 1

4 5.1.4 FLPSR-5500 Teflon washer 2

5 5.1.5 R15-22M-RDS Actuator 1

6 5.1.6 GB5780M10*45DS20 Hex Head Bolt M10*45 1

7 5.1.7 DQ10DS2A Washer Washer Φ11*Φ23*2 2

8 5.1.8 NM10DS2 Locknut M10 2

9 5.1.9 L1-6800 Neck bush 4

10 5.1.10 RT7001900 Platform bolt M12 2

11 5.1.11 NM12DHS2 Locknut M12 2

12 5.1.12 GB5780M10*130DS20 Hex Head Bolt M10*130 1

13 5.1.13 GB845ST4.2*16DS Phillip Screw ST4.2*16 4

14 5.1.14 STDP3400 Adjust Support 2

15 5.1.15 GB6177M16DS2 Hex flange nut M16 2
