─ 10 ─

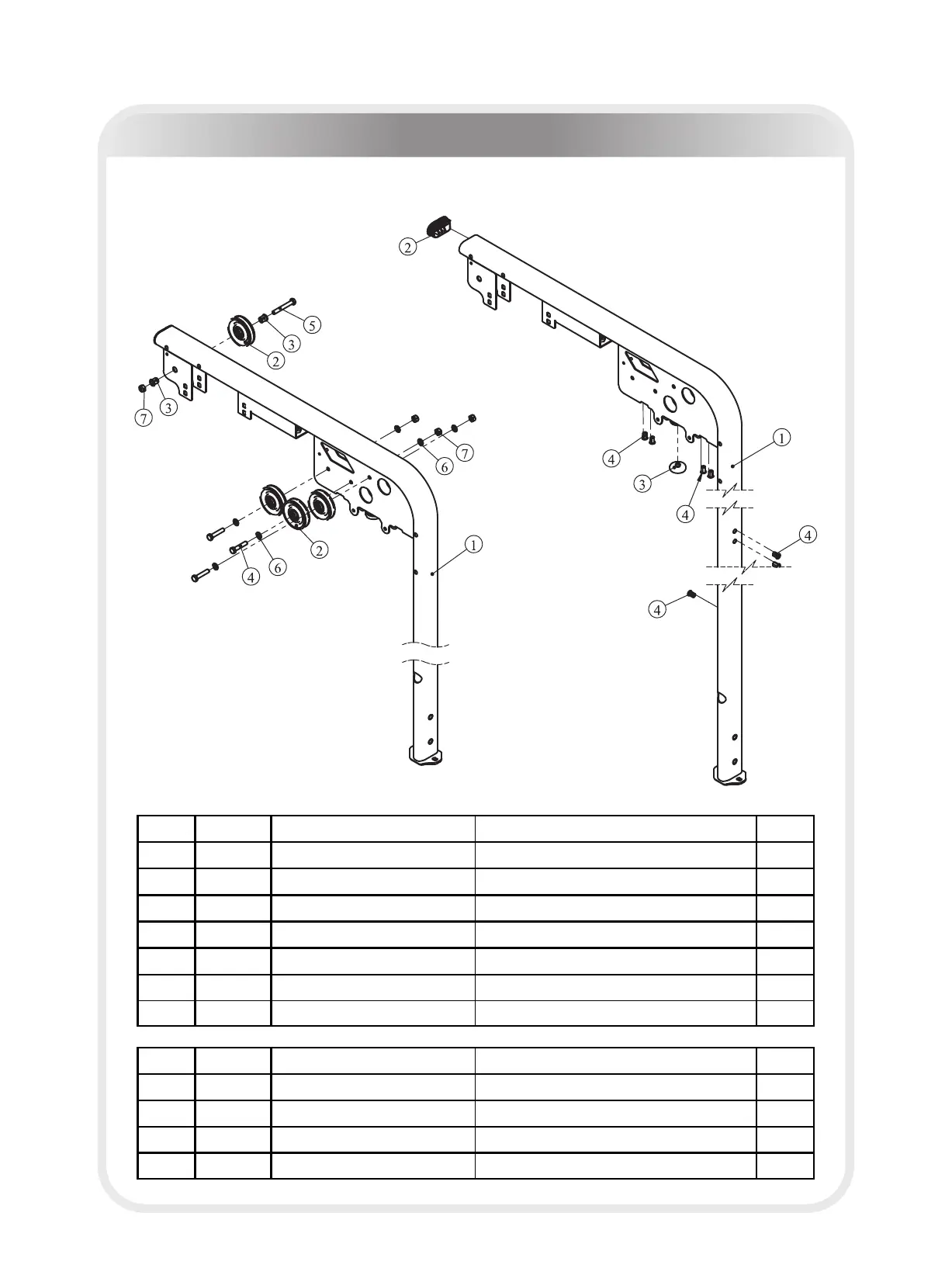

Exploded View and Parts List
Right Standing
Frame Ⅱ ASSY
Right Standing
Frame Ⅰ ASSY
ItemNo.
Grade No. Part No. Description QTY
1 2.1.1 ES21000200 Right Standing Frame 1
2 2.1.2 026-01PL2565 Plug 1
3 2.1.3 TLP-2002100 Cushion 1
4 2.1.4 GB17880.5M8*16.5DCS17 Rivet nut M8*16.5 7
ItemN o.
Grade No. Part No. Description QTY
1 2.1 ES21000200ASSY Right Standing Frame ⅠASSY 1
2 2.2 M01004800V7 3.5" Pulley 4
3 2.3 PS10002000 Spacer Sleeve Φ20*Φ10.5*18.5 2
4 2.4 GB5780M10*45DS20 Hex Head Bolt M10*45 3
5 2.5 GB5780M10*75DS20 Hex Head Bolt M10*75 1
6 2.6 GB9510DS2 Flat Washer Φ11*Φ20*2 6
7 2.7 NM10DS2 Nylon Lock Nut M10 4
