─ 15 ─

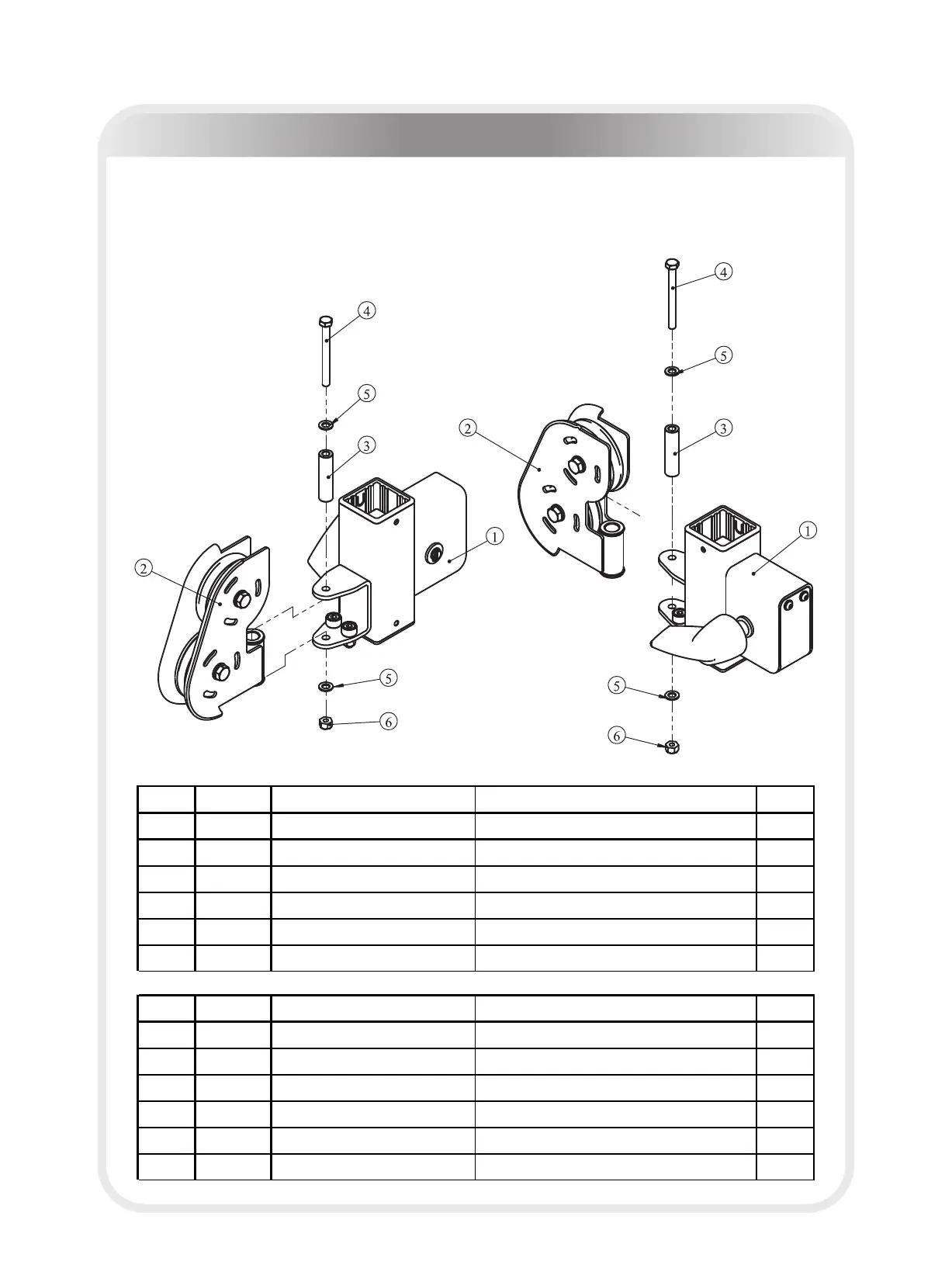

Exploded View and Parts List
Right Pulley Frame
ASSY
Left Pulley Frame
ASSY
ItemN o.
Grade No. Part No. Description QTY
1 18.1 ES20000800ASSY Right Sliding Frame ASSY 1
2 18.2 ES20003800ASSY Swing Frame ASSY 1
3 18.3 IT95251800 Axis 1
4 18.4 GB5780M8*85DS20 Hex Head Bolt M8*85 1
5 18.5 GB958DS2 Flat Washer φ9*φ16*1.6 2
6 18.6 NM8DS2 Nylon Lock Nut M8 1
ItemN o.
Grade No. Part No. Description QTY
1 19.1 ES20000900ASSY Left Sliding Frame ASSY 1
2 19.2 ES20003800ASSY Swing Frame ASSY 1
3 19.3 IT95251800 Axis 1
4 19.4 GB5780M8*85DS20 Hex Head Bolt M8*85 1
5 19.5 GB958DS2 Flat Washer φ9*φ16*1.6 2
6 19.6 NM8DS2 Nylon Lock Nut M8 1
