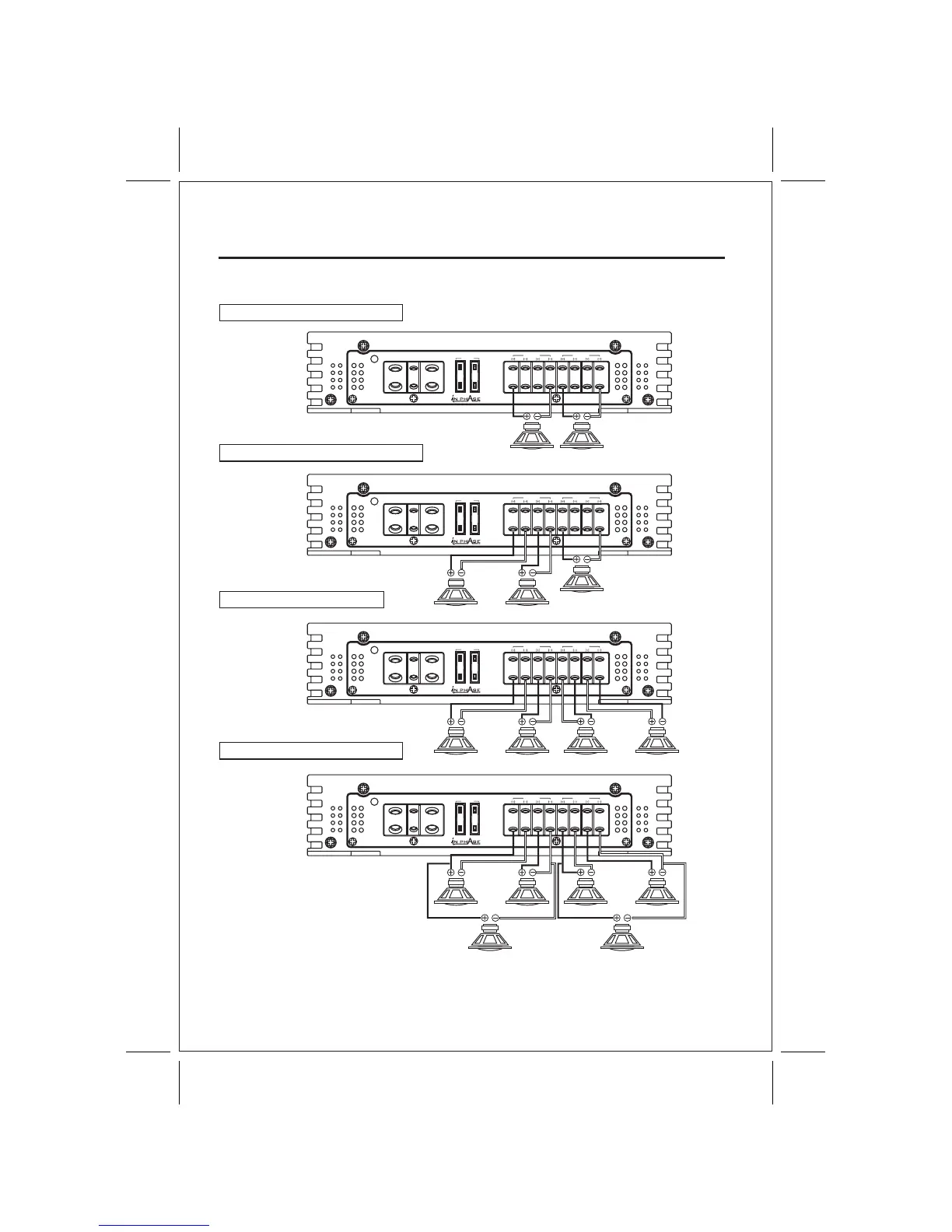

SCHEMA ELETTRICO ALTOPARLANTE A 4 CANALI
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
10
SUB WOOFER
3 CH
4-8 Ohms
2 CH 1CH
2-4 Ohms
2-4 Ohms
4 CH
4-8 Ohms
5 CH
4-8 Ohms
6 CH
4-8 Ohms
4-8 Ohms
1 CH 2 CH
3 CH
2 CH 1CH
4 CH
3 CH
2 CH 1CH
ill.3
2 ALTOPARLANTI STEREO
2 ALTOPARLANTI + SUBWOOFER
4 ALTOPARLANTI STEREO
6 ALTOPARLANTI HEX-MODE
COLLEGAMENTI ALTOPARLANTI
