6.
Check the setting dimension between the spindle nose end face (5) and the
base body (1) against the size 18
+0.35
mm (in “Clamp open” position). Observe
the installation position.
Alternatively, the following procedure can be used!
If the installation dimension is not correct, turn the base body forward or
backward, until the setting dimension is achieved. Observe the installation
position.

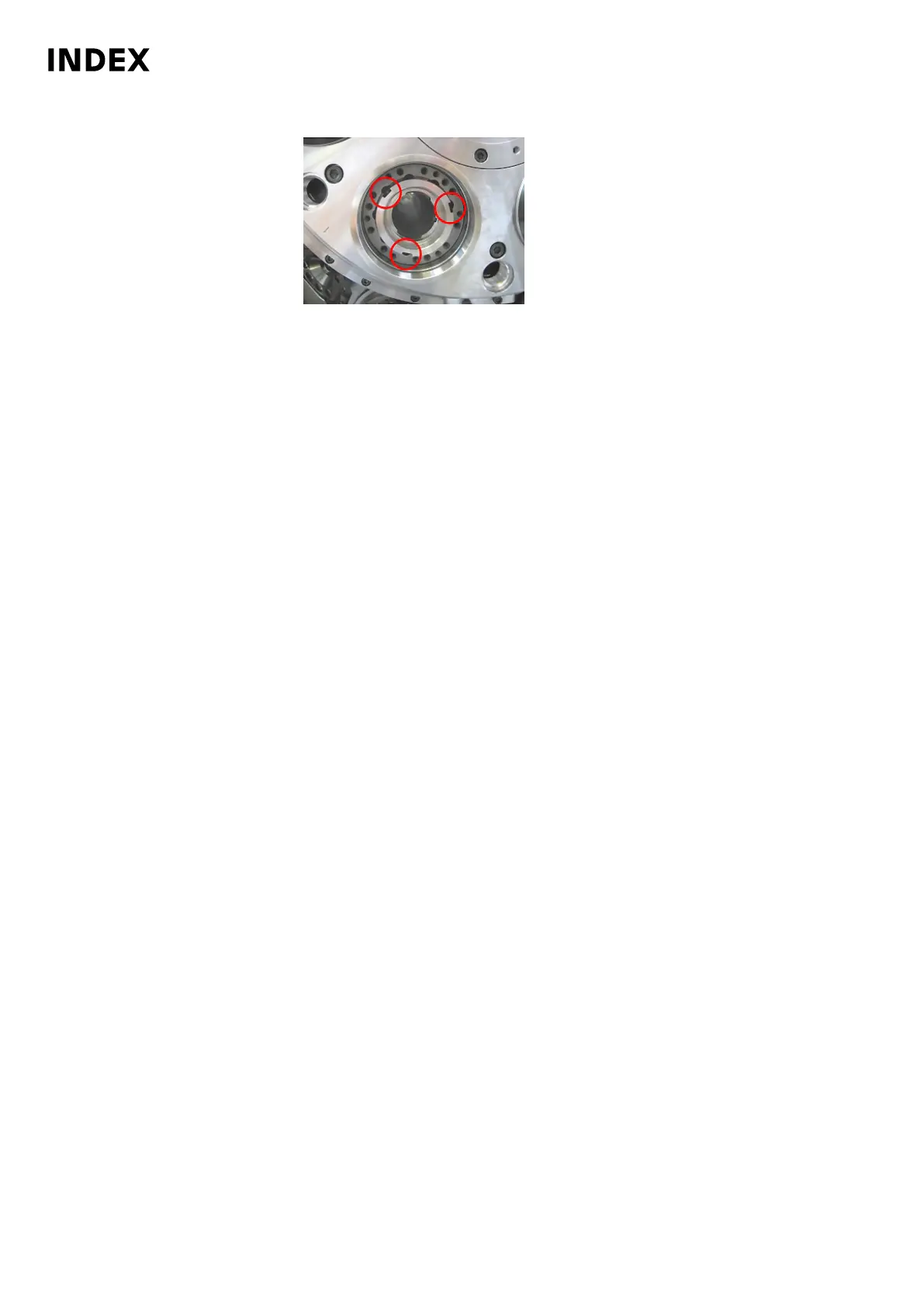

7. Place the clamping element holder (2) on the spindle nose face (5) and screw
in 6 screws.
8. Tighten the screws crosswise to a torque of 14.9 Nm.
9. Check runout. If the specified tolerance of <15µm cannot be achieved, the
spindle mount must be removed again and reassembled offset by one thread.
Check runout again, repeat the procedure if necessary.
10. Insert collet (3).
11. Be sure to remove the spindle lock (device/locking pin) after finishing
the work.
Maintenance Summary - Care activities
40
Maintenance Instructions
MS32-6.2
DIM012EN - 03.06.2020
