Infiniton GASHQ4 - Page 5

2

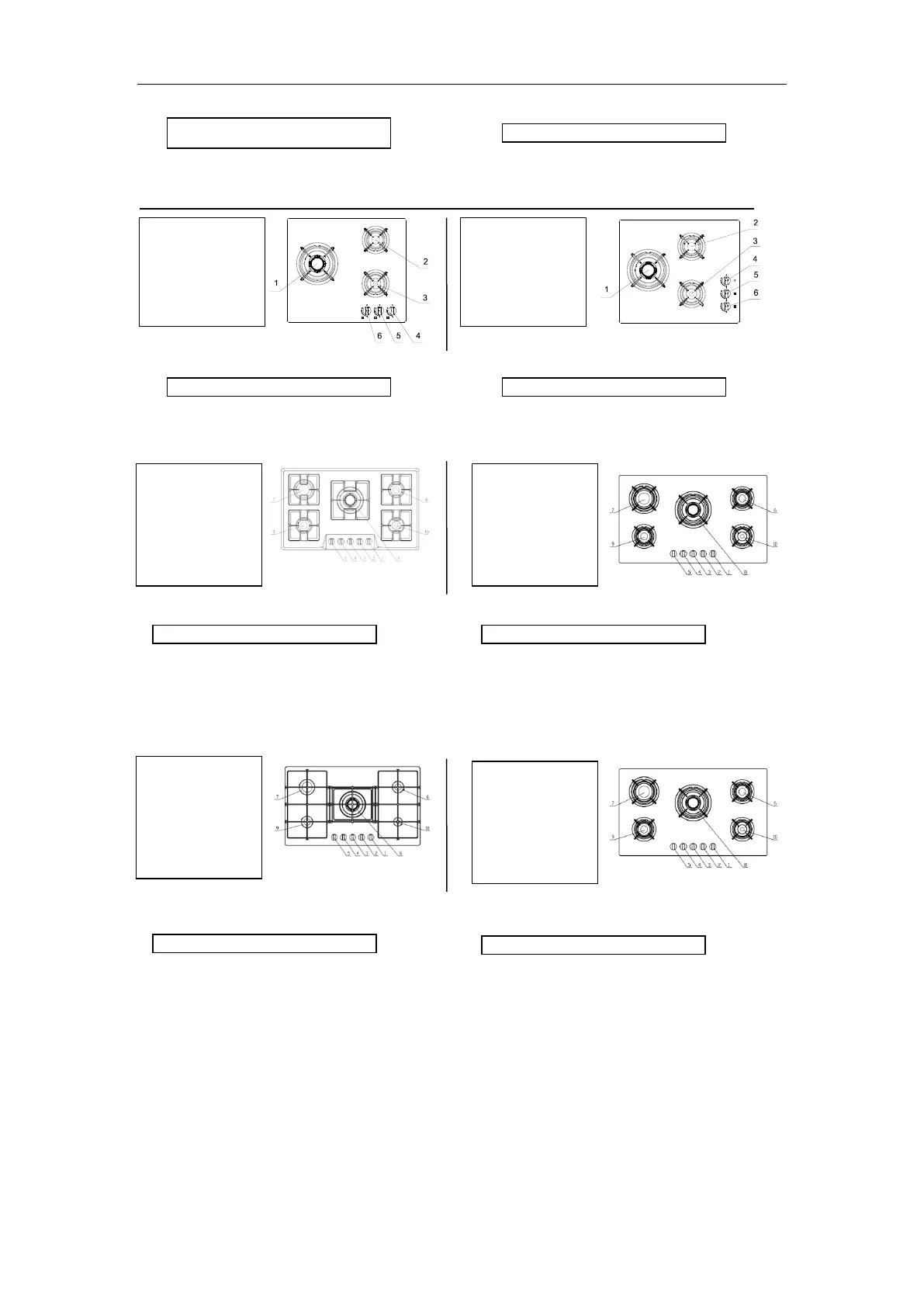

1.The bottom burner—1.0kW(73g/h) in 45 mm 1.The bottom burner—1.0kW(73g/h) in 45 mm
2.The upper burner—3.5kW(255g/h) in 132 mm 2.The upper burner—3.0kW(218g/h) in 95 mm
3.The right burner—1.75kW(127g/h) in 65 mm 3.The right burner—1.75kW(127g/h) in 65 mm
4.The left burner—3.0kW(218g/h) in 95 mm 4.The left burner—1.75kW(127g/h) in 65 mm
Figure 7 Figure 8
1.The bottom right burner—3.5kW(255g/h) in 132 mm 1.The bottom right burner—3.5kW(255g/h) in 132 mm
2.The upper right burner—1.75kW(127g/h) in 65 mm 2.The upper right burner—1.75kW(127g/h) in 65 mm
3.The left burner—1.0kW(73g/h) in 45 mm 3.The left burner—1.0kW(73g/h) in 45 mm
Figure 9 Figure 10
1.burner 6—1.75kW(127g/h) in 65 mm 1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm 2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm 3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm 4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm 5.Burner 10—1.0kW(73g/h) in 45 mm
Figure 11 Figure 12
1.burner 6—1.75kW(127g/h) in 65 mm 1.burner 6—1.75kW(127g/h) in 65 mm
2.burner 7—3.0kW(218g/h) in 95 mm 2.burner 7—3.0kW(218g/h) in 95 mm
3.burner 8—3.5kW(255g/h) in 132 mm 3.burner 8—3.5kW(255g/h) in 132 mm
4.burner 9—1.75kW(127g/h) in 65 mm 4.burner 9—1.75kW(127g/h) in 65 mm
5.Burner 10—1.0kW(73g/h) in 45 mm 5.Burner 10—1.0kW(73g/h) in 45 mm
operating instructions:
button 4 is for burner 3
button 5 is for burner 2
button 6 is for burner 1
operating instructions:
button 4 is for burner 2
button 5 is for burner 1
button 6 is for burner 3
JZY-HQ4B67AAGIK,JZT-HQ4B67AAGIK,
JZY-HQ4L67AAGIK,JZT-HQ4L67AAGIK
JZY-HQ4L67ABGIK,JZT-HQ4L67ABGIK,
JZY-HQ3L60AAGIK,JZT-HQ3L60AAGIK,
JZY-HQ3L64ACGIK,JZT-HQ3L64ACGIK,
Total heat input:6.25kW(455g/h)
Total heat input:6.25kW(455g/h)
operating instructions:
button 1 is for burner 10
button 2 is for burner 6
button 3 is for burner 8
button 4 is for burner 7
button 5 is for burner 9
JZY-HQ5B90AAGIK,JZT-HQ5B90AAGIK,
operating instructions:
button 1 is for burner 10
button 2 is for burner 6
button 3 is for burner 8
button 4 is for burner 7
button 5 is for burner 9
JZY-HQ5L90AAGIK,JZT-HQ5L90AAGIK,
operating instructions:
button 1 is for burner 10
button 2 is for burner 6
button 3 is for burner 8
button 4 is for burner 7
button 5 is for burner 9
JZY-HQ5B90BAGIK,JZT-HQ5B90BAGIK,
operating instructions:
button 1 is for burner 10
button 2 is for burner 6
button 3 is for burner 8
button 4 is for burner 7
button 5 is for burner 9
JZY-HQ5L90BAGIK,JZT-HQ5L90BAGIK,
