Infiniton IMW-RU20 - Prepare the Cabinet

15
Holes ""a"
PN:261800316967
Screw A
Mounting Plate
E. Prepare the cabinet
Skip this step if the cabinet depth is within the range of 300-340 mm.

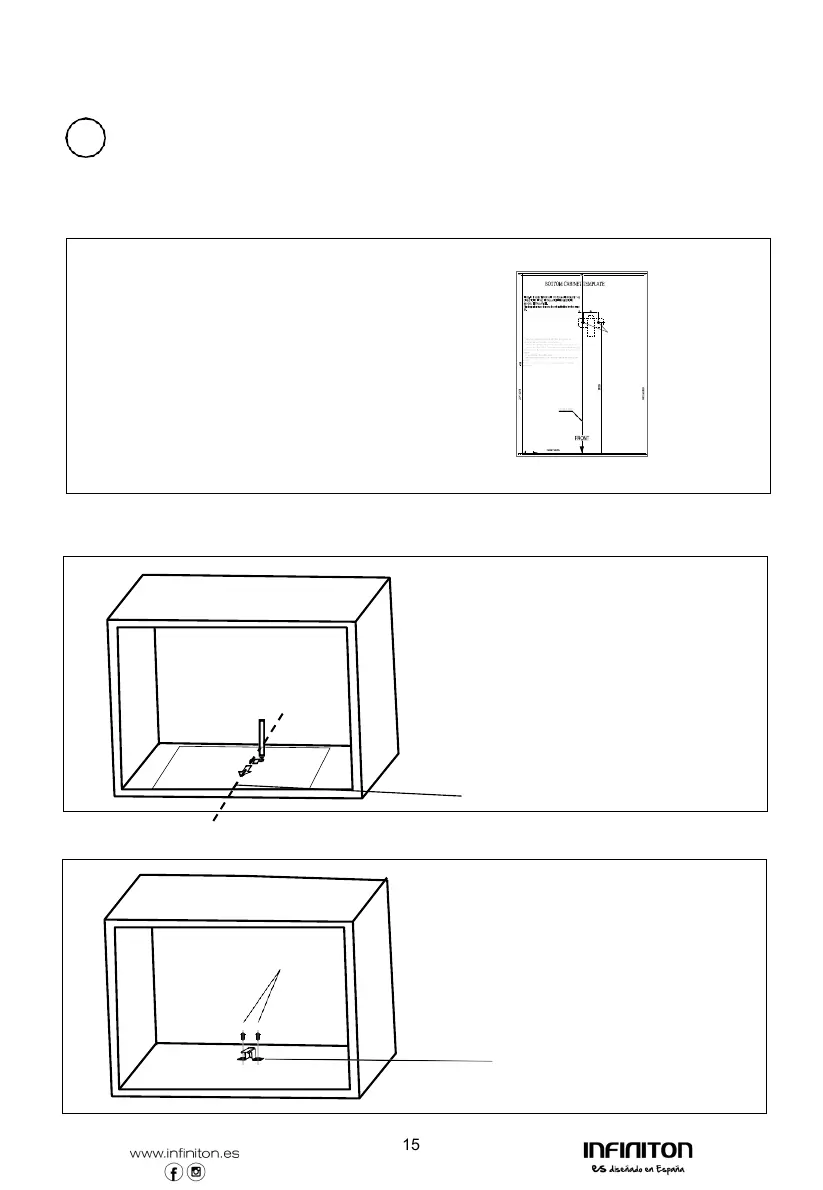

6. Read the instruction on the BOTTOM CABINET TEMPLATE ,
put the template on the bottom plane of cabinet.
7. Make the marks on the bottom plane of cabinet according to marks"a" of
the template
8. Remove the bottom cabinet template and fix the mounting plate with screw A.
Centre line
!
