Infiniton VIT3F30D - Before Locating the Fixing Brackets

21
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
590
520
52
48
560
490
50 mini

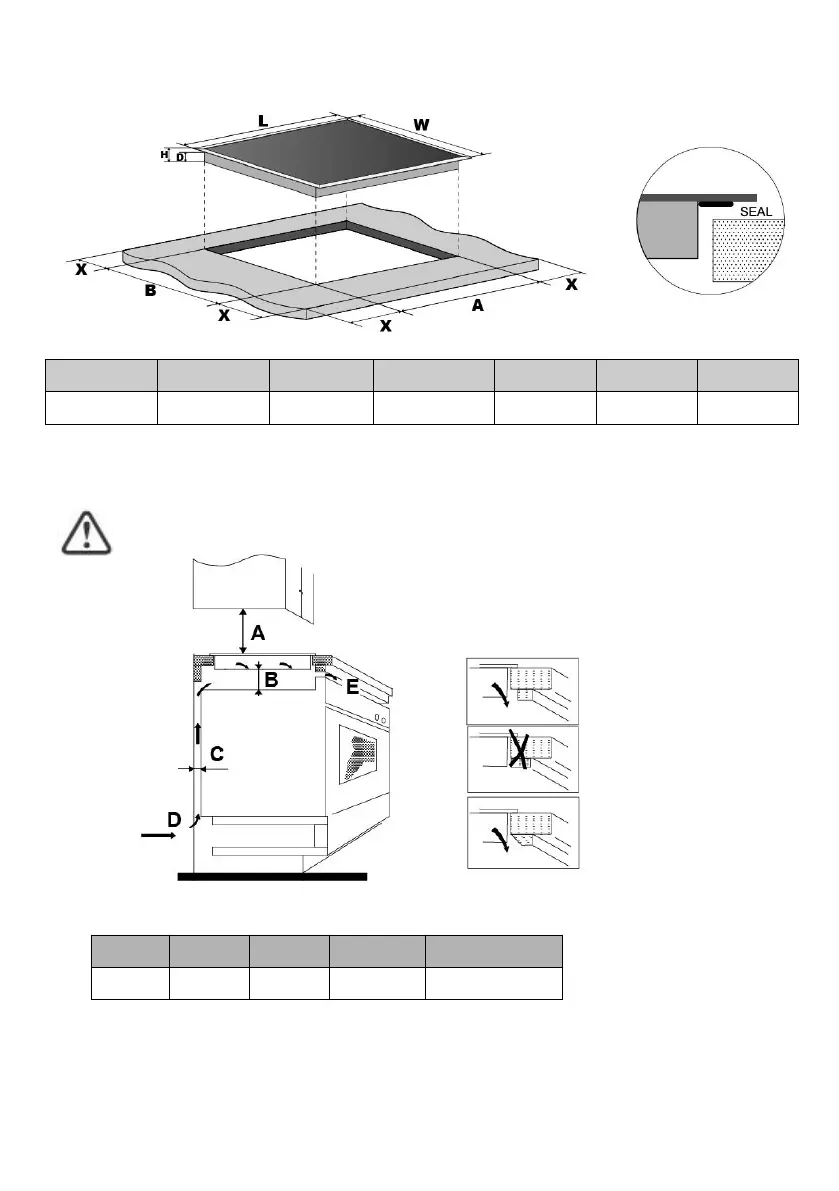

Under any circumstances, make sure the ceramic cooker hob is well ventilated
and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in
good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760mm.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
40 mini
Air intake
Air exit 10 mm
