Infinity HTS-20 - SUBWOOFER CONNECTION METHODS; Connecting via Low-Level Input

14
◆
HTS-20 Home-Theater System – Owner’s Manual
There are several ways to connect your subwoofer. Read this section carefully to determine which
method is best suited for your installation.
The subwoofer may be fed directly with a low-level signal taken from your receiver’s subwoofer-
output to connect your subwoofer. Connect one end of each stereo pair of leads to your pre-
amplifier’s left and right outputs and connect the other end to the corresponding left and right
LOW-LEVEL INPUTS
❷ on the subwoofer. This cable is included with the system.
Connect your subwoofer to an unswitched AC wall outlet.
C ONNECTING THE
S UBWOOFER ...

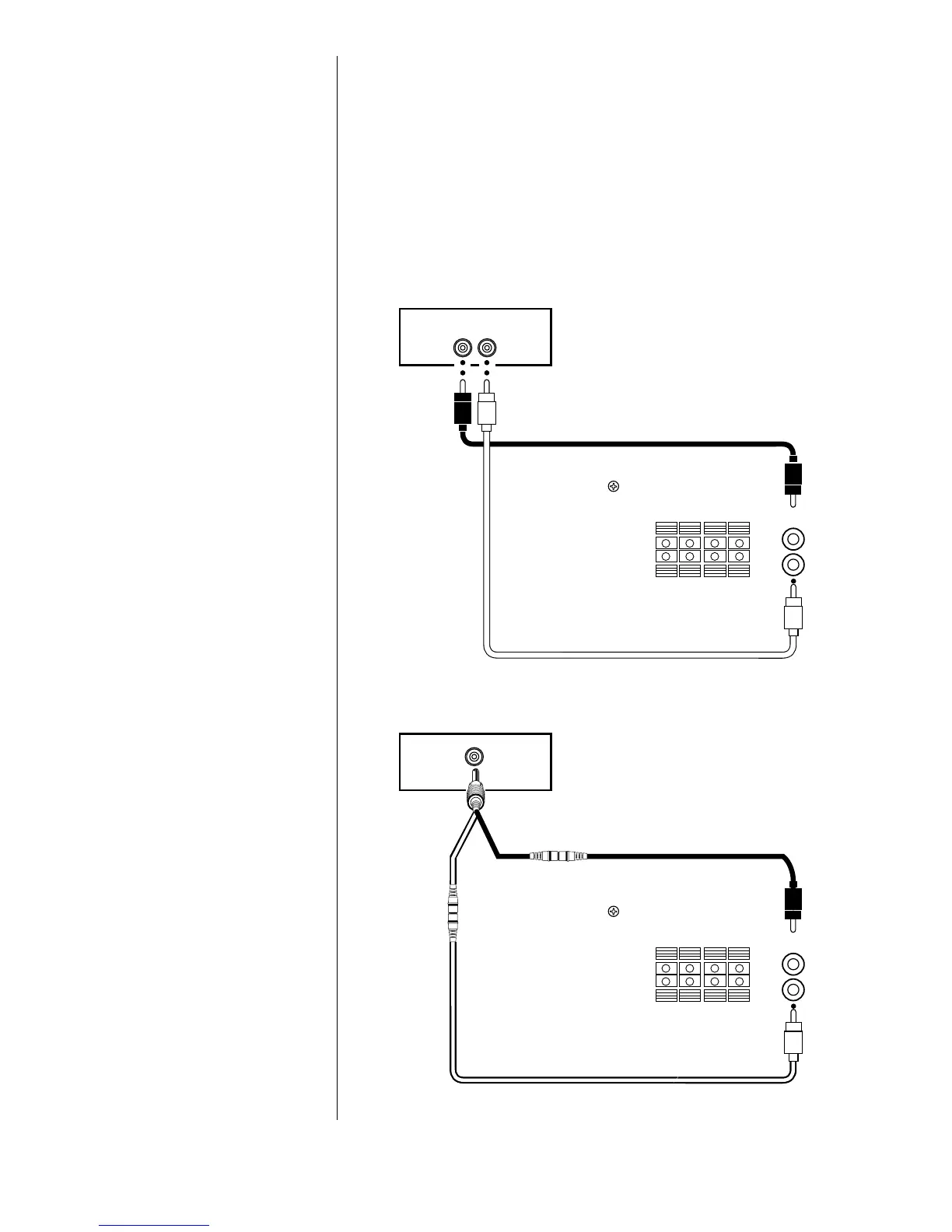

Figure 11.
NOTE: If your receiver has only one
subwoofer output, it is recommended
that you use the supplied
“Y”-connector as shown.
SUBWOOFER
SUBWOOFER OUTPUT
LEFT
RIGHT
LR
SPKR
In
SPKR
Out
+ L –
– R +
L
R
Low-Level In
SUBWOOFER
SUBWOOFER OUTPUT
LEFT
RIGHT
SPKR
In
SPKR
Out
+ L –
– R +
L
R
Low-Level In
Y-Connector
