HTS-20 Home-Theater System – Owner’s Manual
◆
5

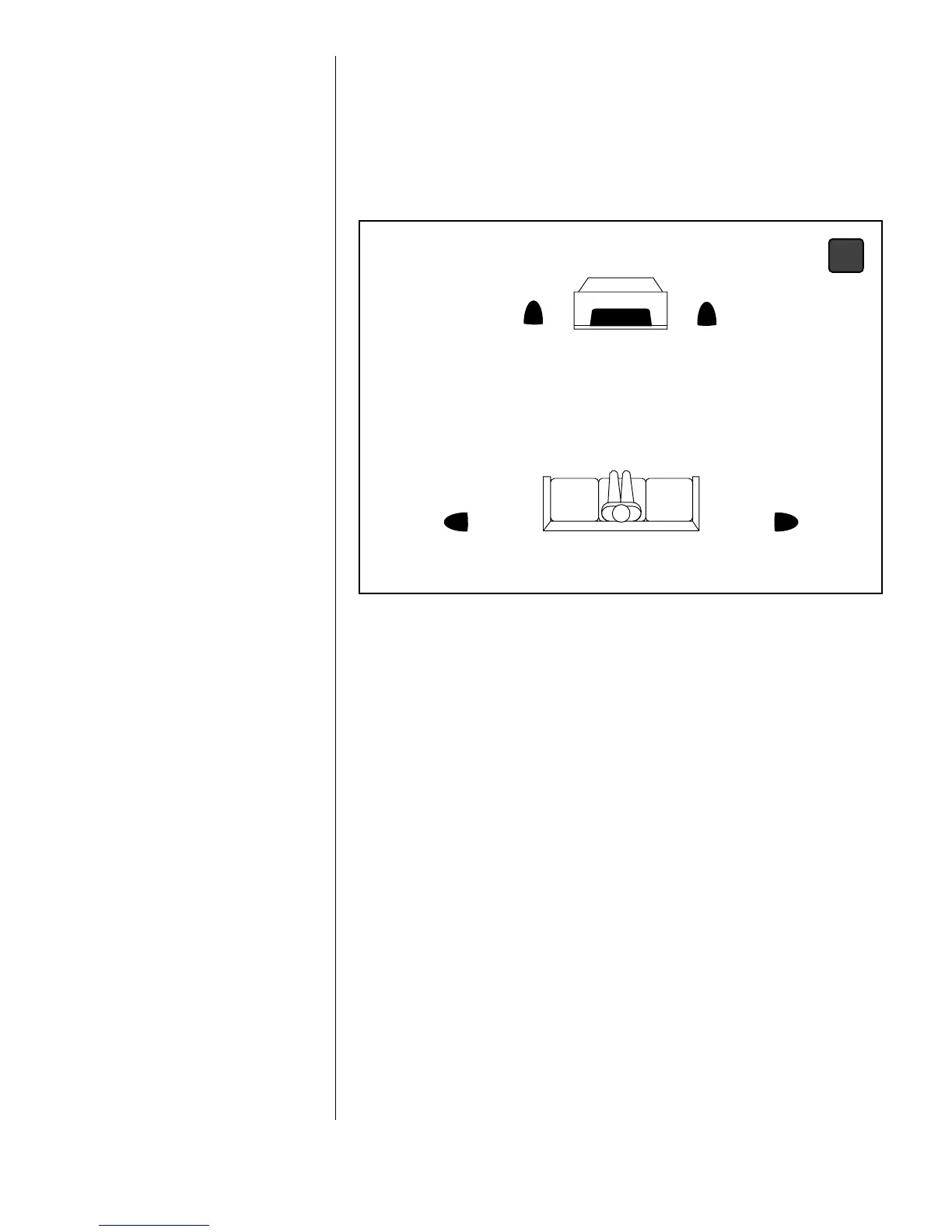

Figure 1. In this overhead view of
a typical installation, satellite speakers
are used to reproduce sound for the front,
center and surround channels. The
powered subwoofer provides extra bass
for effects and music.
PLANNING YOUR SYSTEM
The satellite speakers are used to reproduce sound for front and surround channels. Before deciding
where to best place your speakers, survey your room and study Figure 1.
TELEVISION
SATELLITE SPEAKER
For Left Channel
POWERED
SUBWOOFER
SATELLITE SPEAKER
For Right Channel
SATELLITE SPEAKER
For Left Surround
SATELLITE SPEAKER
For Right Surround
CENTER-CHANNEL
SPEAKER
On Top of Television
