Technical Manual
Interlude IL10
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797 Rev1 04/03

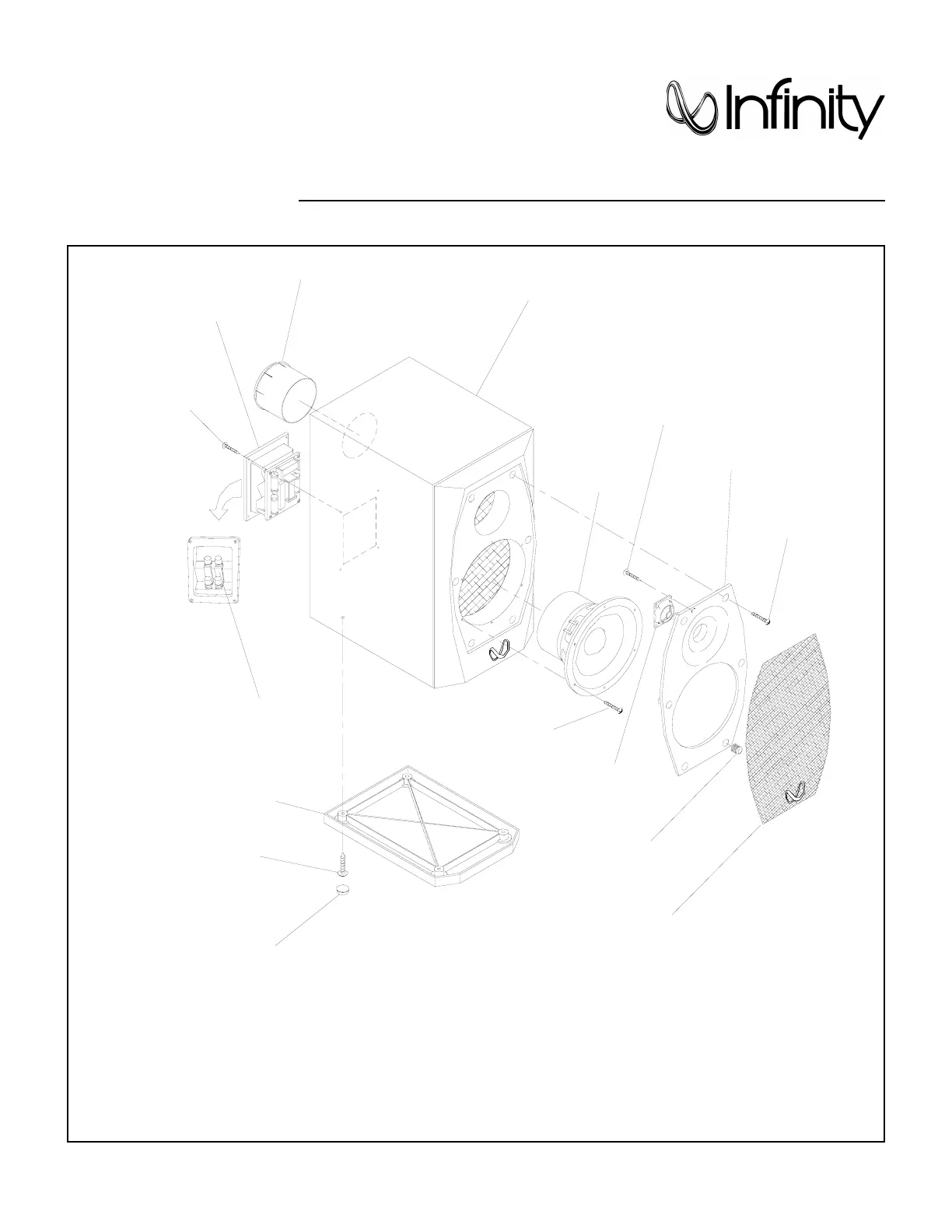

EXPLODED VIEW
BUMP-ON (4)
330104-001
GRILLE CUP (6)
333249-003
TWEETER
335225-003
PEDESTAL-IL10
335618-001
WOOFER
335741-001
GRILLE, BLUE-IL10, 335770-002
GRILLE, RICH BURGUNDY-IL10, 335770-003
GRILLE, PLATINUM-IL10, 335770-001
PTB, 2"
336039-001
NETWORK
335620-001
(Rotated)
00120
CABINET IL10
(NOT FOR SALE)
SCREW, (6)
#6 X.75" PPH BLK
903401-012
907801-006
SCREW, (4)
#4-24 X .375" PPH BLK
SCREW,
#6 X.75" PPH BLK
903401-012
#6 X.75" PPH BLK
SCREW, (4)
903401-012
SHORTING STRAPS (2)
LEFT 073-110012-000
RIGHT 073-110013-000
335742-001
FRONT BAFFLE
TO SERVICE THE INTERLUDE IL10
1) Remove the grille.
2) Extract all (6) rubber grille retainers; this can be accomplished by
carefully pulling them out of their cavities with long-nosed pliers or similar tool.
3) Remove the (6) Phillips screws that are now exposed.
4) Carefully lift the front baffle, with tweeter attached, off the cabinet.
5) If necessary, remove the (6) Phillips screws holding the woofer to the cabinet.
#6 X.75" PPH BLK
903401-012
SCREW, (4)
