Technical Manual
Interlude IL30
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797 Rev1 04/03

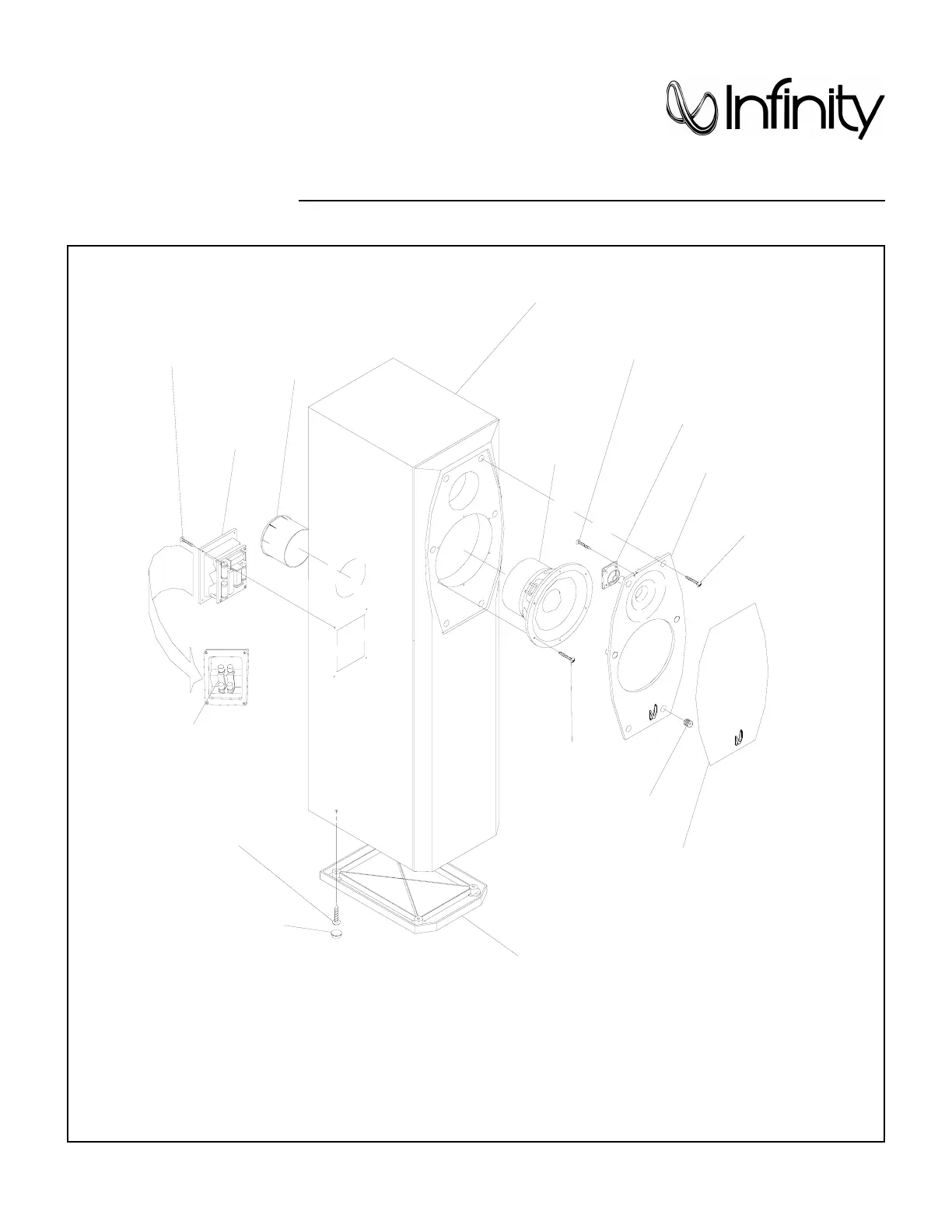

EXPLODED VIEW
PTB, 2"
335763-001
GRILLE, PLATNIUM-IL30, 335827-001
GRILLE, BLUE-IL30, 335827-002
GRILLE, BURGUNDY-IL30, 335827-003
GRILLE CUP (6)
333249-003
BUMP-ON (4)
330104-001
WOOFER
335741-001
SCREW, (4)
#4-24 X .375" PPH BLK
907801-006
FRONT BAFFLE
335762-001
903401-012
#6 X .75" PPH BLK
SCREW, (4)
SCREW, (6)
#6 X .75" PPH BLK
903401-012
#8X .75" PPH BLK
900101-012
SCREW, (4)
ROTATED
SHORTING STRAPS
RIGHT 073-110013-000
903401-012
#6 X .75" PPH BLK
SCREW, (4)
CABINET IL30
(NOT FOR SALE)
NETWORK
336023-001
TWEETER
335225-003
TO SERVICE THE INTERLUDE IL30
1) Remove the grille.
2) Extract all (6) rubber grille retainers; this can be accomplished by carefully pulling them out
of their cavities with long-nosed pliers or similar tool.
3) Remove the (6) Phillip screws that are now exposed.
4) Carefully lift the front baffle, with tweeter attached, off the cabinet.
5) If necessary, remove the (6) Phillips screws holding the woofer to the cabinet.
00131
PEDESTAL
335617-001
