Technical Manual
Interlude IL40
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797 Rev1 04/03

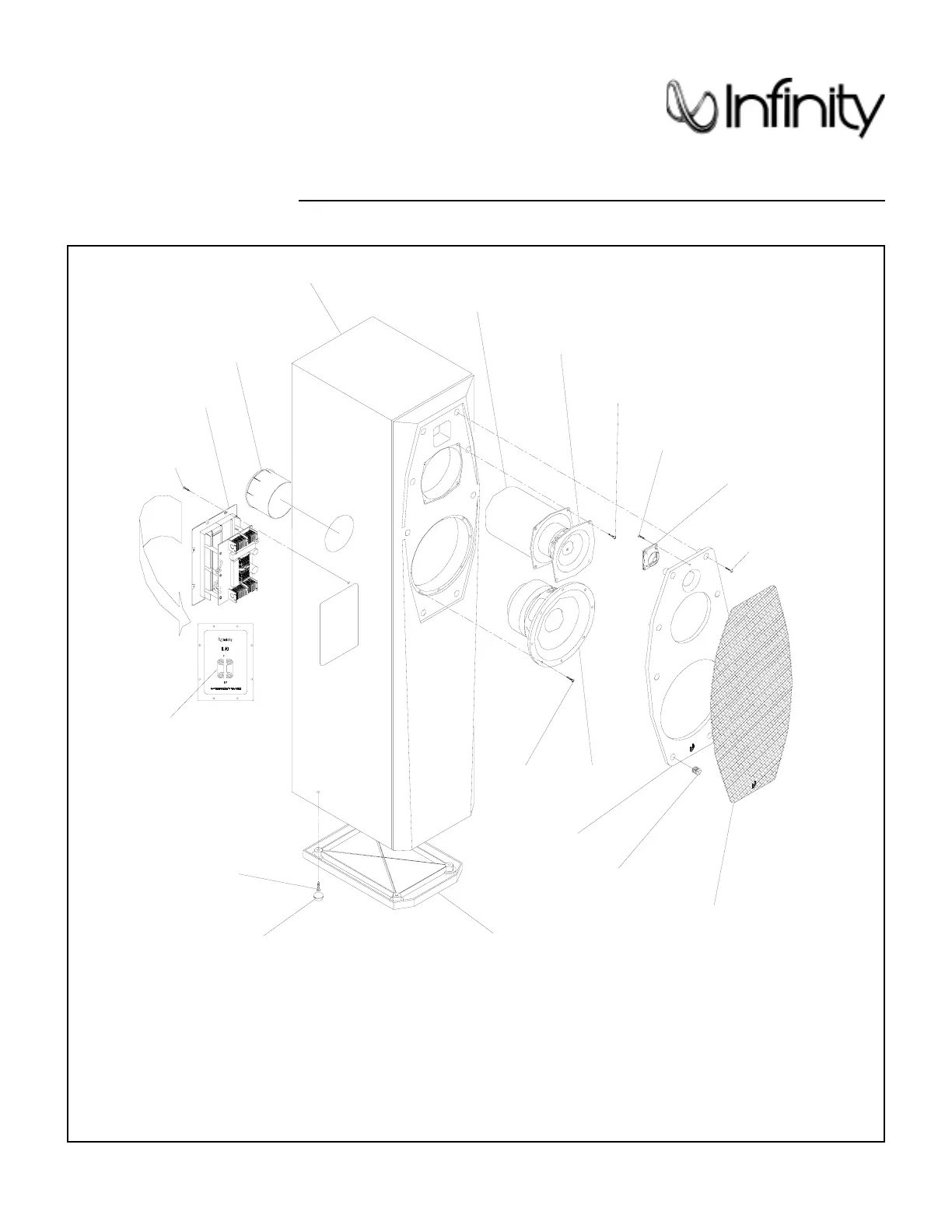

EXPLODED VIEW
ROTATED
00193
CABNET IL40
(NOT FOR SALE)
CUP, ISOLATION
335809-001
SCREW, (4)
#6-19X.375 BLK
905401-006
SCREW, (8)
#8-X.75 BLK
900101-012
SCREW, (4)
PB,PPH, #6X.75 BLK
903401-012
SCREW, (8)
PB,PPH, #6X.75 BLK
903401-012
MID-RANGE
335812-002
SCREW, (8)
PB,PPH, #6X.75 BLK
903401-012
TWEETER
335225-003
WOOFER
335804-001
GRILLE CUP (8)
333249-003
SCREW, (4)
NETWORK ASSY
336241-001
BUMP-ON (4)
330104-001
PEDESTAL
335780-001
PORT TUBE
336055-001
TO SERVICE THE INTERLUDE IL40
1) Remove the grille.
2) Extract all (8) rubber grille retainers; this can be accomplished by carefully pulling them out
of their cavities with long-nosed pliers or similar tool.
3) Remove the (8) Phillip screws that are now exposed.
4) Carefully lift the front baffle, with tweeter attached, off the cabinet.
5) If necessary, remove the (8) Phillips screws holding the woofer to the cabinet.
SHORTING STRAPS (2)
073-110002-000
FRONT BAFFLE
336028-001
#8-X.75 BLK
900101-012
GRILLE, WARM GRAY, 336057-001
GRILLE, MIDNIGHT BLUE, 336057-002
GRILLE, RICH BURGUNDY, 336057-003
