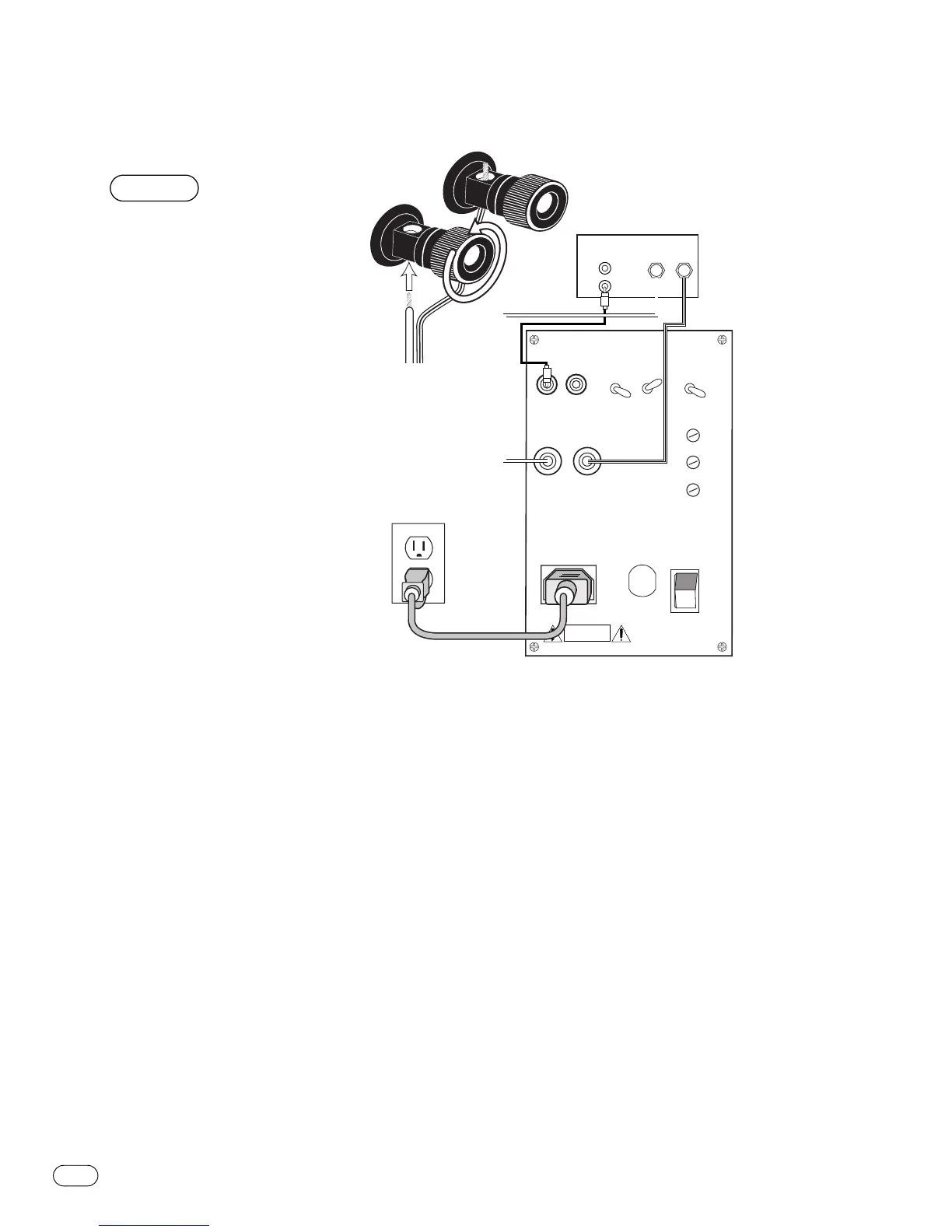

Infinity Interlude IL60 - Connection Method 4

6
INTERLUDE
RECEIVER
SUBWOOFER
OUTPUTS
L
R
SPEAKER
OUTPUTS
RIGHT
(ONE CHANNEL SHOWN)
– +
BLACK = –
NO STRIPE = – STRIPE = +
RED = +
LOOSEN TERMINAL
INSERT BARE
END; TIGHTEN
TERMINAL
SET SUB INPUT
3
TO “LINE LEVEL”
SET LOW-PASS FILTER
4
TO “ON”
1.
2.
3.
4.
3A 250V
Speaker Level
POWER
Freq.
Level
Width
Bass
Optimization
System
On
Off
On
Off
Sub
Input
Speaker
Line
Level
Subwoofer Line Level
In Out
– +
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Low-Pass
Filter
Off
On
AC CORD
Method 4
Final Positioning
After correctly connecting the loudspeaker and verifying that
both the subwoofer and main section portions are playing,it is
time to optimize the system for your particular listening room.
Earlier,you placed the loudspeakers in their general location.
Finding the exact location for optimum performance sometimes
only involves moving the speakers a few inches in any direction.
We urge you,therefore,to experiment with placement until your
speakers deliver their full potential.When the speakers are
moved inward (toward each other) there is generally better focus
of instruments and vocalists;however,moving the speakers too
close together can reduce the spaciousness of the stage effect
and you may need to experiment with the trade-off between focus
and imaging.If your listening room is larger than average and
your listening position is relatively far from the speakers,wider
placement of the speakers may be required.
