Infinity PRELUDE MTS

Screws (8)
#8-32 x ¹⁄₂"
FPH BLK
901901-008
Screws (8)
#8-32 x ¹⁄₂"
PPH BLK
900201-008
Screws (4)
#4-40 x ¹⁄₂" PPH BLK
905501-008
Screws (2)
#10-32 x .875"
PPH BLK
900401-014
Screws (4)
#6-32 x 1.5"
PPH BLK
900301-024
Woofers (2)
335337-001
Front Baffle
Gasket
335356 -002
Tweeter
335225-001
End Cap (2)
335044-001
End Cap
Gasket (2)
335354-001
Network (2)
335241-001
Network (2)
335241-001
Grille
335230-002
Binding Post
(Red)
335358-002
Prelude Center
(Not for Sale)
Binding Post
(Black)
335358-001
Screws (4)
#8-32 x ¹⁄₂" PPH BLK
900201-008
Screws (8)
#¹⁄₄ -20 x 1.5" PPH BLK
908701-024
Screws (4)
#8-18 x ¹⁄₂"
FPH BLK
908801-008
Mid-Range
335224-001
Mid-Range
Cup Gasket
335705-001
Mid-Range
Cup
335226-002
Grille retainer (8)
333249-003
Front Baffle
335236-001
Stand
335844-001
Knock-out
Seal (4)
330068-001
Terminal Cup
335369-001
Prelude MTS Center
11/01
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797

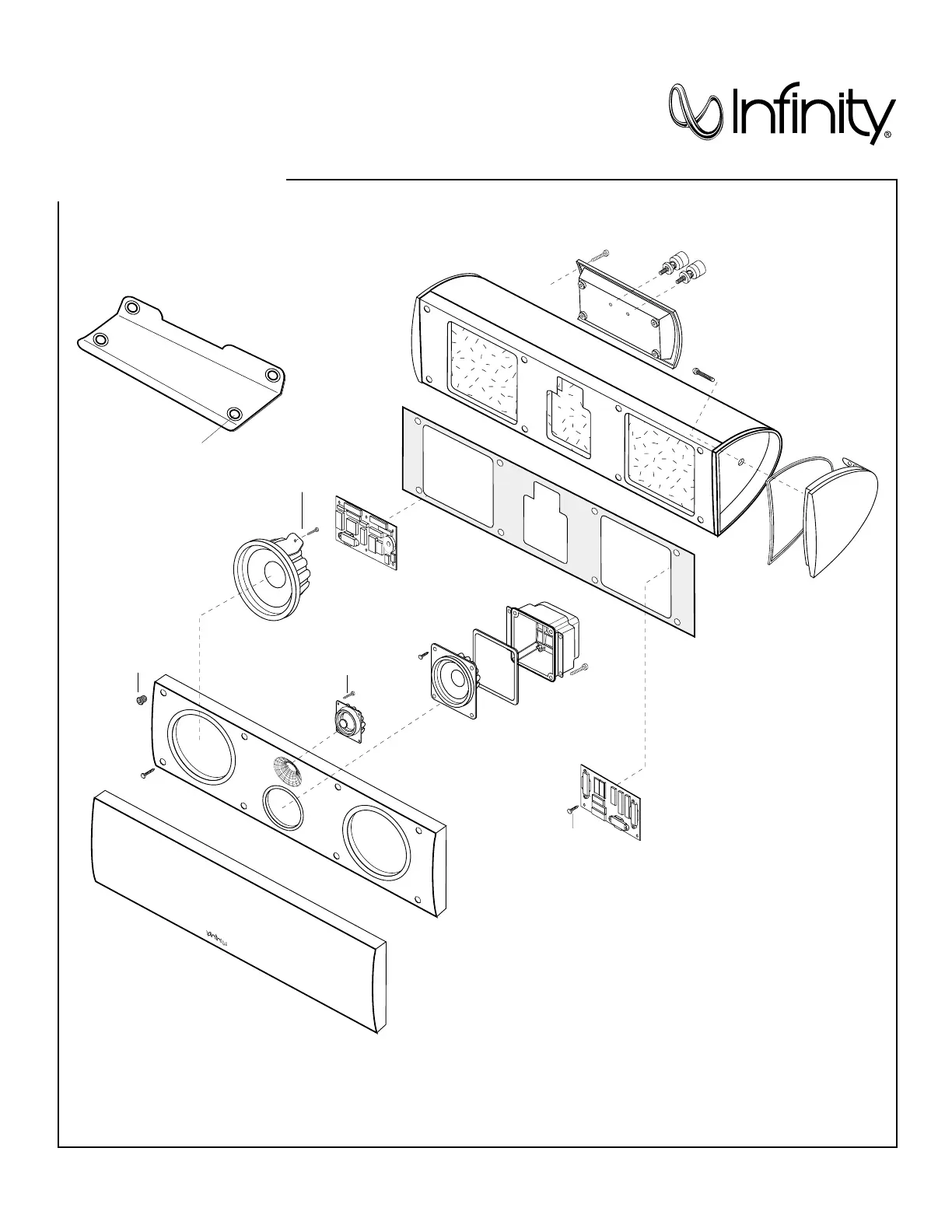

EXPLODED VIEW
Prelude MTS Center
To Service the Prelude MTS Center
1) Lay the loudspeaker down on a padded, level surface; remove
the grille.
2) Extract all (8) rubber grille retainers; this can be accomplished by
carefully pulling them out of their cavities with long-nosed pliers or
similar tool.
3) Remove the (8) Phillips screws that are now exposed.
4) Carefully lift the fully loaded baffle off the cabinet.
5) To service the binding posts or terminal cup, remove the (4) Phillips
screws that hold the cup to the rear cabinet. NOTE: Removal of this
cup alone only allows access to the binding posts or terminal cup.
