5
8
12
13
14
15
11
1
6
9
7
Primus 250 Cabinet – Not for Sale
16
10
3
4
2
Primus 250

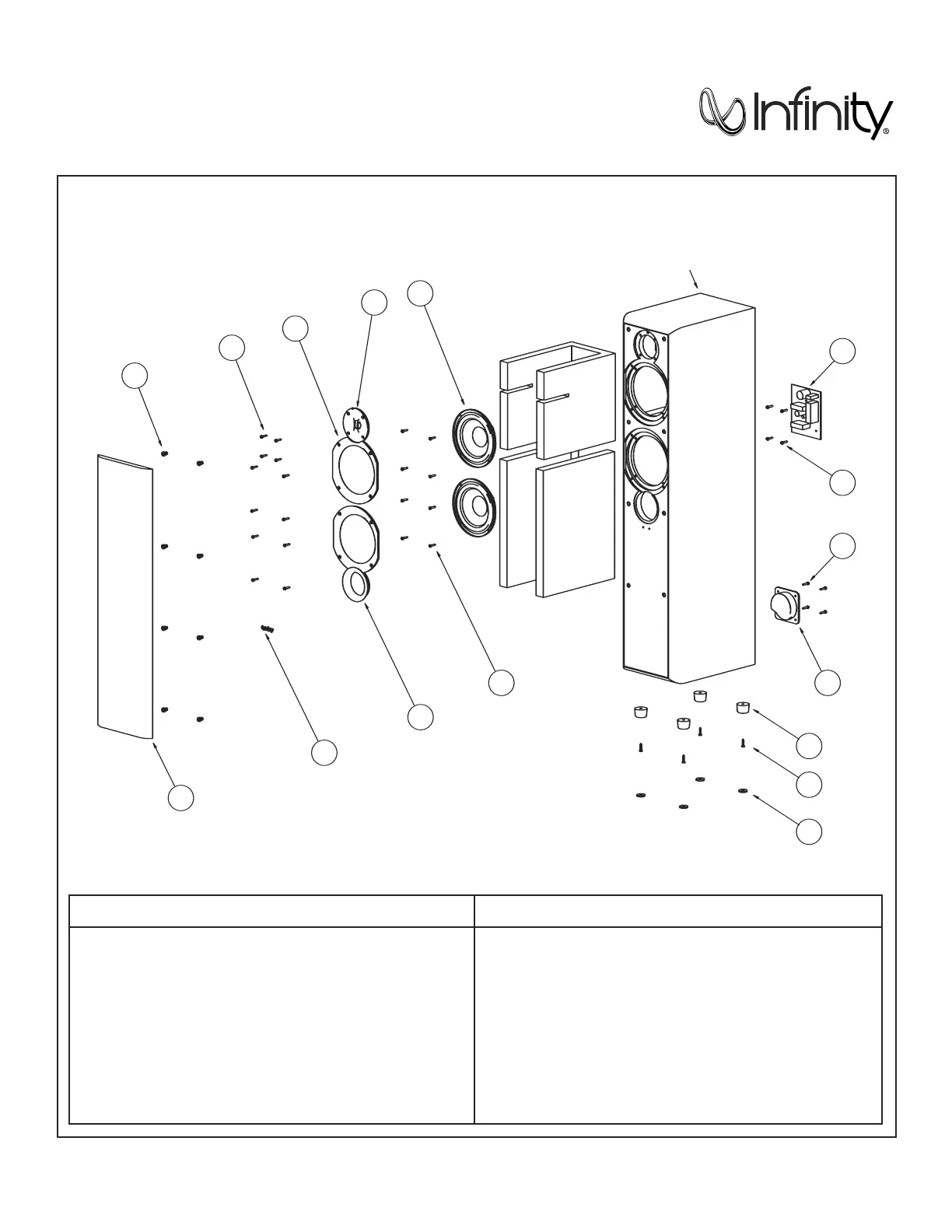

EXPLODED VIEW
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
1/06
ITEM
NO. DESCRIPTION QTY. PART NO.
1. Crossover Network 1 013-7500-00755
2. Woofer 2 13PR80BZD-HW01
3. Tweeter 1 85DA20AJ-DT02
4. ABS Plastic Ring 166*121.5*8T 2 213-050-00491
5. Grille 670.9*183*3T Black 1 244-050-00260B
Grille 670.9*183*3T Gray 1 244-050-00260G
6. Port Tube 84.9*18.3 1 249-HIPS-00164
7. ABS Infinity Gold Logo 38.5*11.5 1 316-ABS-00532-2
8. Network Cup W/Binding Posts 1 317-ABS-00165
80*80mm ABS Gold Plating
9. Woofer Screw 4*L16 d=7mm 8 352-FM04014D602
10. Faceplate/Tweeter FE Screw T4.5*25 12 352-DM04525D597
11. Terminal Cup Screw 3.5*L20 d=6mm 4 352-GM03520D850
ITEM
NO. DESCRIPTION QTY. PART NO.
12. Network Screw t4*18 4 352-HM04018D497
13. Feet 4 320-ABS-00195
14. Foot Screw 4 352-CM04020D202
15. Rubber Footbase 4 320-RUB-00199
16. Grille Cup 8 338-RUB-00114
17. Outer Carton 1 400-000-04521
18. Owner’s Manual 1 406-000-01536
19. Foam End Pad (Top) 1 431-000-02176
Primus 250 400*287*95mm
20. Foam End Pad (Bottom) 1 431-000-02177
Primus 250 400*287*95mm
21. Warranty Card 1 405-000-00312
Technical Manual
Primus 250
