Infinity QPS-1 – Owner’s Manual
PLANNING YOUR SYSTEM
To help plan your home theater system, we’ve included two system applications, as
shown in Figures 1 and 2. The first one represents a typical living room where the home
theater system is the main focus. In the second application, the furniture is arranged for
fireplace viewing and the entertainment center is in a corner.
Since QPS-1 surround speakers are a quadropole design, exact placement is not critical.
For best results, position the speakers so they are level with or behind the listeners
(typically seated on a couch). Place them at or above ear level (28" or 0.7m, depending
on the available shelf or wall space). Make sure the speaker marked left (on its rear
label) is on the left side (as you face forward), and the speaker marked right is on the
right side (see Figure 1).
Set each speaker on any convenient shelf or table via a built-in display stand (see Figure
3 on page 4). Or use the built-in keyhole (see Figure 3 on page 4) for a more permanent
mounting method.
S URROUND P LACEMENT
C ONCERNS ...
S
TAND -U P O R
W ALL -M OUNT ...

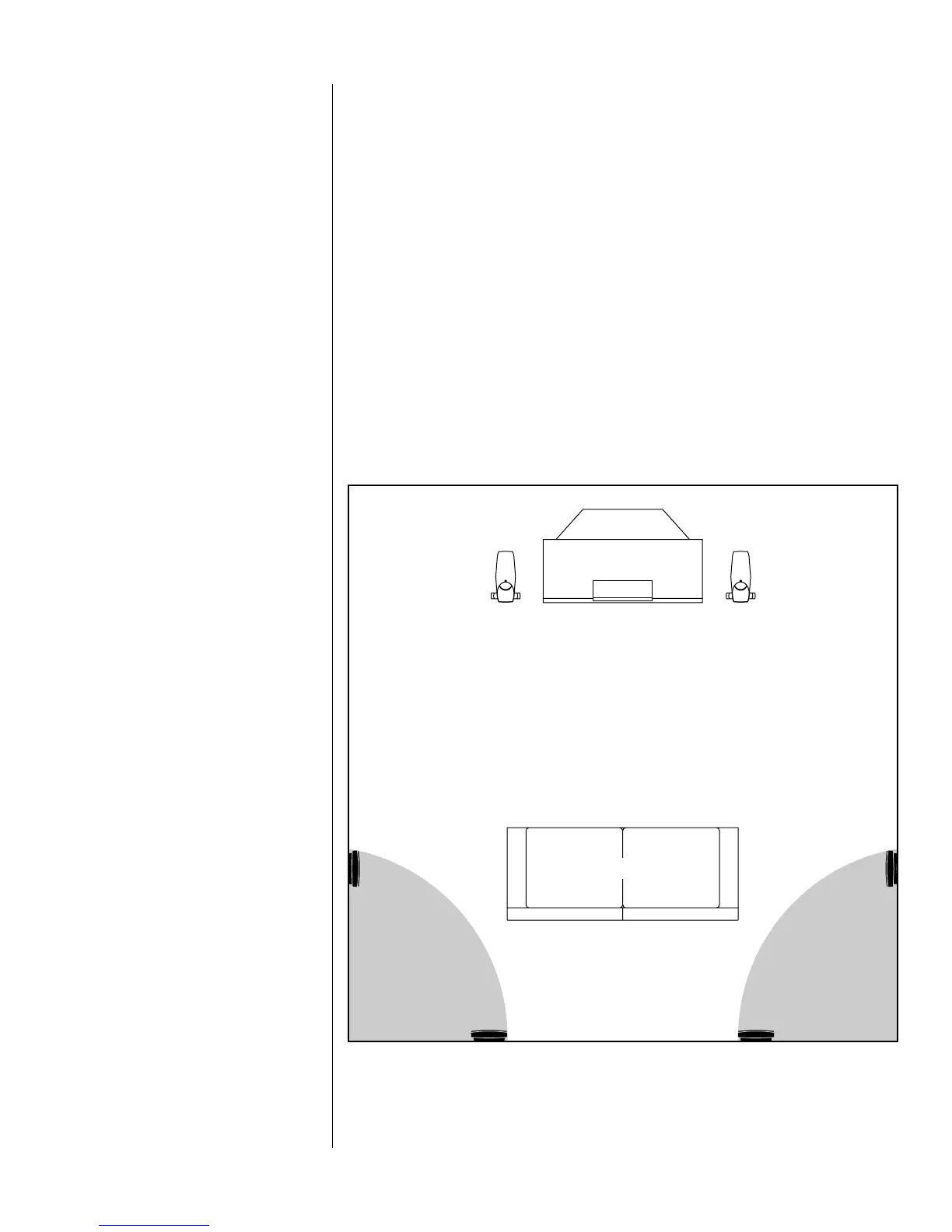

Figure 1. This overhead view shows
a typical home theater plan. The
QPS-1 speakers can be placed on
stands in the noted areas or wall-
mounted on side or back walls.
Big Screen TV
Couch
QPS-1
Left Surround
(on side wall)
QPS-1
Right Surround
(on side wall)
(or use rear wall)
Left Surround
Placement Area
Right Surround
Placement Area
Center Channel
on top of TV
Left
Channel
Right
Channel
