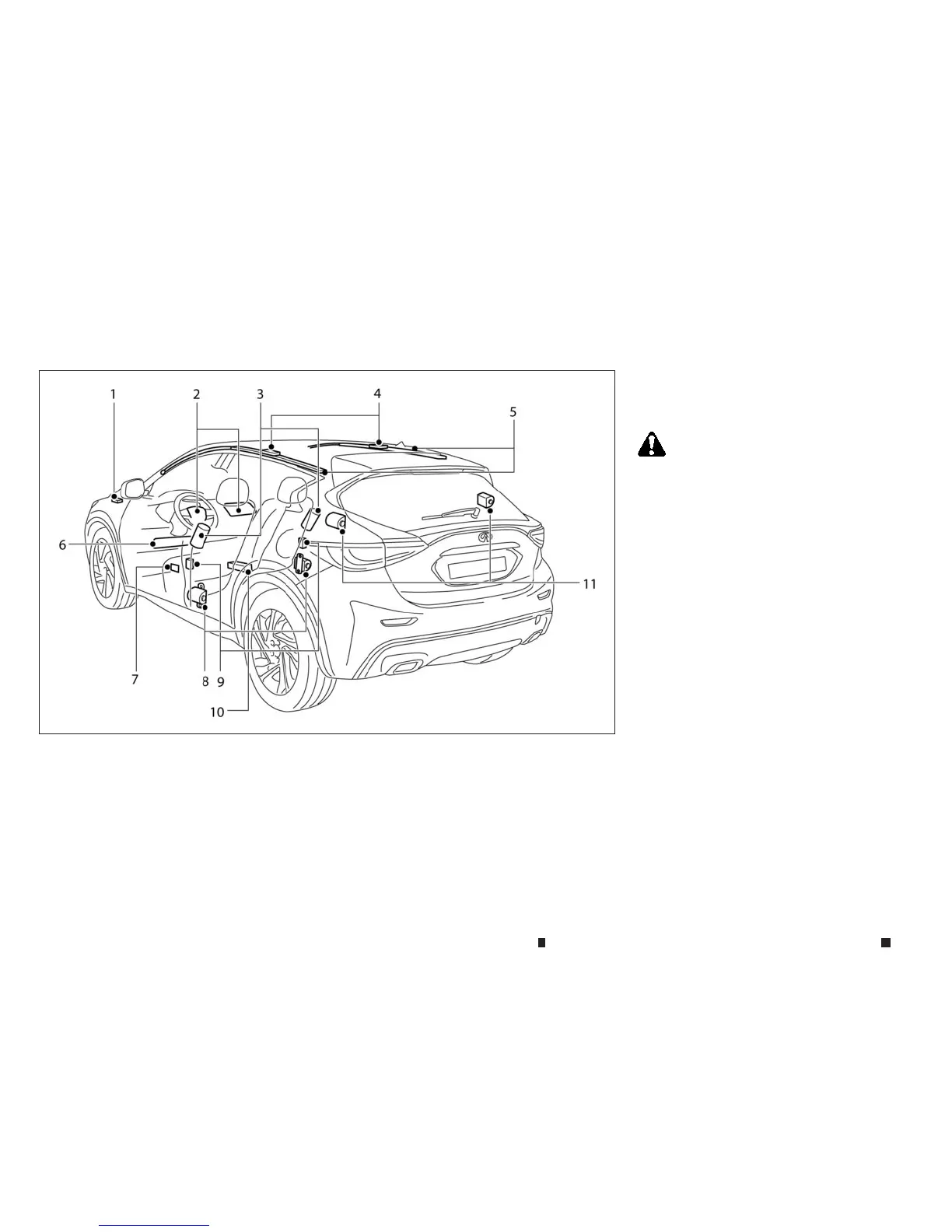

SUPPLEMENTAL AIR BAG SYSTEMS
1.
Crashzone sensor
2.
Supplementalfront-impact air bag
modules
3.
Front seat-mo
un
ted
si
de-impact
supplemental air bag modules
4. Roof-mounted curtain side-impact
supplementalair bags inflators
5.
Window bag/Roof-mounted curtain side-
impact supplemental airbag modules
6.
Driver’s knee air bag
7.
Front door pressure sensors
8.
Front seat belt with pre-tensioners
9.
Satellite sensors
10.
Airbag Control Unit (ACU)
11.
Rearseatbelt with pre-tensioners
WARNING
•
Donotplaceanyobjectsonthesteeringwheelpad.
Do not placeany objects between the driver and
steeringwheelpad.Such objectsmaybecomedan-
gerousprojectilesand causeinjuryifasupplemen-
talair bag inflates.
•
Do not placeobjects with sharp edges on the seat.
Also,donot placeheavy objects on the seat that
will leave permanentimpressionsinthe seat.Such
objects candamagethe seat or automatic front-
passenger air bag detection system. Thiscan af-
fect the operation of the air bag system and result
in seriouspersonal injury.
•
Do not usewater or acidic cleaners (hot steam
cleaners) on the seat. Thiscan damagethe seat or
automatic front-passenger air bag detection sys-
tem. Thiscan also affect the operation of the air
bagsystem and result in serious personal injury.
•
Immediately after inflation, several supplemental
air bag system components will be hot. Do not
touch them: youmay severely burn yourself.
NIC2868
1-34 Safety — seats, seat belts and supplemental restraint system
