InFocus IN126STA User Manual

7
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the
projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen.
IN124STa must
be at least 30.04” (0.763m) from the projection screen, and
IN126ST6a must be at least 30.67” (0.779m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus
approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit
(p/n PRJ-MNT-UNIV) for more information. The warranty does not cover
any damage caused by use of non-approved ceiling mount kits or by installing
in an improper location. To turn the image upside down, see “Ceiling mount”
on page 28. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
fro
m the lens of the projector to the screen and the video format determine
the size of the projected image.
Model Minimum Distance to Screen Offset Offset for 60in. Image
IN124STa 30.04"/0.763m 15%+-5% 5.4"/14cm
IN126STa 30.67"/0.779m 12%+-5% 4.0"/10cm

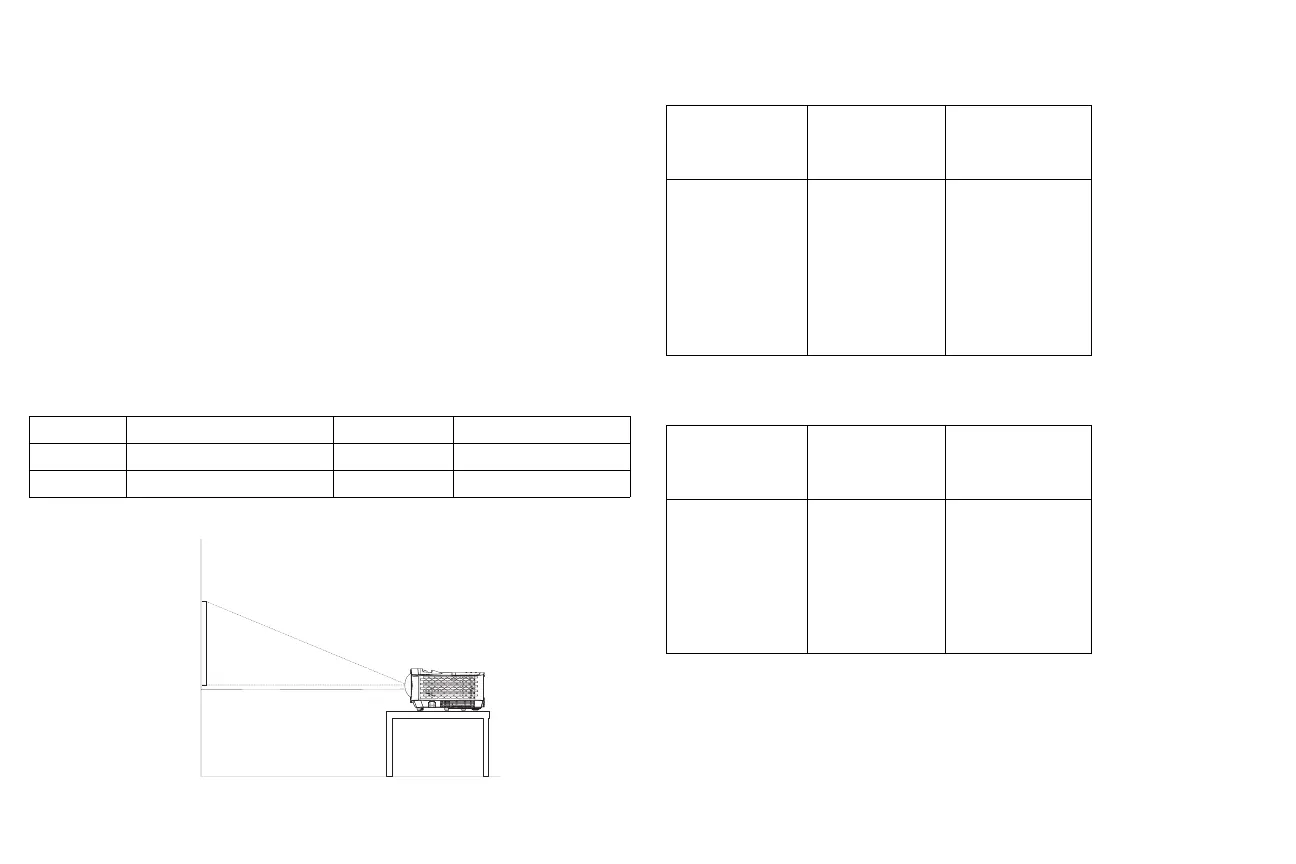

60 inches
high image
bottom of image 9
inches above center
of lens
Projection angle
lens center
Table 1: IN124STa (XGA) Screen size
Throw Ratio = 0.626
Diagonal Screen
Size (inches/m)
Size of the
Pr
ojected Image
Width
(inches/m)
Distance to screen
(inches/m)
30”/0.8m 24”/0.6m 15”/0.4m
40”/1.0m 32”/0.8m 20”/0.5m
60”/1.5m 48”/1.2m 30”/0.8m
80”/2.0m 64”/1.6m 40”/1.0m
100”/2.5m 80”/2.0m 50”/1.3m
150”/3.8m 120”/3.1m 75”/1.9m
200”/5.1m 160”/4.1m 100”/2.5m
300”/7.6m 240”/6.1m 150”/3.8m
Table 2: IN126STa (WXGA) Screen size
Throw Ratio = 0.53
Diagonal Screen
Size (inches/m)
Size of the
Pr
ojected Image
Width
(inches/m)
Distance to screen
(inches/m)
40”/1.0m 32”/0.8m 20”/0.5m
60”/1.5m 48”/1.2m 31”/0.8m
80”/2.0m 64”/1.6m 42”/1.1m
100”/2.5m 80”/2.0m 53”/1.3m
150”/3.8m 120”/3.1m 79”/2.0m
200”/5.1m 160”/4.1m 106”/2.7m
300”/7.6m 240”/6.1m 160”/4.1m

InFocus IN126STA Specifications

General

White Brightness	3200 lumens
Native Resolution	1280 x 800
Contrast Ratio	3, 000:1
Aspect Ratio	16:10
Throw Ratio Range	0.48:1
3D	yes
Minimum Screen Size	44.1 inches
Maximum Screen Size	294.9 inches
Video Input	vga, hdmi, s-video, composite video
Inputs	hdmi, composite video, s-video, usb, vga
OS Compatibility	mac, windows
Remote Control	yes
Noise Level	32 decibels
Focus Adjustment	manual
Optical Zoom	none
Sound Mode	mono
Built In Speakers	yes
Speakers Output	2 watts

Weight and Dimensions

Depth	9.3 inches
Height	2.8 inches
Width	11.2 inches
Net Weight	4.8 pounds
