InFocus LP820 User Manual

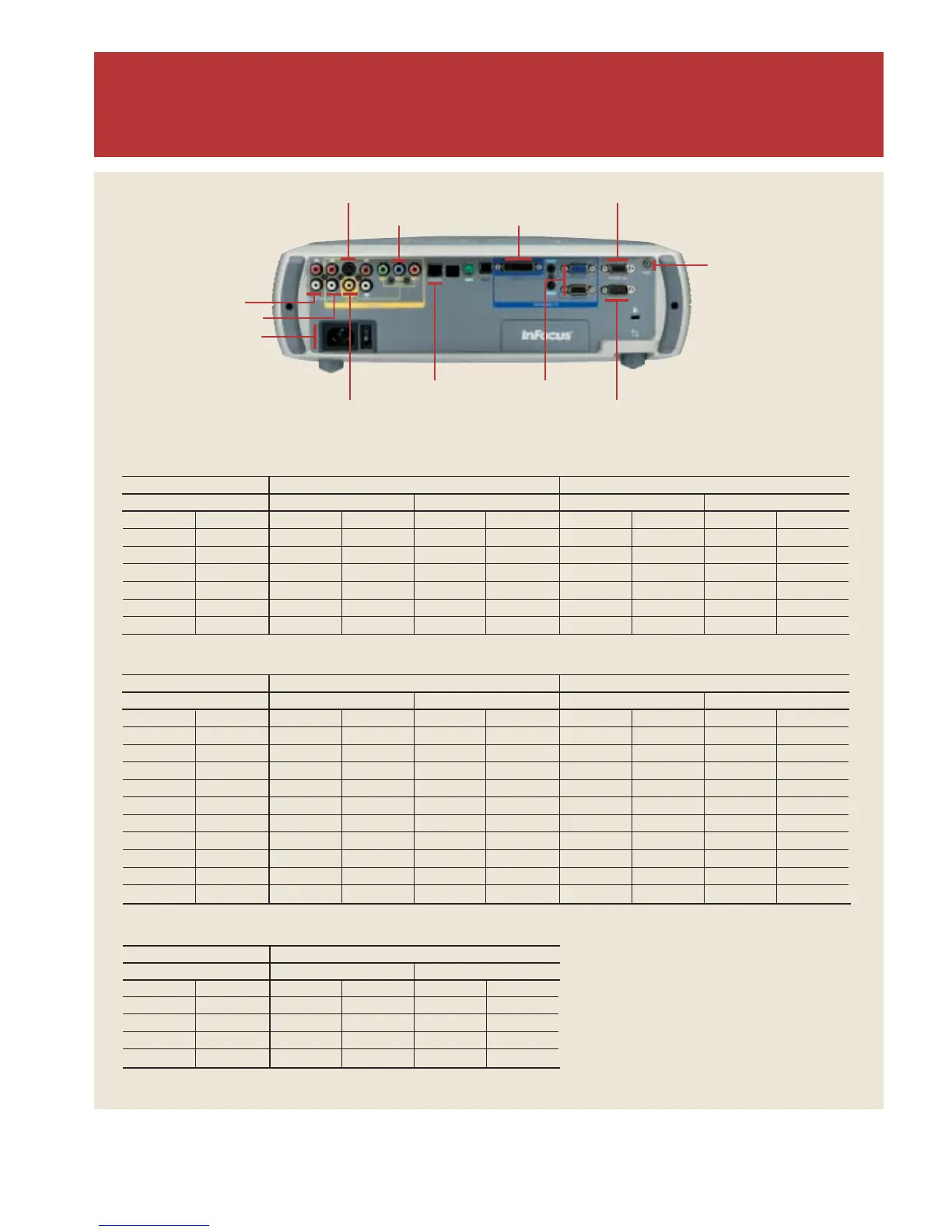

INSTALLATION & INTEGRATION PROJECTOR.
Minimum Image Maximum Image
Distance Diagonal Image Image Width Diagonal Image Image Width
16.4' 5.0 m 3.73' 1.14 m 2.98' 0.91 m 6.83' 2.08 m 5.47' 1.67 m
20' 6.1 m 4.55' 1.39 m 3.64' 1.11 m 8.33' 2.54 m 6.67' 2.03 m
25' 7.6 m 5.68' 1.73 m 4.55' 1.39 m 10.42' 3.18 m 8.33' 2.54 m
30' 9.1 m 6.82' 2.08 m 5.45' 1.66 m 12.50' 3.81 m 10.00' 3.05 m
35' 10.7 m 7.95' 2.42 m 6.36' 1.94 m 14.58' 4.45 m 11.67' 3.56 m
40' 12.2 m 9.09' 2.77 m 7.27' 2.22 m 16.67' 5.08 m 13.33' 4.06 m
45' 13.7 m 10.23' 3.12 m 8.18' 2.49 m 18.75' 5.72 m 15.00' 4.57 m
50' 15.2 m 11.36' 3.46 m 9.09' 2.77 m 20.83' 6.35 m 16.67' 5.08 m
75' 22.9 m 17.05' 5.20 m 13.64' 4.16 m 31.25' 9.53 m 25.00' 7.62 m
100' 30.5 m 22.73' 6.93 m 18.18' 5.54 m 41.67' 12.70 m 33.33' 10.16 m
200' 61.0 m 45.45' 13.85 m 36.36' 11.08 m 83.33' 25.40 m 66.67' 20.32 m
PROJECTION DISTANCES LP820 3.0:1 – 5.5:1 Optional Long Throw Chart
Minimum Image Maximum Image
Distance Diagonal Image Image Width Diagonal Image Image Width
5' 1.5 m 2.60' 0.79 m 2.08' 0.64 m 3.47' 1.06 m 2.78' 0.85 m
10' 3.0 m 5.21' 1.59 m 4.17' 1.27 m 6.94' 2.12 m 5.56' 1.69 m
15' 4.6 m 7.81' 2.38 m 6.25' 1.91 m 10.42' 3.18 m 8.33' 2.54 m
20' 6.1 m 10.42' 3.18 m 8.33' 2.54 m 13.89' 4.23 m 11.11' 3.39 m
25' 7.6 m 13.02' 3.97 m 10.42' 3.18 m 17.36' 5.29 m 13.89' 4.23 m
30' 9.1 m 15.63' 4.76 m 12.50' 3.81 m 20.83' 6.35 m 16.67' 5.08 m
32.8' 10.0 m 17.08' 5.21 m 13.67' 4.17 m 22.78' 6.94 m 18.22' 5.55 m
PROJECTION DISTANCES LP820 1.8:1 – 2.4:1 Standard Throw Chart
Image Size
Distance Diagonal Image Image Width
3.3' 1.0 m 3.44' 1.05 m 2.75' 0.84 m
5' 1.5 m 5.21' 1.59 m 4.17' 1.27 m
10' 3.0 m 10.42' 3.18 m 8.33' 2.54 m
15' 4.6 m 15.63' 4.76 m 12.50' 3.81 m
19.7' 6.0 m 20.52' 6.25 m 16.42' 5.00 m
PROJECTION DISTANCES LP820 1.2:1 Optional Short Throw Chart
Composite Video
S-Video
Monitor Out
Digital Computer (M1-D)
Component Video
RS-232
Audio In
Audio Out
Power
Analog Computer
NIC (RJ45)
12V Screen Trigger

InFocus LP820 Specifications

Display

native resolution	1024 x 768
display technology	3 x .99" polysilicon TFT LCD
brightness	3200 ANSI lumens

Video Compatibility

video compatibility	NTSC, PAL, SECAM, EDTV, HDTV (1080i, 1080p, 720p, 480p RGBHV)
contrast ratio	800:1
number of colors	16.7 million

Projection Lens

zoom ratio	1.3:1
throw ratio	1.8:1 – 2.4:1 (D:W)
projection distance	1.5 m – 10.0 m

Power

power consumption	350 watts
power supply	100V – 240V at 50 – 60 Hz
lamp	250W UHP / 2000 hours

Operating Environment

operating temperature	10° – 35° C
audible noise	38 dB (standard mode)
audible noise (whisper mode)	34 dB

Weight and Dimensions

dimensions	11.0 cm x 33.3 cm x 39.7 cm
weight	6.0 kg
aspect ratio	4:3
