15
connected and assigned IP address and other status, indicating that the SIM card has successfully accessed
the Internet.

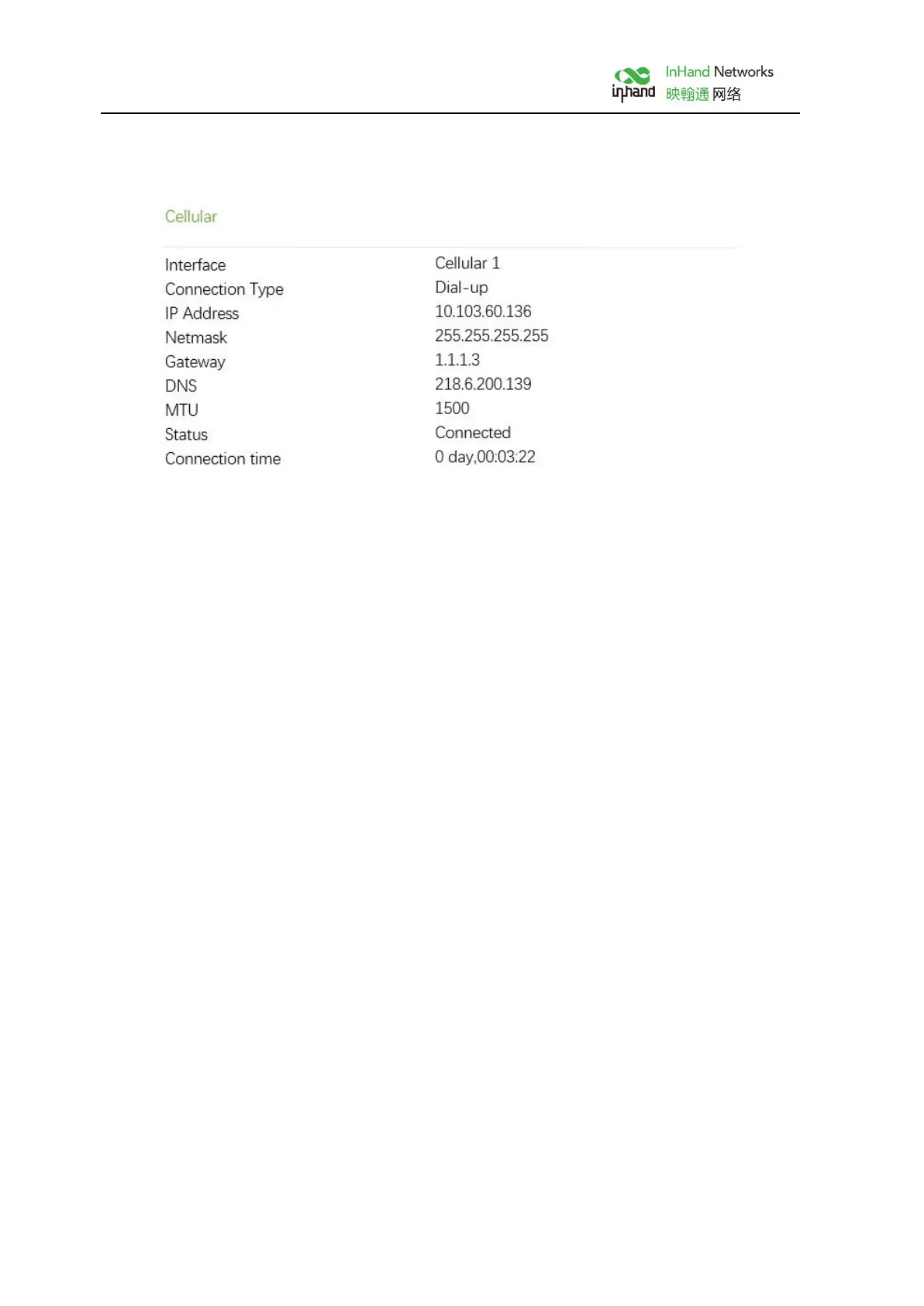

Figure 4-2-3 Dial-Up
4.3 WiFi to Internet
Step 1: WiFi the antenna to connect the WLAN antenna column, the network wire to the PC and insert the
power supply.
(Please refer to "4.1 Wired to Internet>> Step 1, Step 2" for login WEB interface)
Step 2: Set WiFi two working modes: AP
，
STA.
Mode 1: AP mode (initial default mode), the device acts as a wireless access point (Accsess Point) radiates
the wireless signal, the terminal device can be accessed through the connection AP. Ensure that the device
has been connected to the Internet through the above wired, cellular dialing mode. You can Set SSID name
and encryption authentication, k terminal connection password as your need.
