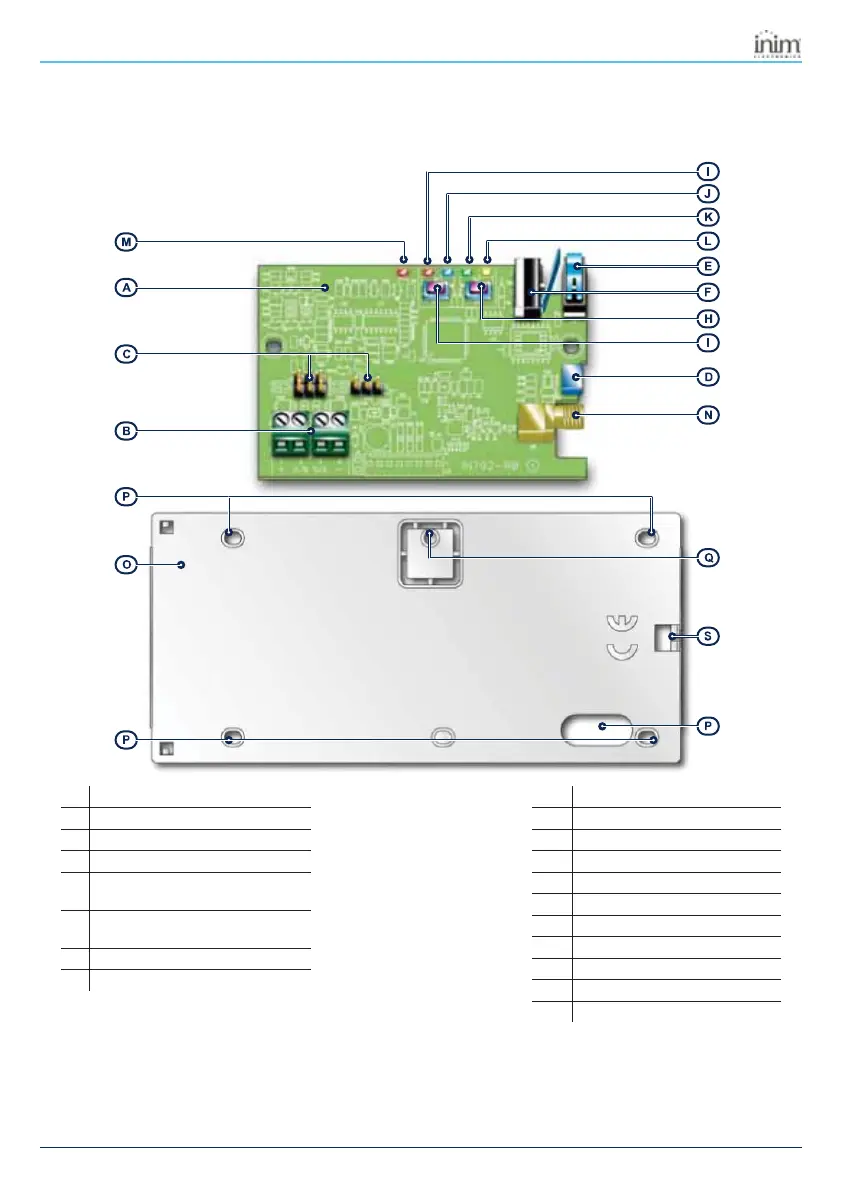

2.1 Description of parts
2.1 Description of parts
<">LJ
PCB board
<#>LJ
BUS connection terminals
<$>LJ
Configuration connectors
<%>LJ
USB-micro connector
<&>LJ
Tamper microswitch: Open
cover
<'>LJ
Tamper microswitch: Dis-
lodgement
<(>LJ
Button P1
<)>LJ
Button P2
<*>LJ
LED DL1 - red
<+>LJ
LED DL2 - blue
<,>LJ
LED DL3 - green
<->LJ
LED DL4 - yellow
<.>LJ
PRG LED - red
</>LJ
Antenna connector
<0>LJ
Backbox
<1>LJ
Mounting screw location
<2>LJ
Tamper-screw location
<3>LJ
Cable entry
<4>LJ
Enclosure screw hole
