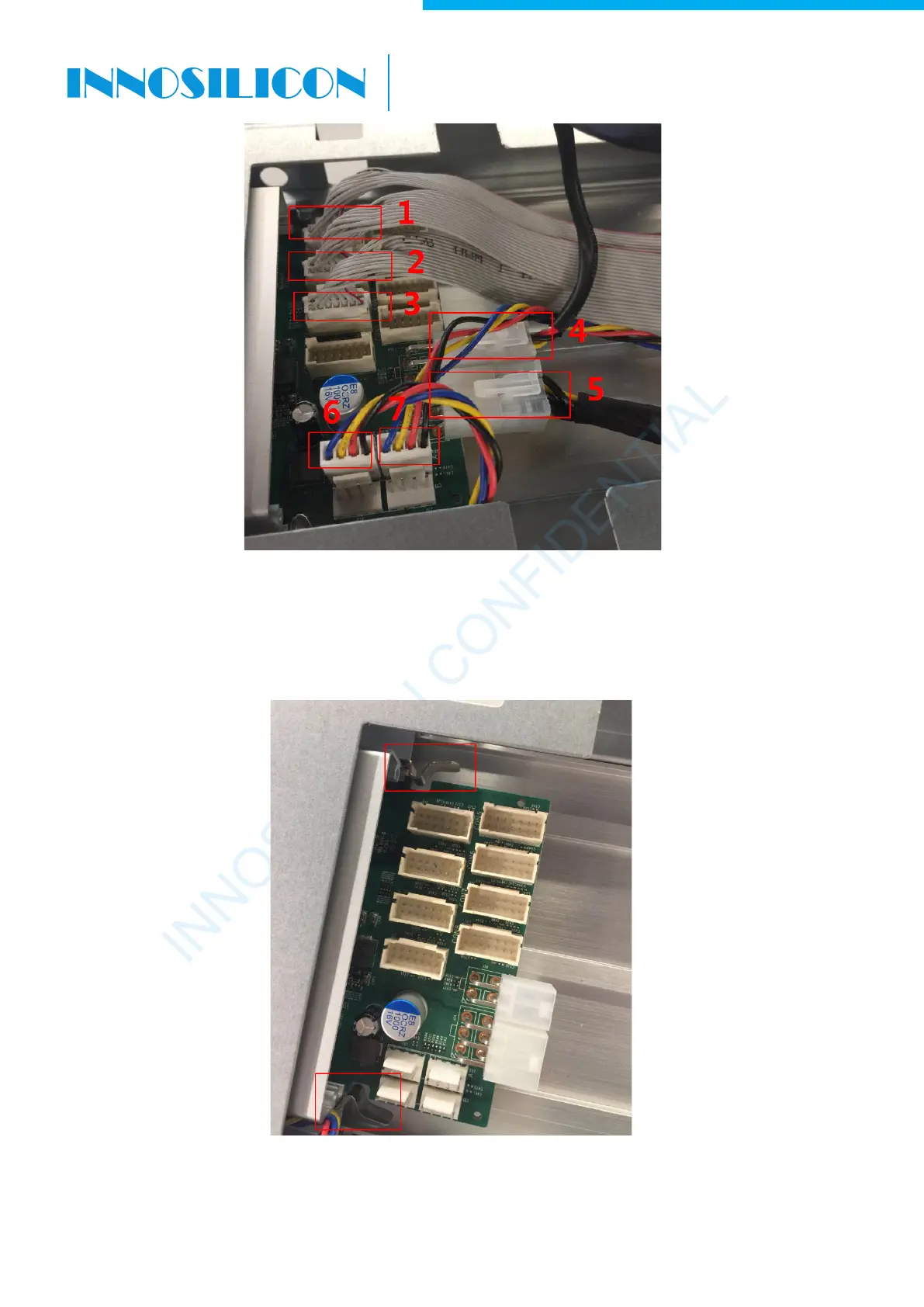

You will see the control board as below (Figure-6) after removing the connectors on control board,
then pull the metal card buckles to the outside of the control board ,and remove the control board
slowly.
Figure 6
At this point, the control boards and PSU are totally disassembled.
