Page #6 background imageLoading...
Page #6 background image
31
20
19
21
19
21
19
1
9
20
Right
Left
1
! Warnin
g
Front
Rear
8L
8R
9R
9L
31
31
31
12
54
54
34
Rubber Stopper
is facing out
20
21
21
32
32
32
32
Right
Left
1
! Wa rning
Rear
8L
8R
9R
9L
11R
11L
Front
1
11R&11L
facing each other

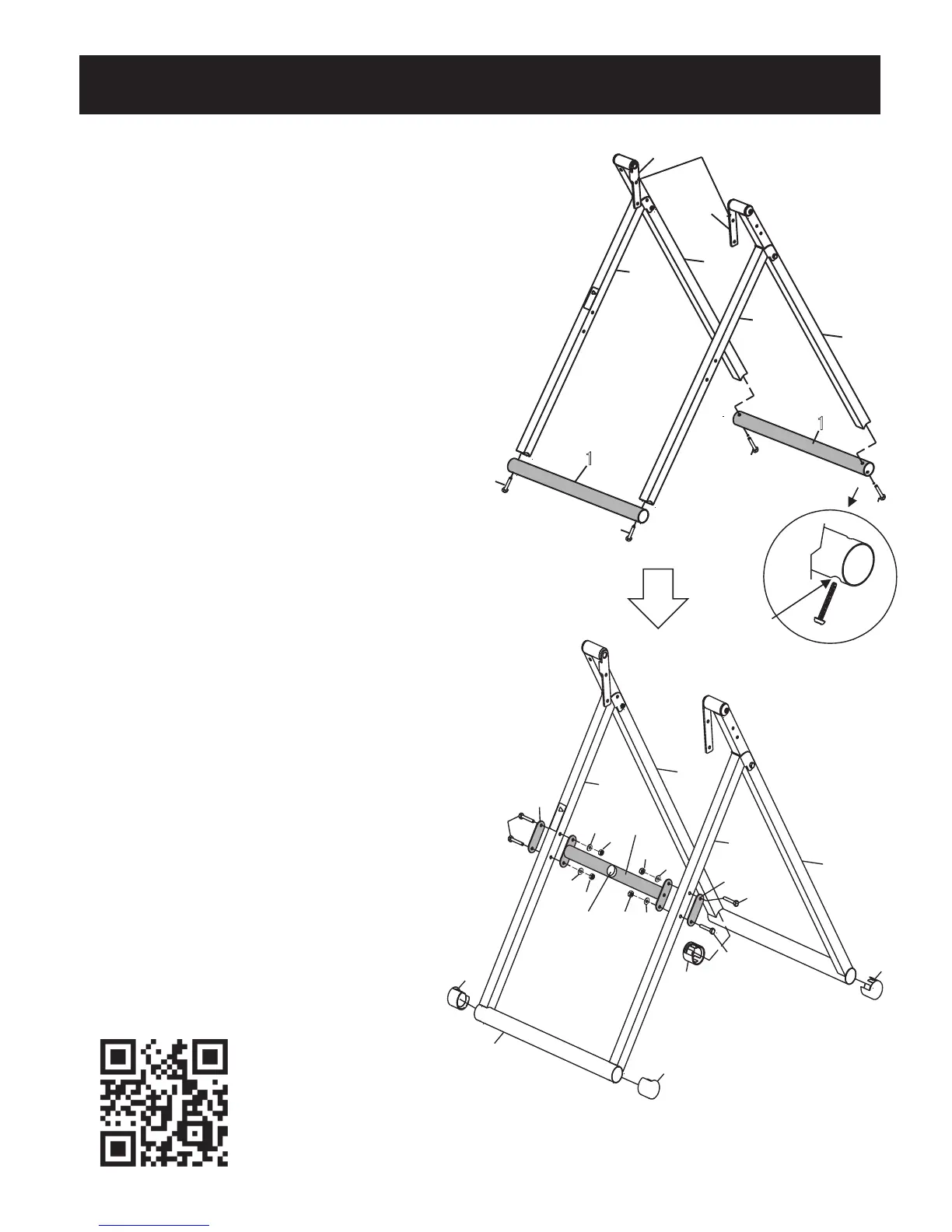

Step 1 Base Frame Assembly
6
Indented
hole
PLEASE NOTE:
RIGHT (R) Indicates right side while using the
inversion table, not facing it.
LEFT (L) Indicates left side while using the
inversion table, not facing it.
NUTS (21) are Lock Nuts. To tighten, you
need two wrenches.
Make sure the Rubber Stopper (34) on
the Cross Bar (12) is facing out and
attach the Cross Bar (12) to the Front
Base Frame (9R&9L) using 4 Bolts (20),
2 Metal Support Plates (54), 4 Washers
(19) and 4 Lock Nuts (21).
NOW Tighten all Bolts (32&20).
Insert 4 Base Frame End Caps (31) into
both Bottom Tubes (1).
Unfold the Front Base Frame (9R&9L)
from the Rear Base Frame (8R&8L) and
let it stand on the floor.
Lay the Right Base Frame (8R&9R) and
the Left Base Frame (8L&9L) on the floor
with the Connecting Brackets (11R&11L)
facing each other. Make sure the
indented holes on the Bottom Tubes (1)
are facing downward and attach one
Bottom Tube (1) to the Front Base Frame
(9R&9L) using 2 Bolts (32). Attach the
other Bottom Tube (1) to the Rear Base
Frame (8R&8L) using 2 Bolts (32).
DO NOT tighten Bolts (32) until the
Cross Bar (12) is attached.
Installation Guidance Video DOES NOT replace Owners Manual or any
information that can be found in the Owner’s Manual. Please be sure to read
the Owner’s Manual in its entirety.
https://youtu.be/vAXfHeDCFP0
