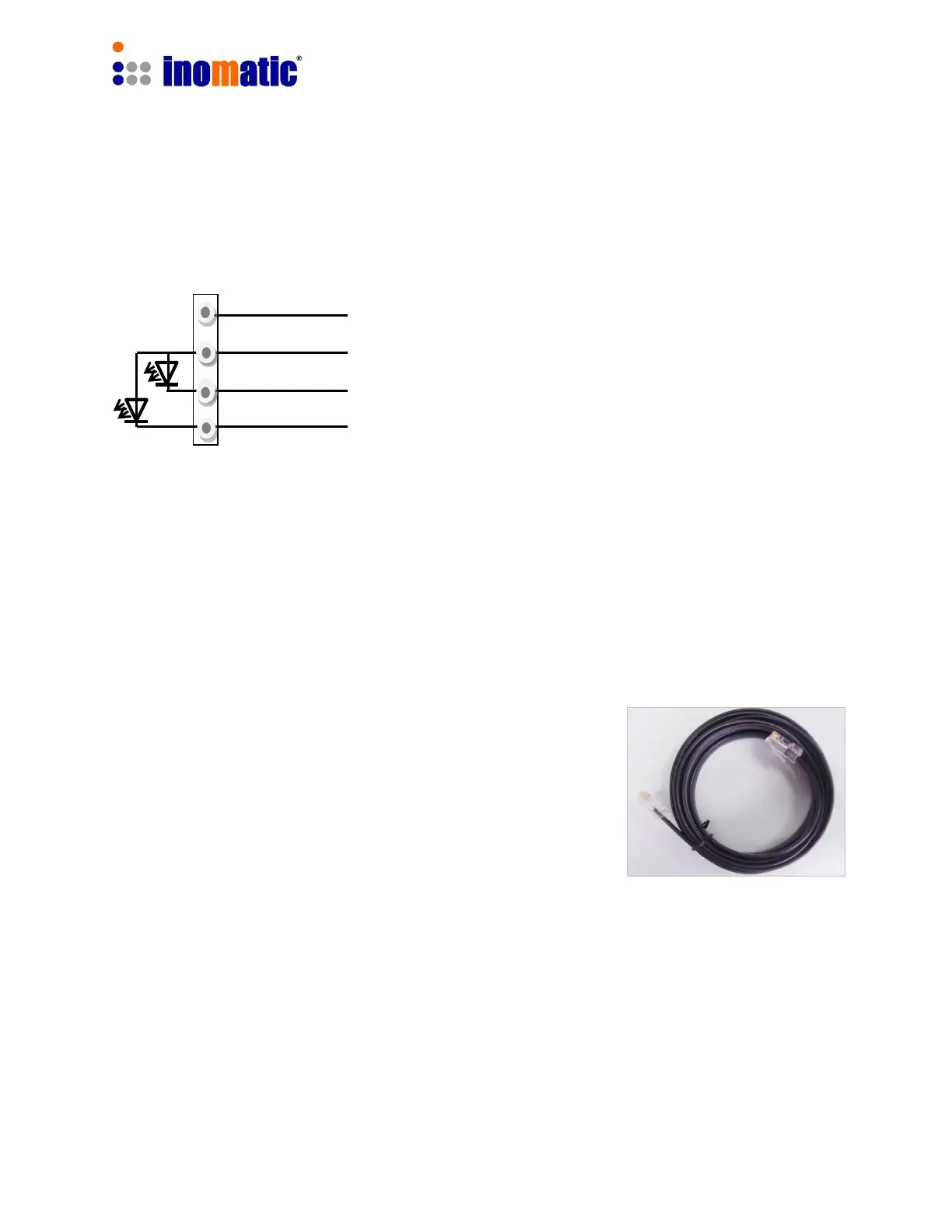

LED Light connector X4
The AM Pro-line V5 Receiver board allows the connection of a two color LED top-light.
GND
+12V
LED1 (ON-LED, active low)
LED2 (Alarm, active low)
Maximum current for LED1 and LED 2 is 200mA
2.4. RX-TX-Connection Cable AMCTR 710
The AMCTR 700 connection cable is supplied together with
the RX antenna. It connects the receiver board with the
processor board of the TX pedestal. Connect one end of the
cable to the RX board (X6) and the other end to the TX board
(RC1 or RC2).
To avoid noise capturing, the connection between the RX
and TX antenna should be as short as possible.
AMCTR 710 Connection Cable
