2.5. Dual Power Supply AMPSS 700V6 (50VDC, 43VAC)
The Dual power supply AMPSS700V6 is used for all our AM systems using V4, V6 or
V7 processor boards. It provides the power and the Synchronization signal to the
system electronics for maximum 2 TX antennas.
Technical specifications for AMPSS 700
Dimensions (L x W x H)
210 x 150 x 70 mm
Weight
3.0 kg
Input voltage / frequency / current
230VAC / 50/60Hz / 500mA
(on request 110VAC / 50/60Hz)
Mains inlet type
AC IEA with ON/OFF switch
Output voltage
50 VDC and 18VDC
Output cable
5x1mm
2
, 8m length. This cable can be
extended to 15m using a 3x1mm
2
cable or
thicker.
Temperature range
0 – 50C
Primary fuse (FP)
230VAC – 1A slow , 110VAC – 2A slow
Secondary fuses:
(Inside the housing)
F1 (50V, 3A), F2 (18V, 2A), F3 (18V, 2A)
F4 (50V, 2A), F5 (18V, 2A), F6 (50V, 2A)
X1
Power Processor board 1
L1
50VDC (LED red/blue)
L2
18VDC (LED red/blue)
X2
Power Processor board 2
L3
50VDC (LED red/blue)
L4
18VDC (LED red/blue)
If any LED lights “red” means the respective voltage is missing

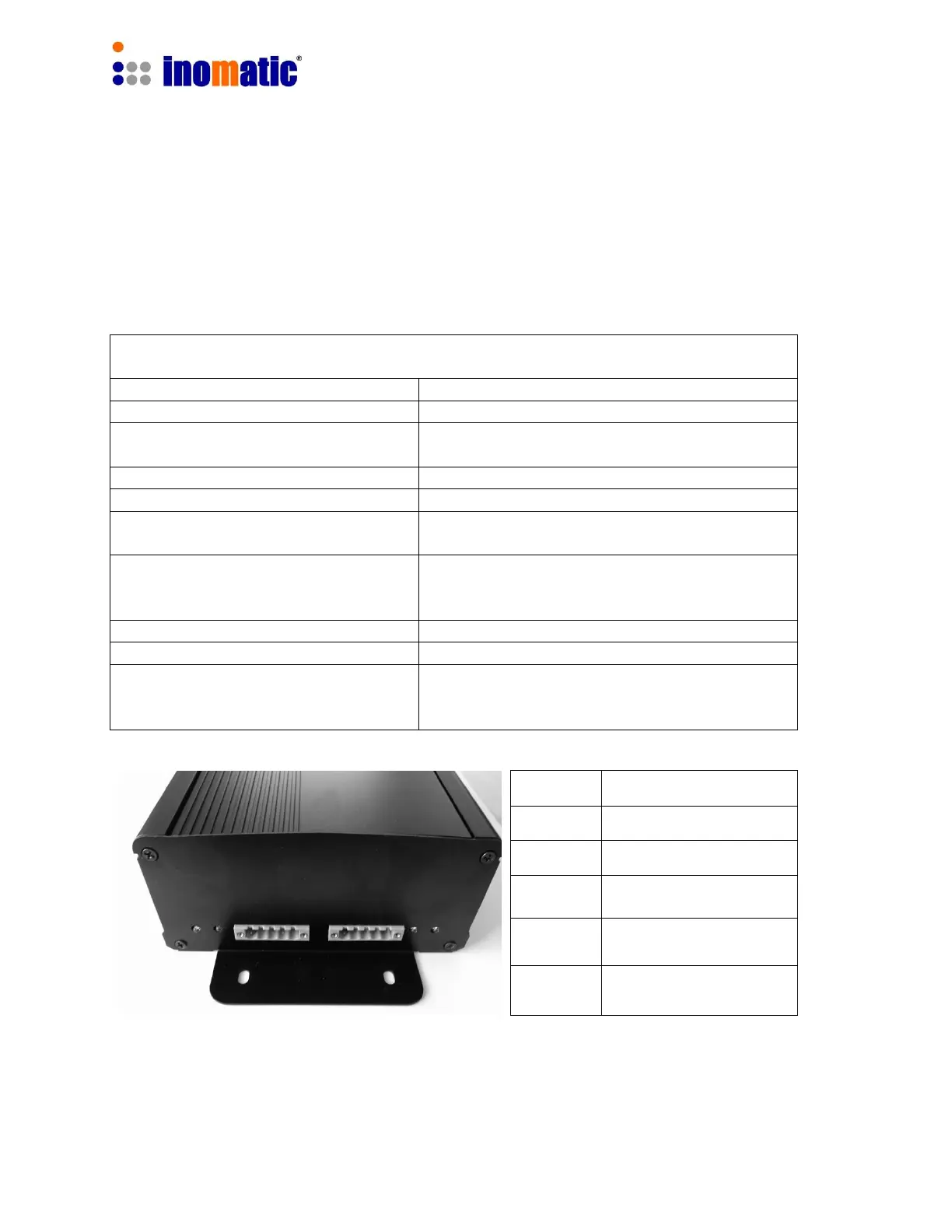

AMPSS 700 V6 power supply
L1 L2 X1 X2 L3 L4
