Indicator LED’s
LAN/SYNC LEDs
H11  LAN port ready  LED ON
H12  if LAN 2 is connected  LED ON
H13  If LAN 1 is connected  LED ON
H14  If the board has Internet access LED ON
H15  If sync pulse from power supply/ hardware sync  LED blinking
H16  If the board is set as Master  LED ON. If Salve  LED OFF
H17  LAN ok  LED blinking
H18  LAN ok  LED ON
Power LEDs
H19  12VDC power  LED ON
H20  5VDC power  LED ON
H21  3.3VDC power  LED ON

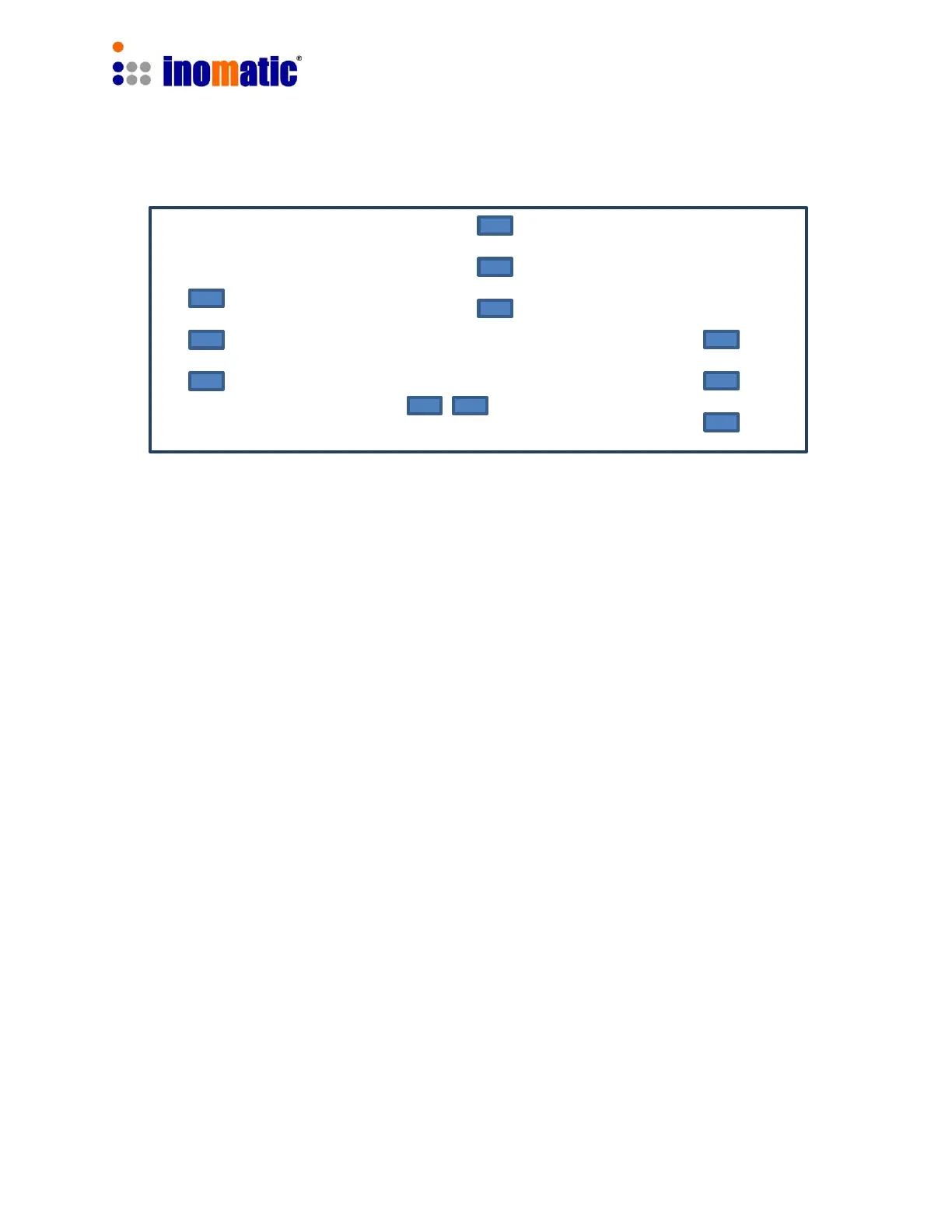

H11
H12
H13
H14
H15
H16
H19
H20
H21
H17 H18
