TV 32 ’’-70’’
70 Kg
VESA MAX 600x400 mm
ENGLISH GUIDE

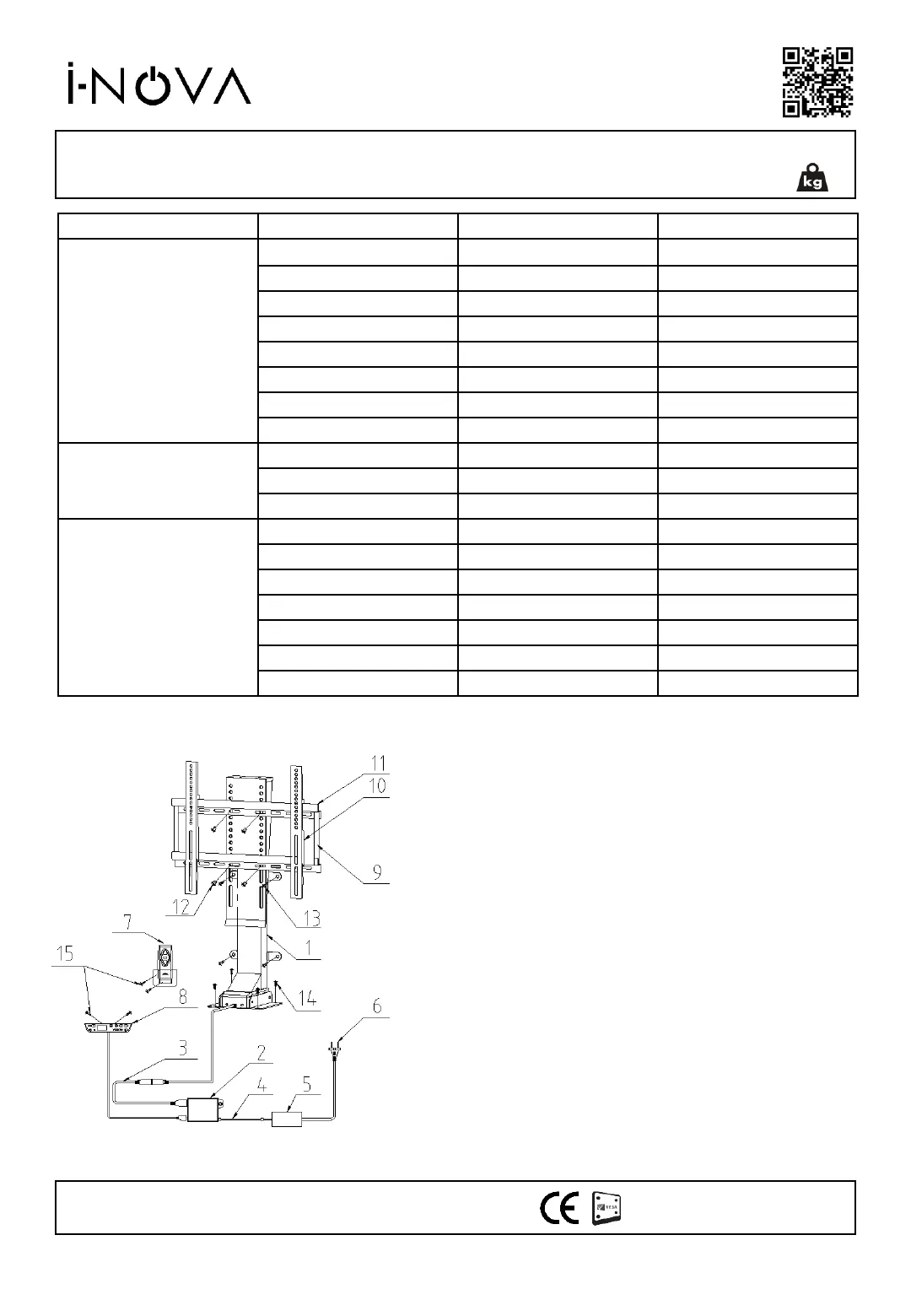

Section NO. PARTS Quantity
Control Section
1 Lift column 1
2 Control Box 1
3 Transit lineA 1
4 Transit line B 1
5 Power Adapter 1
6 Power line 1
7 Remote controller 1
8 Hand controller 1
Bracket Section
9 TV bracket connecting rod 2
10 TV bracket (vertical) 2
11 TV bracket (horizontal) 2
Accessory Package
12 Bolt + Nut M8x20 4
13 ST6x15 4
14 ST5x15 6
15 ST3x8 6
16 Tie 1
17 Wrench (6mm) 1
18 M6x10 4
X8 / X8B / X8S / X8SB / Z
inova-france.fr
contact@inova-france.fr
-5-
Specifications
Input: 110~240VAC
Output power: 24VDC
Load capacity: 70Kg
Max speed: 25mm/s
Stroke: 1000mm
Min install dimension: 820mm
Operation temperature: 0-40℃
Duty cycle: Max 10% or 2 min on and 18 min off
Compatible mount type : floor, cabinet
VESA : 200x100, 200x200, 400x200, 400x400, 600x400 mm
Attention: DO NOT install upside down(ceiling).
It will cause damage to the product and TV.
