Inovance ISMH4-75B30CB-U Z Series User Manual

3 Keypad and Display
3
- 35 -

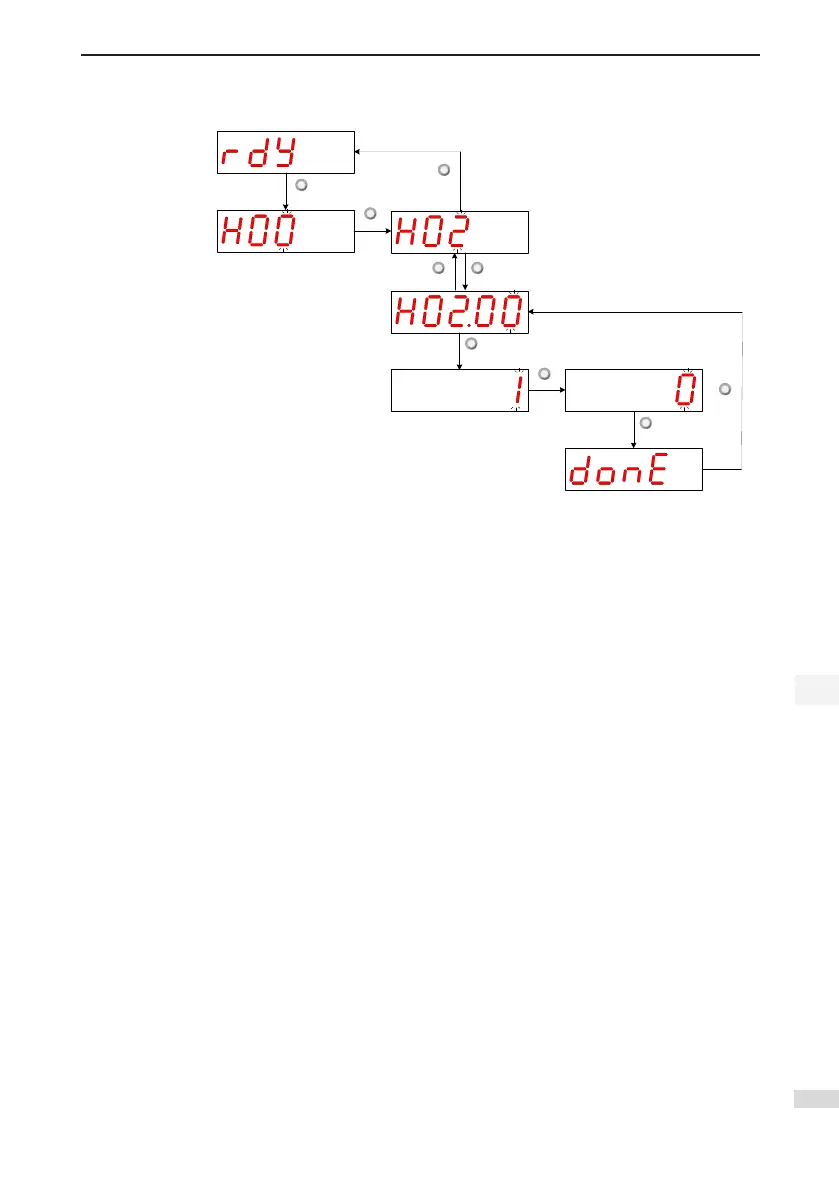

Figure 3-3 Keypad operation of parameter setting
Function code
group display
Function code
No. display
Parameter
value display
Parameter setting
completed
Servo status display
Servo ready
MODE
UP
DOWN
MODE
MODE SET
SET
SET
MODE
● MODE: Switch the display mode and return to the upper-level menu.
● UP/DOWN: Increase or decrease the value of the current blinking digit.
● SHIFT: Shifting the blinking digit.
● SET: Store the current setting value or switch to the next-level menu.
After parameter setting is completed, that is, "Done" is displayed, press key MODE to return to the
parameter group display (H02-00).
3.4 User Password
After the user password function (H02-30) is enabled, only the authorized user has the parameter setting
rights; other operations can only view the parameters.
Setting User Password
The following gure shows the operation procedure of setting the password to "00001".

Inovance ISMH4-75B30CB-U Z Series Specifications

General

Category	Controller
Rated Input Voltage	3-phase 380VAC
Rated Output Current	30A
Storage Temperature	-20°C to +60°C
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Communication Interface	CANopen
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overheating
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (derating above 1000m)
Model	ISMH4-75B30CB-U Z Series
Power Supply	3-phase 380VAC (-15% ~ +10%), 50/60Hz
