Line
Load
NOTE: Ground wire not shown to save
illustrative space.
NOTE: Bypass
connects directly
to the light fixture.
120V Power Source
(To the Light)
Option 2: Single-Pole Installation (Bypass Required)
A bypass is required if you are using a bulb that is under 25W. PLEASE NOTE: Most LED bulbs are only 8-12W, so you will need to
either have multiple bulbs or install a bypass (sold separately) as shown below. The bypass can get the required wattage down to
about 6W.
Line may also be black. Sometimes it’s designated with a
black piece of wiring tape, but sometimes it’s not. Please
purchase a multi-meter to check for your safety.
The bypass shown is from Aeotec. We’ve tested this
version and it works great. You can purchase this via our
website at: inovelli.com/azw001 or by searching for Aeotec
bypass on Amazon.
1.
2.
Load
Line/Hot
1
Romex Cable
Bypass
2
WIRING KEY
(Please see PRO-TIPS in Option 1 if necessary)
Line may also be black. Sometimes it’s designated with a
black piece of wiring tape, but sometimes it’s not. Please
purchase a multi-meter to check for your safety.
The bypass shown is from Aeotec. We’ve tested this
version and it works great. You can purchase this via our
website at: inovelli.com/azw001 or by searching for Aeotec
bypass on Amazon.
1.
2.
Load
Line/Hot
1
Romex Cable
WIRING KEY
(Please see PRO-TIPS in Option 1 if necessary)
ROMEX (BOX TO LIGHT)
ROMEX (TO LIGHT)
Line
Load
NOTE: Ground wire not shown to save
illustrative space.
120V Power Source
(To the Light)
Option 1: Single-Pole Installation (No-Bypass)
No bypass is required if you are using a bulb that is over 25W. PLEASE NOTE: Most LED bulbs are only 8-12W, so you will need to
either have multiple bulbs or install a bypass (sold separately) as shown in the, “Bypass Required” section.
ROMEX (BOX TO LIGHT)
ROMEX (TO LIGHT)
You will need to install a bypass (sold separately) if you want to use bulbs under 25W
You cannot use this switch in a 3-Way or any other multi-switch setting with a, “dumb” (existing) switch. You can use an auxiliary
(add-on switch made by GE or HomeSeer or use another Inovelli smart switch and see the site for installation instructions --
smart switch must be able to have the relay disabled). Please reach out for further explanation.
You will not be able to use the Energy Monitoring feature

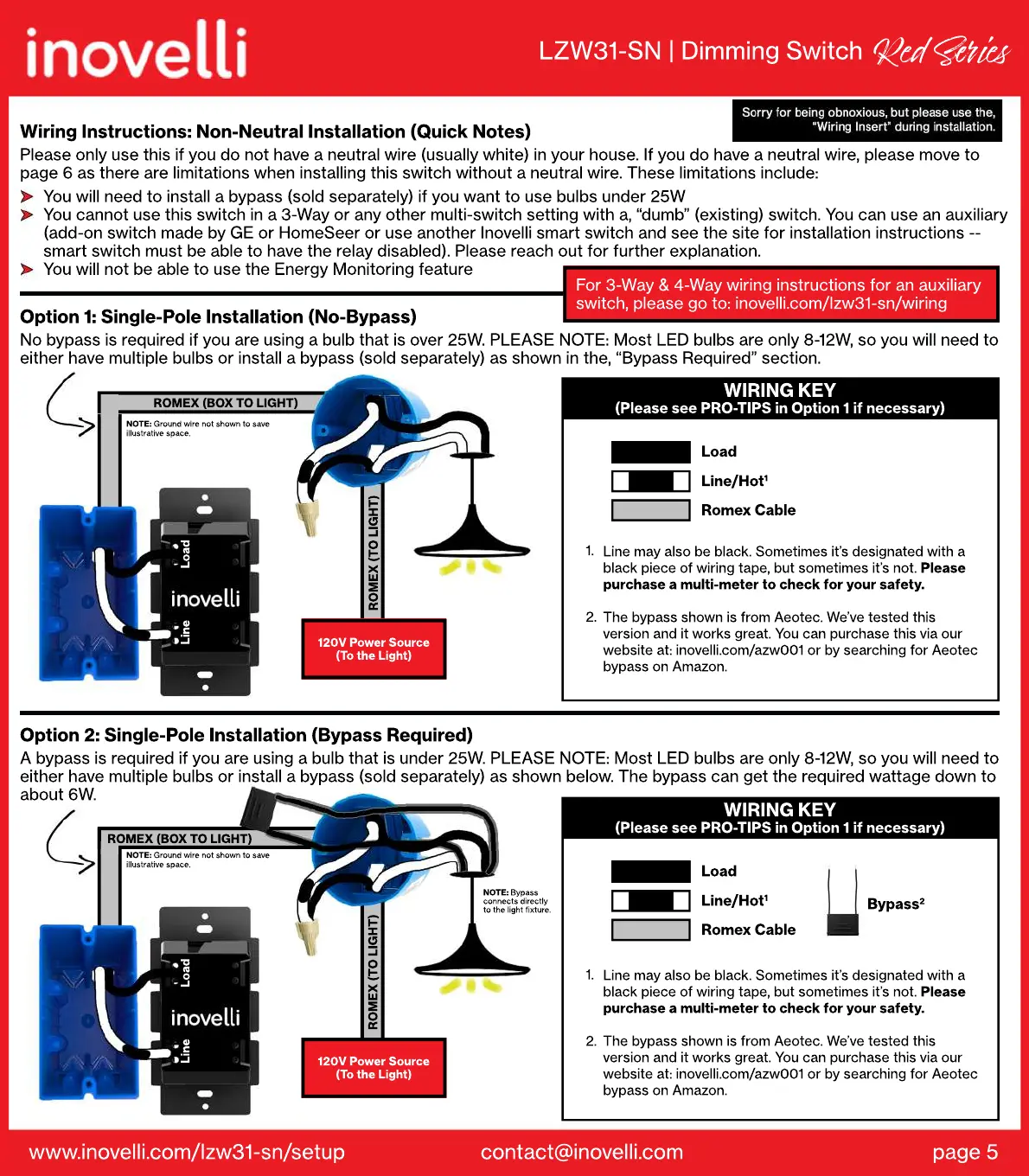

Wiring Instructions: Non-Neutral Installation (Quick Notes)
Please only use this if you do not have a neutral wire (usually white) in your house. If you do have a neutral wire, please move to
page 6 as there are limitations when installing this switch without a neutral wire. These limitations include:
For 3-Way & 4-Way wiring instructions for an auxiliary
switch, please go to: inovelli.com/lzw31-sn/wiring
LZW31-SN | Dimming Switch
