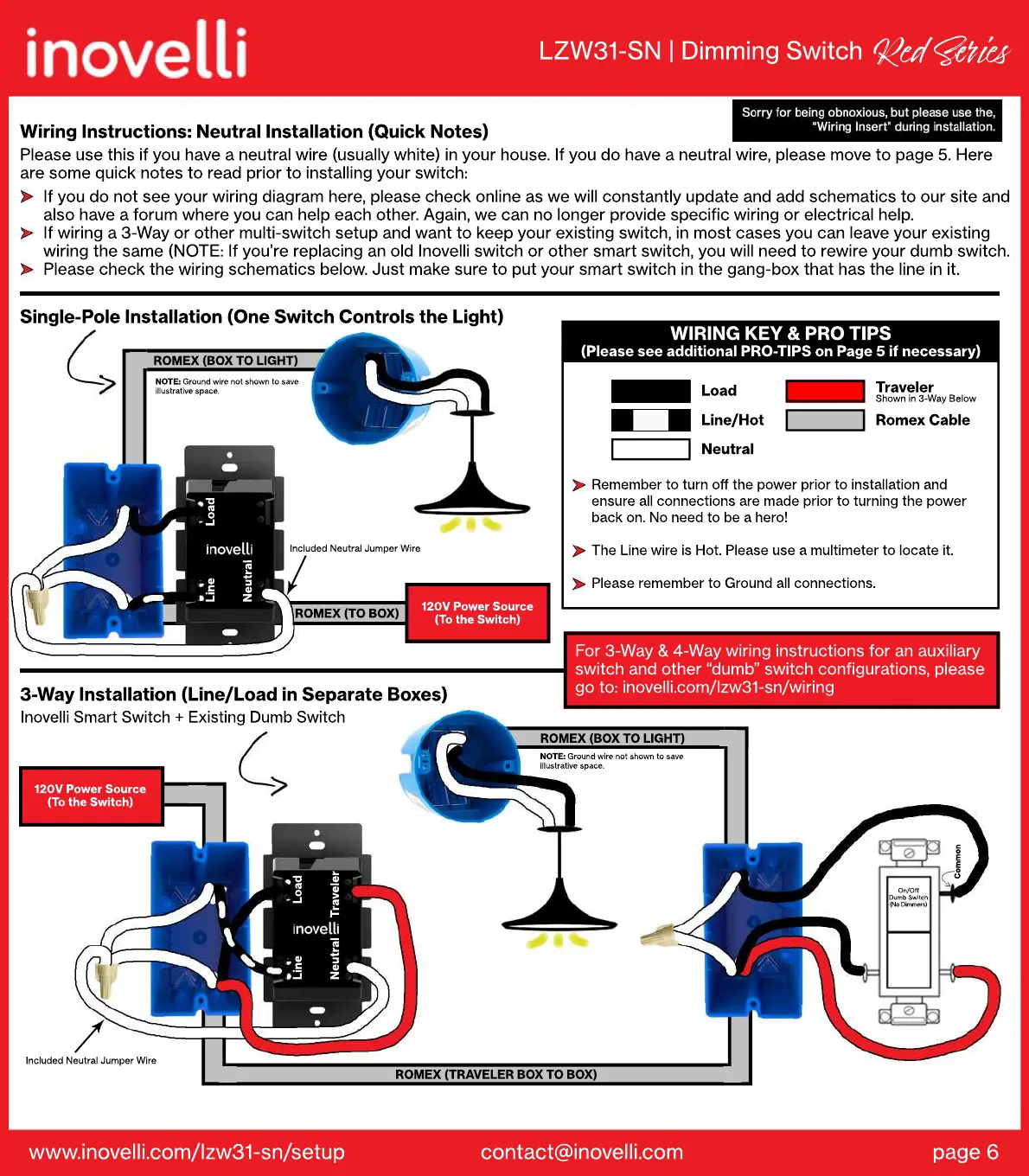

www.inovelli.com/lzw31-sn/setup contact@inovelli.com page 6
LZW31-SN | Dimming Switch
Red Si
NOTE: Ground wire not shown to save
illustrative space.
120V Power Source
(To the Switch)
Line
Neutral
Traveler
Load
Included Neutral Jumper Wire
On/Off
Dumb Switch
(No Dimmers)
Common
3-Way Installation (Line/Load in Separate Boxes)
ROMEX (BOX TO LIGHT)
ROMEX (TRAVELER BOX TO BOX)
Inovelli Smart Switch + Existing Dumb Switch
NOTE: Ground wire not shown to save
illustrative space.
120V Power Source
(To the Switch)
Line
Neutral
Load
Included Neutral Jumper Wire
Single-Pole Installation (One Switch Controls the Light)
ROMEX (BOX TO LIGHT)
ROMEX (TO BOX)
Load
Line/Hot
Neutral
Romex Cable
Traveler
Shown in 3-Way Below
Remember to turn off the power prior to installation and
ensure all connections are made prior to turning the power
back on. No need to be a hero!
The Line wire is Hot. Please use a multimeter to locate it.
Please remember to Ground all connections.
WIRING KEY & PRO TIPS
(Please see additional PRO-TIPS on Page 5 if necessary)
If you do not see your wiring diagram here, please check online as we will constantly update and add schematics to our site and
also have a forum where you can help each other. Again, we can no longer provide specific wiring or electrical help.
If wiring a 3-Way or other multi-switch setup and want to keep your existing switch, in most cases you can leave your existing
wiring the same (NOTE: If you’re replacing an old Inovelli switch or other smart switch, you will need to rewire your dumb switch.
Please check the wiring schematics below. Just make sure to put your smart switch in the gang-box that has the line in it.
Wiring Instructions: Neutral Installation (Quick Notes)
Please use this if you have a neutral wire (usually white) in your house. If you do have a neutral wire, please move to page 5. Here
are some quick notes to read prior to installing your switch:
For 3-Way & 4-Way wiring instructions for an auxiliary
switch and other “dumb” switch configurations, please
go to: inovelli.com/lzw31-sn/wiring
To Next Page
