Top Control Dishwasher

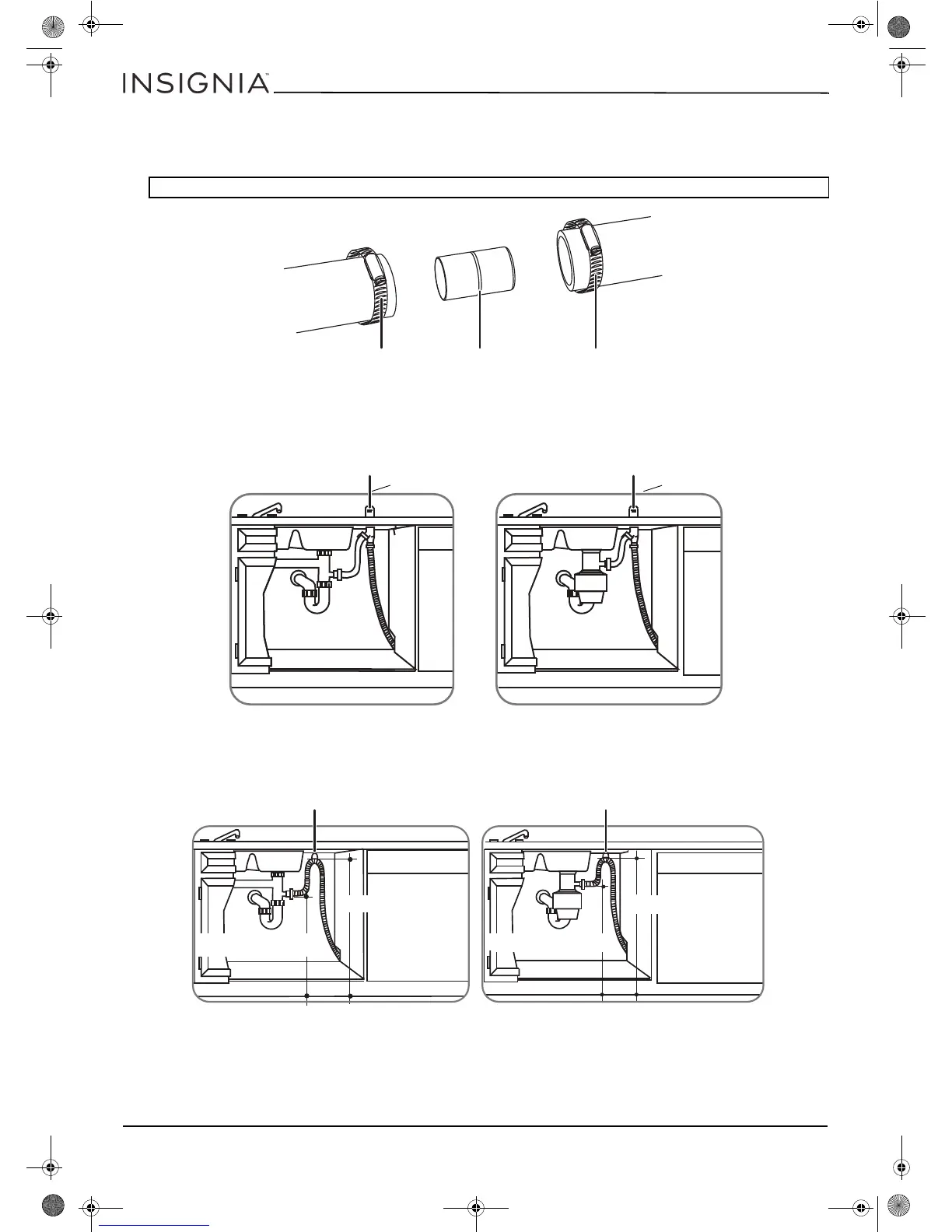

2 If a longer drain hose is required, you can add up to 42" (1.1 m) of length, for a total of 10 ft. (3.01 m) to the factory
installed hose. Use 5/8” or 7/8” inside diameter hose and a coupler to connect the two hose ends. Secure the
connection with screw-type hose clamps.
3 Secure the drain hose to the air gap, waste tee, or garbage disposal with a screw-type clamp, using the appropriate
method below. See “Drain preparation on page 6” on page 6, if you do not know which method to to use.
Method 1 - Air gap to a waste tee or garbage disposal.
Method 2 - High drain loop to a waste tee or garbage disposal
IMPORTANT: For proper drain operation, the total drain hose length must not exceed 10 ft. (3.01 m).
