Insignia NS-HF2007 - Step 29: Door Hinge Attachment

www.insigniaproducts.com
36
58" TV Gaming Stand
STEP 29:
You need:

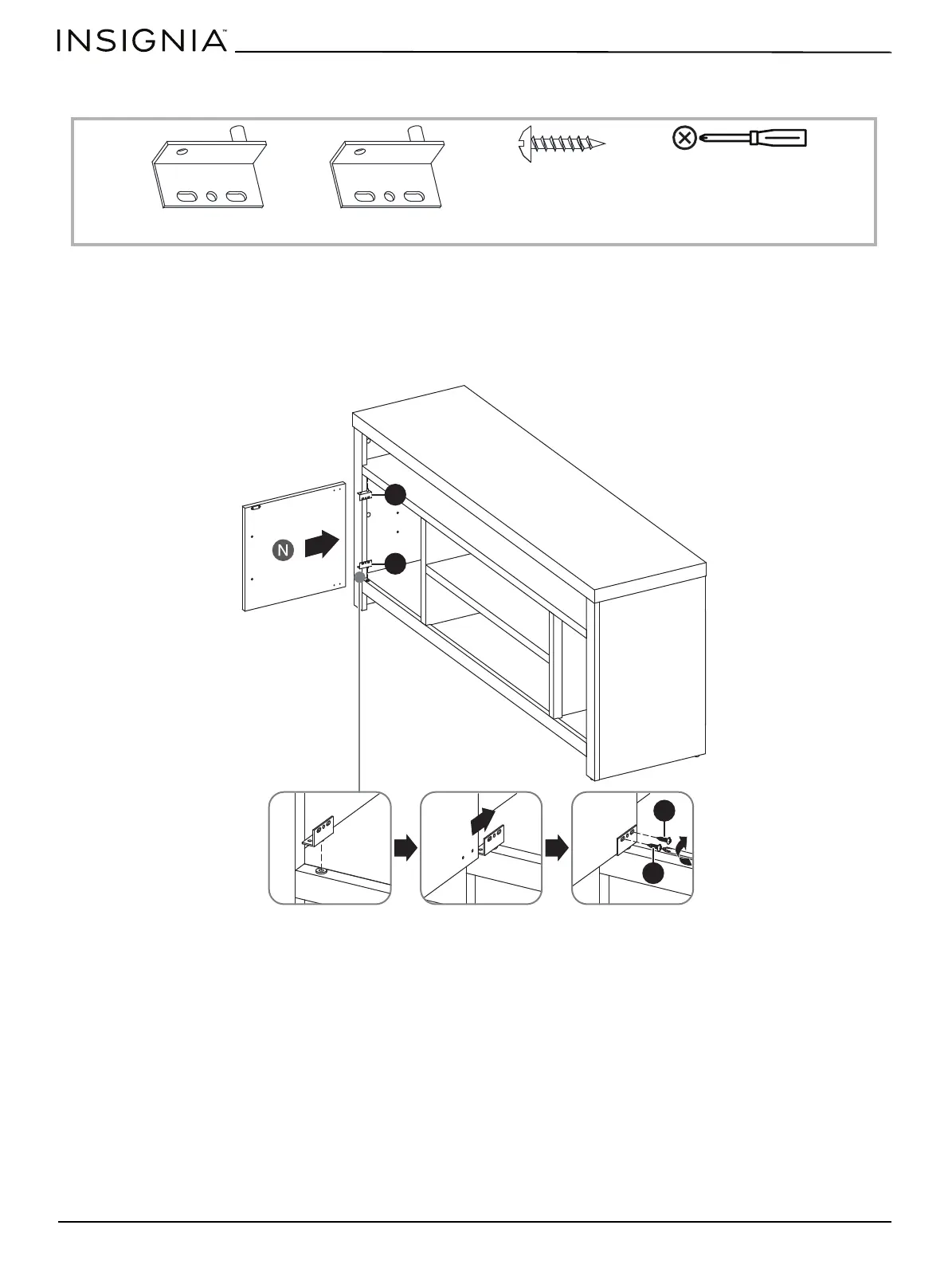

1 Insert the lower hinge pin (KK) into the pin hole on the left bottom of cabinet.
2 Insert the upper hinge pin (LL) into the pin hole on the left top of cabinet.
3 With the handle facing out, slide the door (N) onto the hinge pins that the screw holes on the door align with the holes
in the hinge pins.
4 Secure the door to each hinge pin with two 3 × 15 mm screws (FF) using a Phillips screwdriver.
KK Lower hinge pin (1)
LL Upper hinge pin (1)
FF 3 × 15 mm screw (4)
Phillips screwdriver
FF
FF
LL
KK
